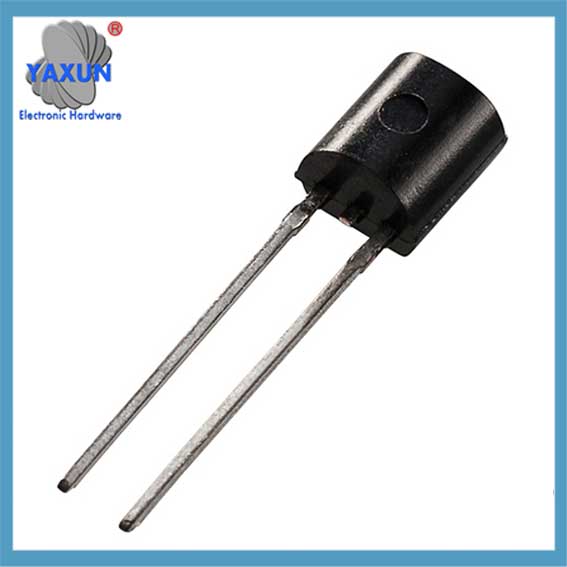

SOD70 KTY81 PTC temperature sensor

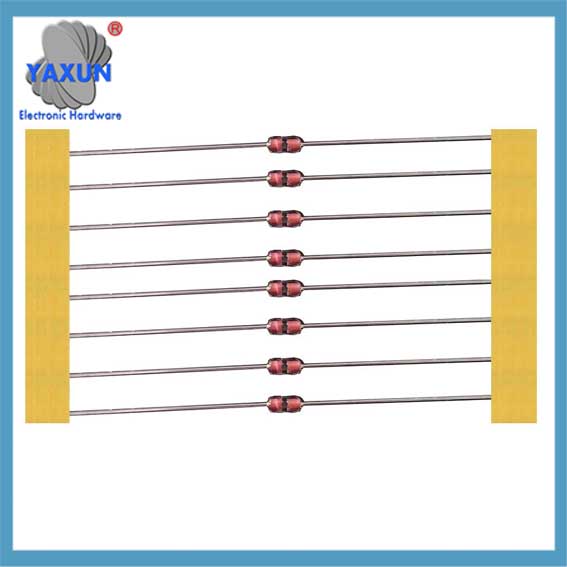

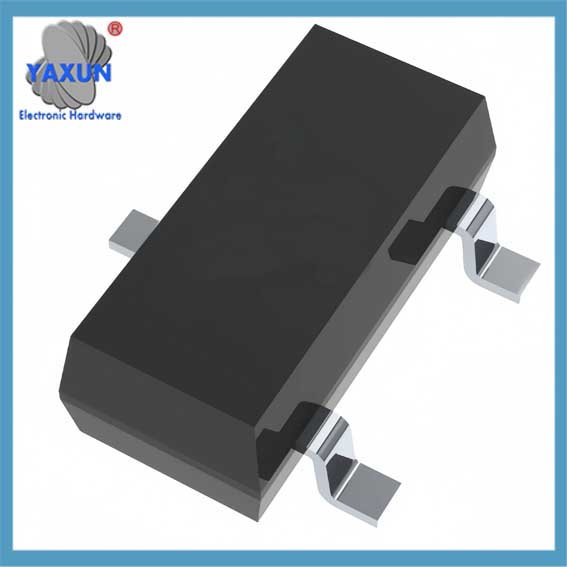

SOD68 KTY81, KTY82, KTY83, KTY84 Series PTC Linear Resistor

SOD68 (DO-34) KTY PTC Linear Resistor Temperature Sensor

In the realm of temperature sensing, the KTY series linear PTC thermistor stands out for its accuracy and reliability. This linear resistor, such as the KTY81/KTY83/KTY84-130, plays a crucial role in various industrial and consumer applications. Understanding their features and advantages can help engineers select the right components for their projects.

Looking for some parts alternative for them? Take a look at our different customizable KTY81 PTC Temperature Sensor.

Product Overview and Key Specifications of Linear Resistor PTC Thermistor
Linear Resistor increases resistance linearly with temperature, simplifying circuit design by eliminating the need for compensation. This makes the PTC Thermistor superior to traditional PTC polymer ceramic thermistors.

Simplified Circuit Design with KTY81/KTY82/KTY83/KTY84 -130
Unlike typical PTC Thermistor, which requires compensation due to non-linear resistance-temperature behavior, the KTY81/KTY82/KTY83/KTY84-130 maintains a linear relationship from -40°C to 300°C. This reduces complexity in temperature detection and compensation circuits, setting it apart from general PTC Thermistor, which are commonly used for overcurrent protection with narrow linear regions.

Flexible Integration and Circuit Design
Linear Thermistor with the same temperature coefficient, such as KTY84-130, can be connected in series or parallel without affecting its temperature-resistance characteristics. Zum Beispiel, a 1K 2000PPM Linear Resistor can be configured in series to form 2K 2000PPM or in parallel to create 500Ω 2000PPM. This flexibility supports optimized circuit experiments, data acquisition, and mass production.

Advantages of Linear Resistor KTY81/KTY82/KTY83/KTY84 Series
KTY series Linear Resistor offers several advantages that make it ideal for precise temperature sensing applications.

Precision and Accuracy
The Linear Resistor in the KTY series provides high-accuracy temperature measurement, with deviations typically within 1% Zu 5%. This level of precision is essential for applications requiring reliable temperature monitoring.

Excellent Stability
One of the main advantages of the KTY series PTC Thermistor is its long-term stability. It experiences minimal temperature drift over time, making it ideal for use in environments where consistent performance is critical.

Linear Resistance Response
Unlike standard thermistors, the KTY Linear Thermistor shows a linear increase in resistance as temperature rises. This characteristic simplifies the circuit design, ensuring a predictable response across various temperature ranges.

Durable and Robust Design
The KTY81/KTY82/KTY83/KTY84 and other KTY series KTY Linear Resistor are designed to withstand harsh environmental conditions. Their robust construction ensures they remain reliable even under stress, making them suitable for a wide range of applications.

Compact and Easy to Integrate
The KTY series comes in small, standardized packages. This compact design allows for easy integration into a variety of systems without sacrificing performance.

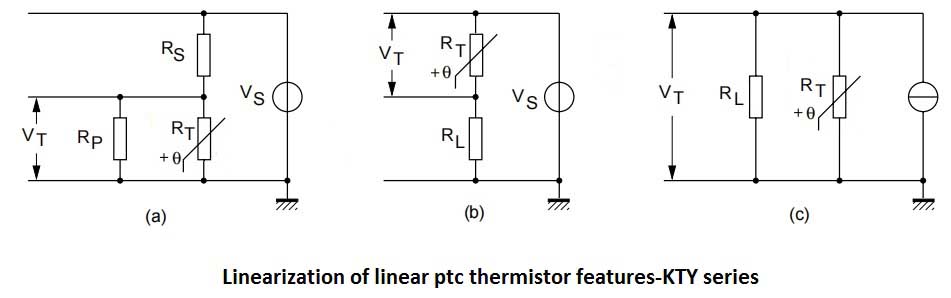

Linearization of linear ptc thermistor features-KTY series electric circuit

(A)There are series’ RS ‘and parallel thermistors’ RP’ and the system is powered by a constant voltage source.
(B) Thermistor RT in series with the linear ptc thermistor and system powered by constant voltage source.
(C) Parallel a thermistor ‘RT’ to the linear ptc thermistor.

Spezifikationen	Resistance（Ω）at25℃		Accuracy	Nennstrom	Maximum current
	Mindest	Max		Itype	Imax
	Mindest	Max		(mA)	(mA)
KTY83-200	200		±1%~±5%	5	8
KTY83-500	500		±1%~±5%	5	8
KTY83-550	550		±1%~±5%	5	8
KTY83-600	600		±1%~±5%	5	8
KTY83-1000	1000		±1%~±5%	5	8
KTY83-1200	1200		±1%~±5%	5	8
KTY83-1400	1400		±1%~±5%	5	8
KTY83-1600	1600		±1%~±5%	5	8
KTY83-2000	2000		±1%~±5%	5	8
KTY83-4000	4000		±1%~±5%	5	8
KTY83-4500	4500		±1%~±5%	5	8
KTY83-110	990	1010	±1%	5	8
KTY83-120	980	1020	±1%	5	8
KTY83-121	980	1000	±1%	5	8
KTY83-122	1000	1020	±1%	5	8
KTY83-150	950	1050	±5%	5	8
KTY83-151	950	1000	±2.5%	5	8
KTY83-152	1000	1050	±2.5%	5	8
KTY81-110	990	1010	±1%	5	8
KTY81-120	980	1020	±1%	5	8
KTY81-121	980	1000	±1%	5	8
KTY81-122	1000	1020	±1%	5	8
KTY81-150	950	1050	±5%	5	8
KTY81-151	950	1000	±2.5%	5	8
KTY81-152	1000	1050	±2.5%	5	8
KTY81-210	1980	2020	±1%	5	8
KTY81-220	1960	2040	±2%	5	8
KTY81-221	1960	2000	1%	5	8
KTY81-222	2000	2040	±1%	5	8
KTY81-250	1900	2100	±5%	5	8
KTY81-251	1900	2000	±2.5%	5	8
KTY81-252	2000	2100	±2.5%	5	8
KTY82-110	990	1010	±1%	5	8
KTY82-120	980	1020	±1%	5	8
KTY82-121	980	1000	±1%	5	8
KTY82-122	1000	1020	±1%	5	8
KTY82-150	950	1050	±5%	5	8
KTY82-151	950	1000	±2.5%	5	8
KTY82-152	1000	1050	±2.5%	5	8
KTY82-210	1980	2020	±1%	5	8
KTY82-220	1960	2040	±2%	5	8
KTY82-221	1960	2000	1%	5	8
KTY82-222	2000	2040	±1%	5	8
KTY82-250	1900	2100	±5%	5	8
KTY82-251	1900	2000	±2.5%	5	8
KTY82-252	2000	2100	±2.5%	5	8
KTY84-130	970(at100℃)	1030(at100℃)	R100=±3%	5	8
KTY84-150	950(at100℃)	1050(at100℃)	R100=±5%	5	8
KTY84-151	950(at100℃)	1000(at100℃)	R100=±2.5%	5	8
KTY84-152	975(at100℃)	1025(at100℃)	R100=±2.5%	5	8
