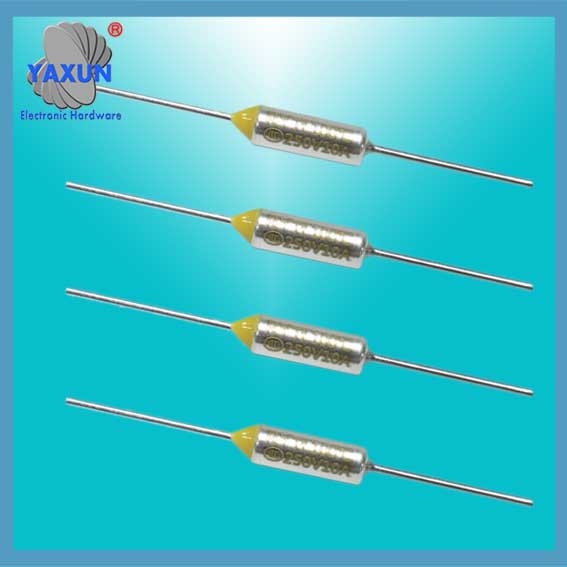

LÖWE, FARBSTOFF, Panasonic, SWC-Limiter-Thermosicherung
Das in LEAO verwendete Schmelzmaterial, FARBSTOFF, Panasonic, SWC-Thermosicherungen spielen eine entscheidende Rolle für die Leistung von Thermosicherungen und sind eine der Kernkomponenten des gesamten Geräts. Entsprechend den Eigenschaften des Schmelzmaterials, wir können sie in zwei Kategorien einteilen: niedriger Schmelzpunkt und hoher Schmelzpunkt.
The fuse materials used in LEAO, FARBSTOFF, Panasonic, SWC thermal fuses include copper, Aluminium, iron and other elements, and copper is one of the most widely used materials. Copper fuses can be quickly melted when the current is overloaded due to their excellent conductivity, solid texture, good oxidation resistance and high temperature resistance. Thus, electrical equipment is effectively protected and electrical safety is ensured.
Das in LEAO verwendete Schmelzmaterial, FARBSTOFF, Panasonic, SWC-Thermosicherungen spielen eine entscheidende Rolle für die Leistung von Thermosicherungen und sind eine der Kernkomponenten des gesamten Geräts. Entsprechend den Eigenschaften des Schmelzmaterials, wir können sie in zwei Kategorien einteilen: niedriger Schmelzpunkt und hoher Schmelzpunkt. Low melting point materials represented by tin and lead are usually made into the thickest cross-sectional shape because of their easy melting and relatively large resistivity characteristics, so the amount of metal vapor generated during the melting process is relatively large. These specific properties make this type of material more suitable for thermal fuse structures with lower breaking capacity. Auf der anderen Seite, high melting point materials, such as copper and silver, are more suitable for making smaller cross-sectional sizes because they are not easy to melt and have relatively low resistivity. Zusätzlich, relatively less metal vapor is generated during the melting process, so this type of material is more suitable for use in thermal fuse designs that require high breaking capacity.
Betriebstemperaturbereich:
SF type is 73 ℃ ~ 240 ℃, SM type is 76 ℃ ~ 187 ℃. There are various products with a rated current of 0.5A to 15A. Safety certifications include: UL, CSA, VDE, BEBA, PSE, JET, CQC … Zertifikate. Comply with EU ROHS environmental protection directive requirements. NEC temperature fuse has the function of detecting abnormal temperature and cutting off the circuit. It can detect abnormal temperature rises of household or industrial electrical products and quickly and timely cut off the circuit, which can prevent the fire from being unburned.
NEC thermal fuse is a component that provides very reliable protection in over-temperature conditions. It has small volume, großer Überstrom, non-reset, stabile leistung, convenient installation, and has a range of humidity settings and carrying capacity to choose from to meet customer application requirements.
Produkte sind weit verbreitet in:
Various motors, Kopierer, Faxgeräte, HID-Vorschaltgeräte, Vorschaltgeräte für Leuchtstofflampen, Transformer, Ladegeräte, Akkupacks, Heizgeräte, elektrische Bügeleisen, hot air blowers, Elektroherde, Reiskocher, elektrische wasserkocher, Kaffeemaschinen, Ventilation fans, elektrische Ventilatoren, elektrische Nähmaschinen, Wasserkocher, Leistungswandler, power plug sockets, Kühlschränke, Klimaanlagen, automotive air conditioners, Meter, Ausrüstung, usw. are over-temperature protected.
LE series (15A)
Produktmerkmale
Using temperature fuse metal casing and sense temperature organic particles.
Belonging unrecoverable type thermal fuses. Temperature fuse melting off, even if the surrounding temperature falls, it will not be turned on.
No lead (Pb) and cadmium (Cd), and comply with RoHS.
REACH does not contain the specified 46 categories SVHC (SVHC).

Ceramic thermal fuse

NEC SF-Thermosicherung

DYE thermal fuse

LEAO thermal fuse
Product Size
Kabellänge | Abmessungen (mm) | ||||
A | B | C | D | E | |
Standard LE | 4.0±0,1 | 20±3 | 10.1±3 | 35±3 | 1.0±0,1 |
Long LE(L) | 4.0±0,1 | 38±3 | 10.1±3 | 35±3 | 1.0±0,1 |
Modell | Rated temperature | Operating temperature | Nennstrom | Nennspannung | maintaining the temperature | Maximum temperature limit |
LE070 | 73 | 71±2 | 15.0 | AC250 | 50 | 150 |
LE073 | 77 | 74±2 | 15.0 | AC250 | 50 | 150 |
LE080 | 84 | 80±2 | 15.0 | AC250 | 50 | 150 |
LE090 | 94 | 91+3/-2 | 15.0 | AC250 | 65 | 150 |
LE095 | 99 | 95±2 | 15.0 | AC250 | 71 | 150 |
LE108 | 113 | 109±2 | 15.0 | AC250 | 85 | 150 |
LE117 | 121 | 117±3 | 15.0 | AC250 | 95 | 160 |
LE124 | 128 | 124±3 | 15.0 | AC250 | 102 | 160 |
LE128 | 133 | 129+3/-2 | 15.0 | AC250 | 105 | 160 |
LE138 | 142 | 138±3 | 15.0 | AC250 | 110 | 160 |
LE152 | 157 | 152±2 | 15.0 | AC250 | 130 | 175 |
LE169 | 172 | 167±2 | 15.0 | AC250 | 145 | 190 |
LE189 | 192 | 189±3 | 15.0 | AC250 | 165 | 300 |
LE213 | 216 | 213±2 | 15.0 | AC250 | 190 | 300 |
