Littelfuse 01530009Z Mini-Flachsicherungshalter, vertikale Klemmen-Leiterplattenmontage

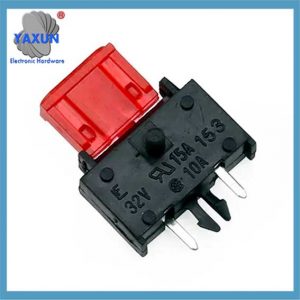

Littelfuse 01530009Z Vertical Terminal Block Stackable Mini Blade Fuse Holder PCB Mount. The Fuse Holder has standoffs to accommodate board washing and incorporates a unique board lock anchor to maintain a firm mechanical bond to the PCB. Sicherungshalter 15 A 32V 1 Circuit Blade Through Hole from Littelfuse/Commercial Vehicle Products.

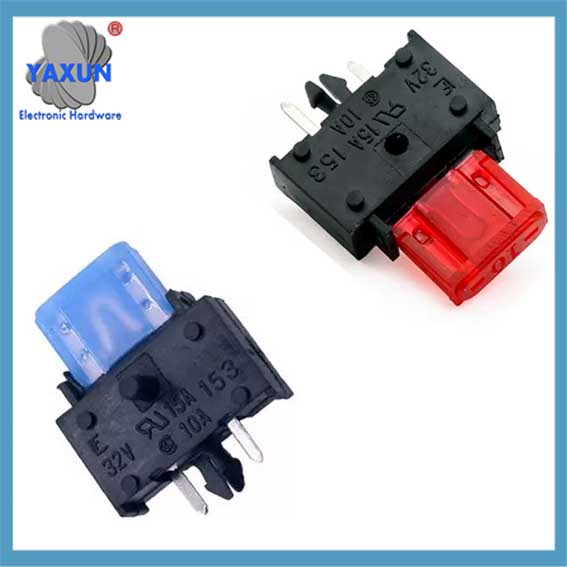

MINI@ 153-PC Series 32V PCB 01530009Z FUSE HOLDER BLADE

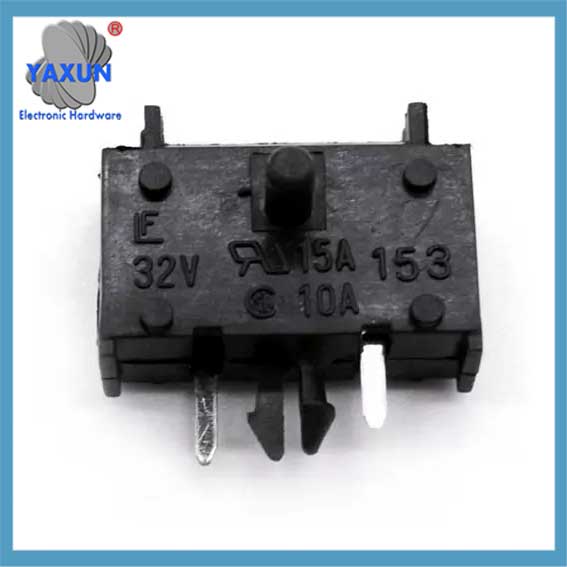

Sicherungshalter für Leiterplattenmontage für MINI-Flachsicherung, 15A, 32V

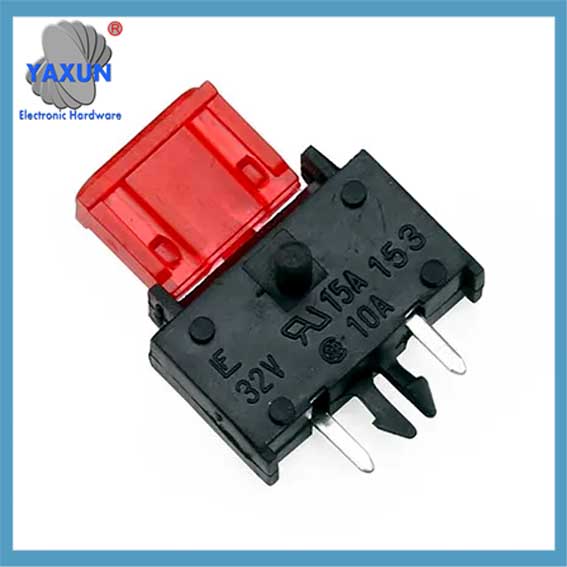

Vertikaler Klemmenblock Mini stapelbarer Flachsicherungshalter für Leiterplattenmontage 01530009Z

Artikelname:	Stackable Blade Fuse Holder	Mount-Typ:	Leiterplatte
Terminaltyp:	Vertical	Nennspannung:	32In DC
Aktuelle Bewertung:	15A	Angewendet auf:	Mini Blade Fuses
RoHS-konform:	Ja	Körper:	Thermoplastic UL 94V-0
Terminal:	Messing, Verzinnt
Hohes Licht:	01530009Z PCB Mount Mini Blade Fuse Holder

Produktbeschreibung
01530009Z PCB Fuse Holder for Mini Blade Fuse with Vertical Terminal 01530009 Stackable Fuse Holder
Produktbeschreibung
This type of PCB Fuse Holder brings the reliability and availability of the plug-in 32V mini fuses to the circuit boards. Vertical and horizontal mounting are available. It has “standoffs” to accommodate board washing and incorporates a unique “board lock” anchor to maintain a firm mechanical bond to the PCB.

Artikel	01530009 Sicherungshalter
Montage	Leiterplatte
Material	Thermoplastic UL 94V-0, Messing aus Dose
Terminals	horizontal
Zertifizierung	UL CSA
Körperfarbe	Schwarz
Körperlänge	17.3 mm
Body Width	12.9 mm
Body Thickness	7.6 mm

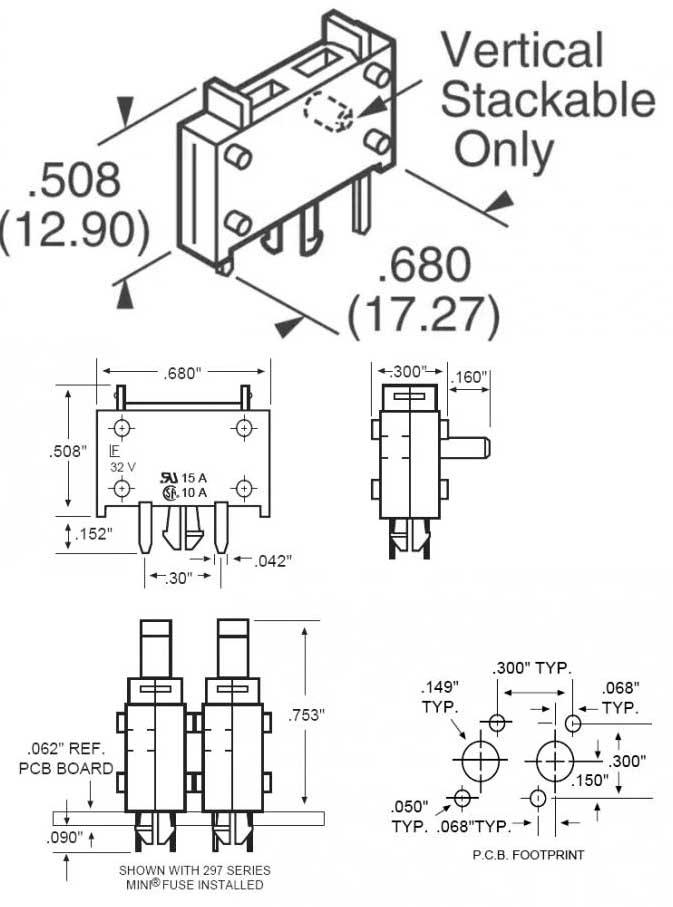

Drawing of 01530009Z Blade Fuse Holder Stackable

Spezifikation für Flachsicherungen

Typ	Teilenummer	Dimension Lx Wx H	Common ratings (maximum current)
Mikro2	GEEIGNET, ATR	9.1×3.8×15.3 mm	5A 7.5A 10A 15A 20A 25A 30A
Mikro3	ATL	14.4×4.2×18.1 mm	5A 7.5A 10A 15A
niedriges Profil	APS, ZU	10.9×3.81×8.73 mm	2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A
Mini	APM, Geldautomat	10.9×3.6×16.3 mm	2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A
Regulär	APR, ATC, ATO, ATS	19.1×5.1×18.5 mm	1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A
Maxi	APX	29.2×8.5×34.3 mm	20A 25A 30A 35A 40A 50A 60A 70A 80A 100A

Farben & Bewertungen

Farbe	Aktuelle Bewertung
Schwarz	1 A
Grau	2 A
Violett	3 A
Rosa	4 A
Bräunen	5 A
Braun	7.5 A
Rot	10 A
Blau	15 A
Gelb	20 A
Transparent	25 A
Grün	30 A
Blaugrün	35 A
Orange	40 A
Rot	50 A
Blau	60 A
Bernsteinfarben/braun	70 A
Transparent	80 A
Violett	100 A

Anwendungen
Auto, Boot, LKW, SUV, Motorrad, usw.

Versandbedingungen:
EXW, DDU, DDP, C&F, FOB

Versandarten:
Express, Auf dem Luftweg, Auf dem Seeweg
Q1: What are your main products?
A1: Sicherungen, fuse holders, Thermoschalter, circuit breakers
Q2: How long is your delivery time?
A2: It depends on your qty. Most of the items are available within 15 Tage.
Q3: How can I get a sample? Is that for free?
A3: You are always welcome for requesting samples. Most of the samples are free of charge. But you will have to bear the express cost.
Q4:How can I get a more competitive price?
A4:Usually our quotation is made based on the order qty. You need to increase your qty if you demands lower prices.We can’t sacriface the quality for lower pricing and profit.
Q5:How do you control your quality system?
A5: We have enough number of QC staff at every stage from adopting materials, productionion, packing to loading, They are on for 7/24.
Q6:How long is your warranty period?
A6: Normally you will have 1-year warranty for most of our products.
