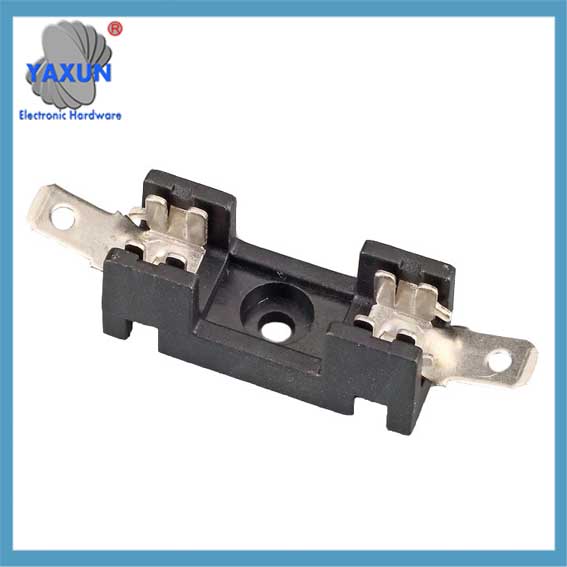

JKL COMPONENTS 2910F-42 FESTOON HOLDER, LE-0603-02 LAMP Fuse Holder

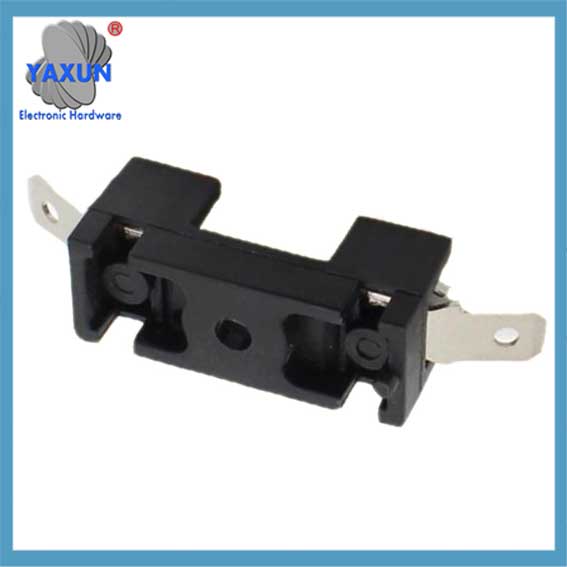

6X30mm 6.35X31.8mm PCB Mount Fuse Holder

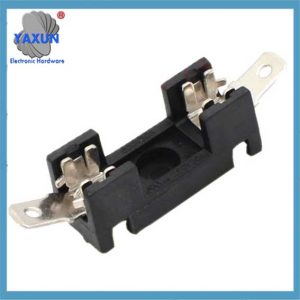

UL 600V 30A Fuse Holder PCB Mount for 6-30 fuses

Artikelname:	Sicherungshalter	P/N:	H3-67
Mount-Typ:	PCB Mount	Elektrische Bewertung:	600V 30A /300V 30A
Körperlänge:	35.4mm	Body Width:	13.8mm
Height:	14.5mm	Mounting Hole:	Dia 4mm
Fuse Size:	6.3×30 6.3×32	Genehmigung:	UL
Körpermaterial:	PBT	Terminalmaterial:	Nickel Plated Brass
Terminal Width:	6.4mm	Terminaldicke:	0.8mm

Produktbeschreibung

UL 600V 30A Fuse Holder PCB Mount for 6*30 fuses

Produktbeschreibung

Artikelname	H3-67 Fuse Holder
Mount-Typ	Leiterplatte
Max Rating	30A 600V
Body Color	Schwarz
Körpermaterial	PBT 94V-0
Terminalmaterial	nickel plated brass
Körperlänge	35.4 mm
Body Width	13.8 mm
Height	14.5 mm
Mounting Hole Diameter	4.0 mm
Total Length	57 mm
Terminal Width	6.4 mm
Terminaldicke	0.8 mm

Teile-Nr.: H3-67
Applicable fuse: 6x30mm
Suitable for PCB Mounting
Ambient temperature: – 40°C~125°C
Flame Retardant Grade: UL 94V-0

This 6×30 pcb fuse holder is compatible with 6.3x30mm glass or ceramic fuses for overcurrent protection in electronic equipments, appliances, and lighting circuits. It has 6.4mm faston terminals.

It is easy to install it on the printed circuit boards.

Rating: 25A/250V AC, 30A/300V AC

Isolationswiderstand : DC 500V 100mOhm Min

Voltage breakdown: AC 1500V minute

Fuse size: 6 x 30mm

Drawing of the UL 600V 30A Fuse Holder PCB Mount for 6*30 fuses

Please allow 1-3mm tolerance due to manual measurement.
