Littelfuse 0PTF0075P PCB Green Fuse Holder 6.3A 250V 1 Circuit Cartridge Through Hole

Littelfuse 0PTF0075P Fuse Ø5x20mm , raster 22.6mm, – 6.3A 250V 6A Green. by OEM. BTF5-012 is PCB Fuse Holder. The fuse box is 15mm pitch panel mount size and using for 5x20mm glass/ceramic fuse. Shop our latest Holders for Appliance Fuses offers.

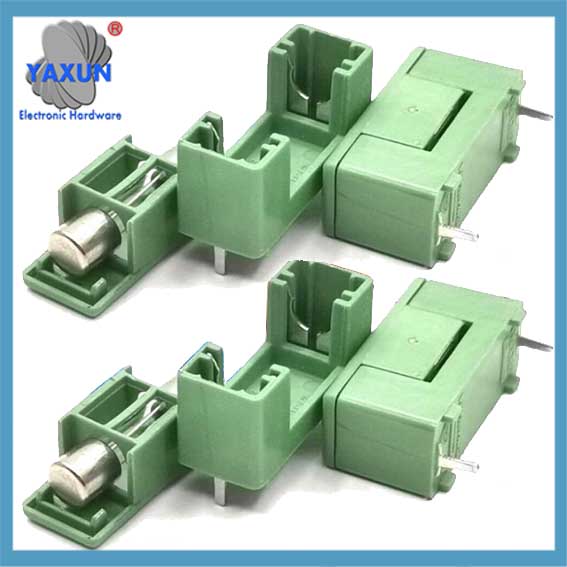

5×20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance

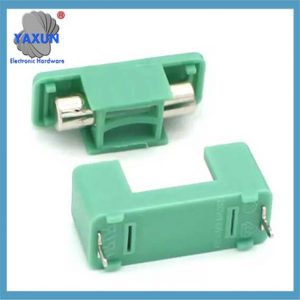

Littelfuse Inc. 0PTF0078P Fuse Block 1 Circuit Cartridge Through Hole

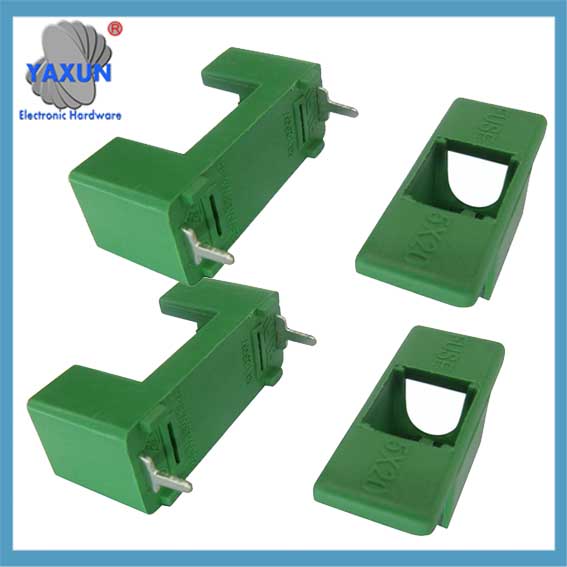

RND 170-00188 – Sicherungshalter 5 X 20 mm 100MOhm 250V 6.3A Green Polyamide 6 Leiterplatte, RND

Artikelname:	Green Fuse Holder , Sicherungsblock	P/N:	PTF-78, BTF5-012
Montageart:	PCB Fuse Holder	Ur:	250V
Und:	6.3A	Körperlänge:	24.4mm
Pin Distance:	22.6mm	Suitable For:	5×20 Fuses
RoHS-konform:	Ja	Body:	PA66, UL 94V-0
Terminal:	Tin Plated Brass	Max Temperature:	260°C
Power:	1.6W
Hohes Licht:	5×20 PCB Fuse Holder, VDE PCB Fuse Holder, 250 Volt Fuse Holder

Produktbeschreibung

UL VDE 5×20 PCB Fuse Holder 22.6mm Pin Distance Fuse Block UL94V-0 250V 6.3A

Produktbeschreibung

Artikelname	Sicherungshalter für Leiterplattenmontage
Part No.	PTF-78, BTF5-012
Elektrische Bewertung	6.3A 250V
Body Color	green
Körpermaterial	PA66 94V-0
Terminal material	tinned brass
Länge	24.4mm
Wdth	9.4mm
Height	10.5mm
Pin Distance	22.6mm
Pin Length	3.5mm
Pin Thickness	0.5mm

Electrical Characteristics:
Nennstrom:6.3A
Nennspannung: 250Vac
Power: 1.6W
Kontaktwiderstand: <5mΩ
lnsulation Resistance: >100mΩ
Spannungsfestigkeit: >1000Vac/60sec.
Operation temperature: -10C~120C
Solder dwell time: <10S (Wave Soldering)

This pcb mount fuse holders is compatible with 5x20mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They are used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits. They are easy to install on the printed circuit boards.

Drawing of the PTF-78 fuse holder

Please allow 1-3mm tolerance due to manual measurement.
