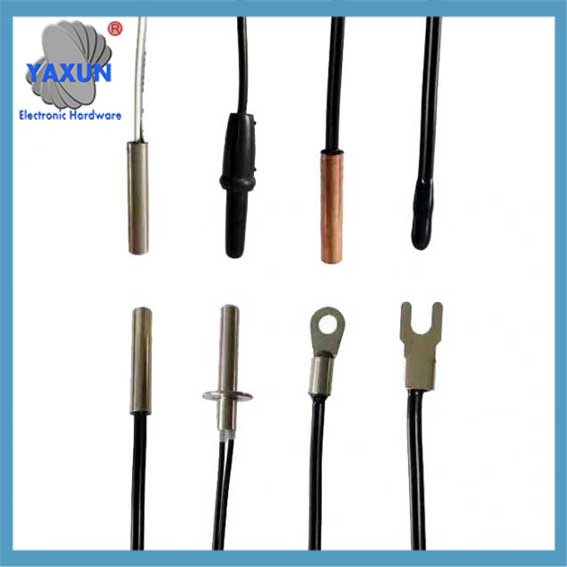

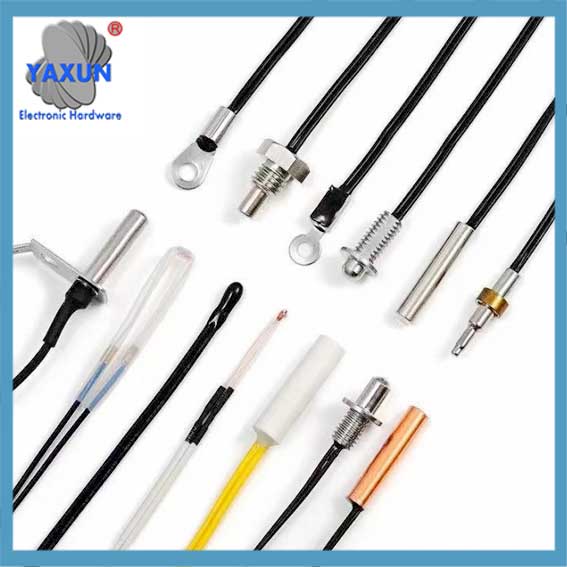

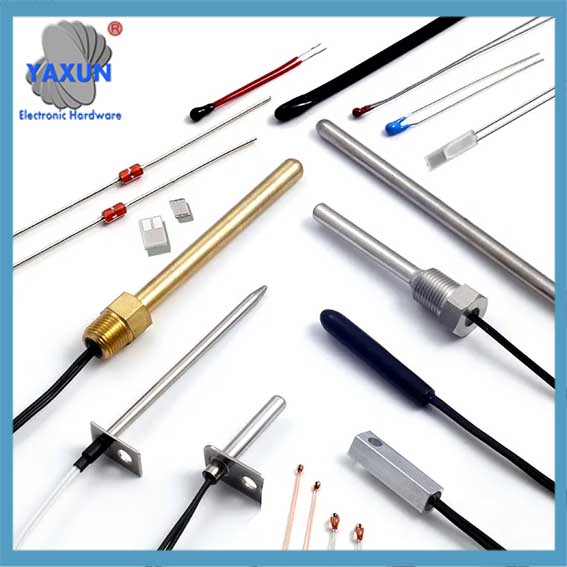

NTC Thermistor Sensor Water Temperature Measurement using EPCOS NTC thermistor
1k, 2k, 2.7k, 3k, 5k, 10k, 15k, 20k, 30k, 40k, 47k, 50k, 100k, 200k ohm; B25/50: 3950 3435 3977K thermistor probe ntc temperature Measurement sensor using EPCOS NTC thermistor. NTC Thermistors sensor provide voltage and noise suppression as well as temperature measurement and compensation in automotive applications. These thermistors sensor probe feature multilayer NTC with inner electrodes, nickel barrier termination, and superior resistance temperature Measurement stability during soldering.
1k, 2k, 2.7k, 3k, 5k, 10k, 15k, 20k, 30k, 40k, 47k, 50k, 100k, 200k ohm; B25/50: 3950 3435 3977K thermistor probe ntc temperature Measurement sensor using EPCOS NTC thermistor. NTC Thermistors sensor provide voltage and noise suppression as well as temperature measurement and compensation in automotive applications. These thermistors sensor probe feature multilayer NTC with inner electrodes, nickel barrier termination, and superior resistance temperature Measurement stability during soldering.
Beschreibung
TYPE: | NTC | B25/50: | 3950K 3977K |
Sensor Head: | O Ring, Fork Metal, Injected Tube, NPT, M16, | Wire: | CL2 PT4,#24 2466,#28 1332 |
Verwendung: | Temperatursensor, Instant Water Heaters, 3D Printer Parts | Pn (rated Power): | 50mw |
Hohes Licht: | EPCOS NTC thermistor Sensor, 3977K NTC Temperature Sensor, Thermistor Water Temperature Probe |
5K 10K 50K 100K TDK Resistor NTC Thermistor Temperature Sensor Waterproof Probe Wire 1M Customized Theory Signal Output Origin.
Specification Name | Scope | Detection Condition |
R25(nominal resistance value) | 1k, 2k, 2.7k, 3k, 5k, 10k, 15k, 20k, 30k, 40k, 47k, 50k, 100k, 200k | Constant temperature 25℃±0.05℃ |
R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25℃±0.05℃ |
B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25℃±0.05℃
Constant temperature 85℃±0.05℃ |
B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25℃±0.05℃
Constant temperature 50℃±0.05℃ |
∫(dissipation coefficient) | ≥0.8mw/℃ | Static in the air |
T(thermal time constant) | ≤25S | Static in the air |
Ta(Working temperature) | -30℃~+120℃ | |
Pn (rated power) | 50mw | within working temperature |
Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client’s drawing | |
Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client’s request. | |
Terminal | Can be riveted according to the requirements of various terminals |
Services
1. Your inquiry will be replied within 24 Std.;
2. Well-trained and experienced staff are always at your service.
3. Unique design products and many private mold product are waiting for your choice.
4. Strictly protect your private information and your ideas of design.
FAQ
Q1. Can I have a sample order for NTC, PT100,PT1000, RTDs, and Ds18b20 SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
