NTC thermistor sensors probe used in Electric Heater
NTC thermistor sensors design is focused on the heater requirements control with 3 Meter PVC Cover Cable and widely used in dry and high temperature environments. UL recognized models available upon request.
NTC thermistor sensors design is focused on the heater requirements control with 3 Meter PVC Cover Cable and widely used in dry and high temperature environments. UL recognized models available upon request. Their electrical resistance decreases with increasing temperature. This resistance is processed by an electronic circuit to provide temperature measurement. The thermistor itself does not provide any control over heating elements, relays, usw.
|

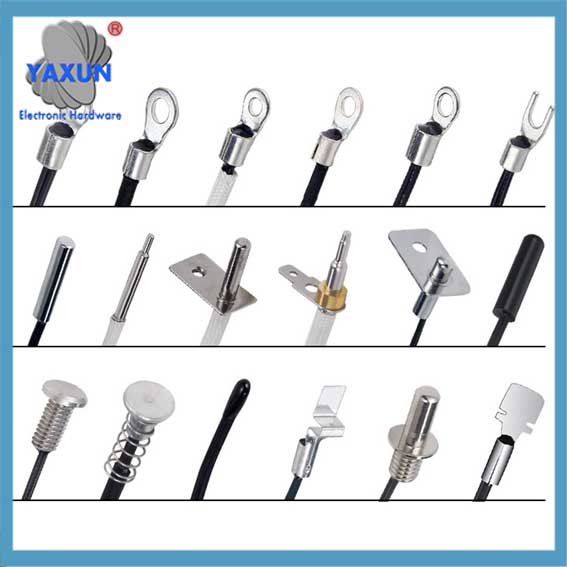

Water temp NTC thermistor sensors used in Water Heater Controller |

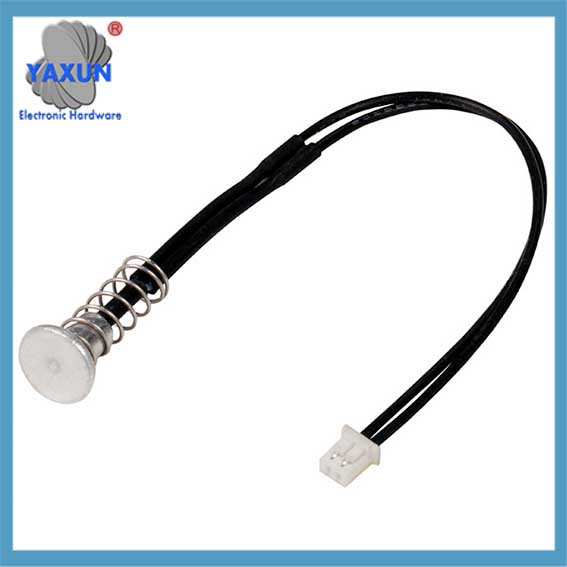

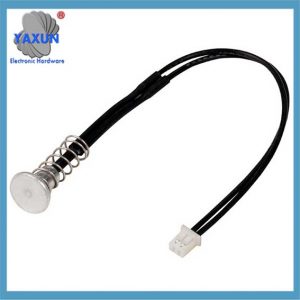

EPCOS / AVX / SEMITEC /SUBARA / MITSUBISHI / OHIZUMI NTC thermistor sensors probe Wire 3M |

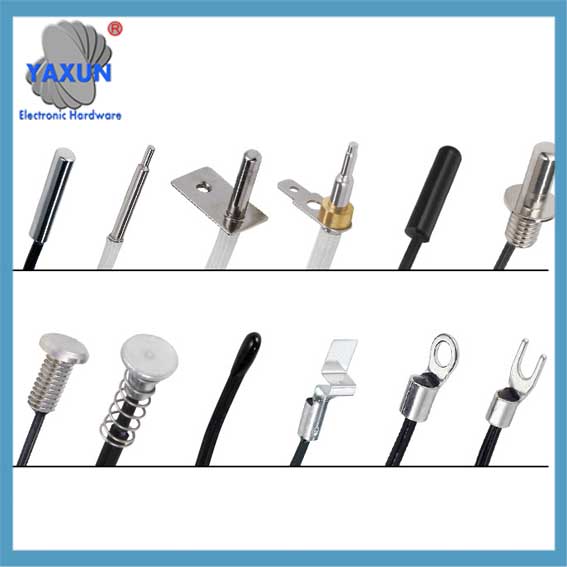

NTC thermistor sensors probe used in Electric Heater |
Beschreibung
| TYPE: | NTC thermistor sensors probe | B25/50: | 3950K, 3977K, 3435K |
| Sensor Head: | O Ring, Fork Metal, Injected Tube, NPT, M16, tainless Steel Tube | Draht: | CL2 PT4,#24 2466,#28 1332 |
| Verwendung: | Temperatursensor, Instant Water Heaters, water heater, air conditioner, refrigerator, water fountain, induction cooker, coffee maker | Pn (rated Power): | 50mw |
| Hohes Licht: | EPCOS / AVX / SEMITEC /SUBARA / MITSUBISHI / OHIZUMI NTC thermistor Sensor, 3977K NTC Temperature Sensor, Thermistor Water Temperature Probe | ||
Custom NTC thermistor sensors probe Wire 3M~10M Theory Signal Output Origin.
| Specification Name | Scope | Detection Condition |
| R25(nominal resistance value) | 1k, 2k, 2.7k, 3k, 5k, 10k, 15k, 20k, 30k, 40k, 47k, 50k, 100k, 200k (EPCOS / AVX / SEMITEC /SUBARA / MITSUBISHI / OHIZUMI NTC thermistor) | Constant temperature 25℃±0.05℃ |
| R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25℃±0.05℃ |
| B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25℃±0.05℃
Constant temperature 85℃±0.05℃ |
| B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25℃±0.05℃
Constant temperature 50℃±0.05℃ |
| ∫(dissipation coefficient) | ≥0.8mw/℃ | Static in the air |
| T(thermal time constant) | ≤25S | Static in the air |
| Ta(Working temperature) | -30℃~+120℃ | |
| Pn (rated power) | 50mw | within working temperature |
| Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, tainless Steel Tube, or according to client’s drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client’s request. | |
| Terminal | Can be riveted according to the requirements of various terminals |
The sensor’s connection terminal and housing size and lead length can be customized according to customer requirements
Services
1. Your inquiry will be replied within 24 Std.;
2. Well-trained and experienced staff are always at your service.
3. Unique design products and many private mold product are waiting for your choice.
4. Strictly protect your private information and your ideas of design.
FAQ
Q1. Can I have a sample order for NTC, PT100,PT1000, RTDs, and Ds18b20 SENSOR?
A: Ja, we welcome sample order to test and check quality. Mixed samples are acceptable.
Kontaktiere uns
Warten auf Ihre E-Mail, Wir werden Ihnen innerhalb von 24 Stunden antworten 12 Stunden mit wertvollen Informationen, die Sie brauchten.
