Panel Fuse Holder R3-54B 6.3A 250V for 5x20mm Solderable Terminal

R3-54B Panel Fuse Holder 6.3A, 250V, 10A, 125V AC; Länge: appr. 42mm; Holder for 5×20 mm fuse. See more About this item. R3-54B UL cUL Certification Fuse Holder Block Solderable Terminal Screw Mounting, Screw Cap Fuse Holder Slotted Driver Type.



R3-54B Panel Fuse Holder 6.3A, 250V, 10A, 125V AC; Länge: appr. 42mm; Holder for 5×20 mm fuse. See more About this item. R3-54B UL cUL Certification Fuse Holder Block Solderable Terminal Screw Mounting, Screw Cap Fuse Holder Slotted Driver Type.

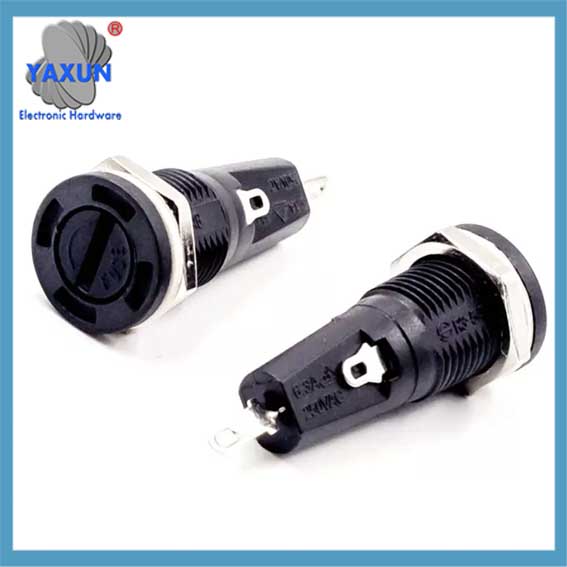

Fuse Holder R3-54B 6.3A 250V for 5x20mm

Fuse Holder R3-54B 6.3A 250V for 5x20mm

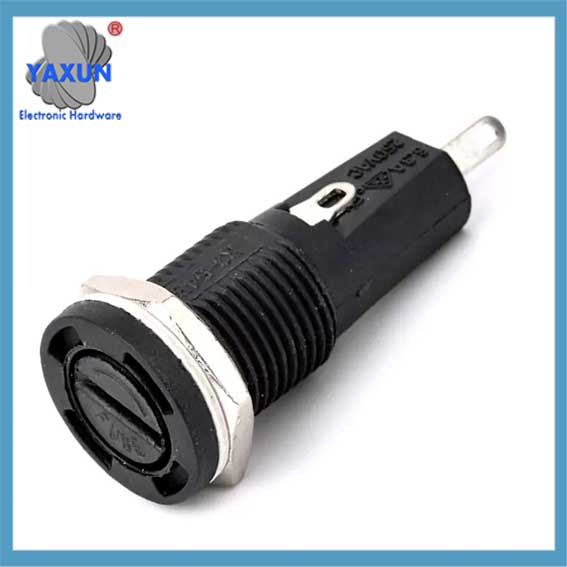

r3-54B Blok Sekering Fuse Holder-PANEL MOUNT Blok Asuransi Fuse Holder

r3-54B Blok Sekering Fuse Holder-PANEL MOUNT Blok Asuransi Fuse Holder

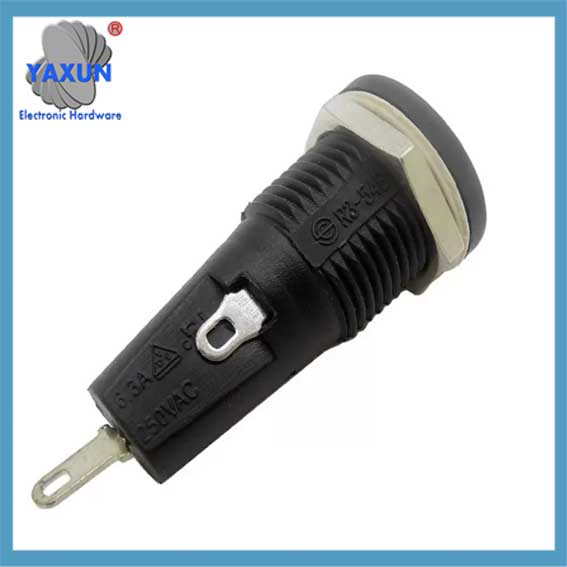

5x20 Panel Fuse Holder R3-54B UL cUL Fuse Block Solderable Terminal Screw Mounting

5×20 Panel Fuse Holder R3-54B UL cUL Fuse Block Solderable Terminal Screw Mounting

Artikel: Sicherungshalter Mount-Typ: Panel Mount
Montageart: By Nut Cap Type: Schrauben
Nennspannung: 250V 125V Aktuelle Bewertung: 6.3A 10A
Angewendet auf: 5x2mm Fuses RoHS-konform: Ja
Körpermaterial: Nylon Terminalmaterial: Silver Plated Copper
Total Length: 40.6mm Cut-Out Diameter: 12.7mm
Cap Diameter: 16mm
Hohes Licht: 6.3A Panel Mount Fuse Holders, Nylon Panel Mount Fuse Holders, PA66 Waterproof Fuse Block

Produktbeschreibung

Panel Mount Fuse Holder R3-54B 5×20 6.3A 250V 10A 125V Fuse Holder Screw Cap Nut Mounting

Produktbeschreibung

Kontaktwiderstand: <0.02Oh

Withstanding Voltage: >AC3000V

lnsulation Resistance: DC500V 100mΩ Min

Electrical: Rated at 6.30A 250V AC

Insulating Body: PA66 nylon, UL 94V-2

Screw type cap, mounted by nut

2.8mm soldering terminals

Artikel R3-54B Fuse Holder
Mouting Style Panel Mount
Max Rating 250V 6.3A 125V 10A
Frame and cap nylon
Terminal silver plated copper
Fuse Size 5x20mm
Cut-out diameter 12.7mm

Produktmerkmale
Tiny structure
Easy installation
Durable material with good electrical capability
Silver plated copper terminals for soldering

Drawing of R3-54B 5x20 fuse holder

Drawing of R3-54B 5×20 fuse holder
