Panel Mount Fuse Holder, 3AG Fuse 15A, 480V Eaton Bussmann Bk-Hvp-Hh-R
Alco Part Number: K316APN01 phenolic resin ALCO Panel Mount Fuse Holders 6x30mm. Amps: 15. Stromspannung (Vac): 125. Mounting: Panel Lead/Terminal Type: Solder Lug Number Leads/Terminals. Holds Fuse Size: 1/4 X 1 1/4 Zoll / 6 X 30 mm (Holds AGC,ABC,MDL & MDA fuses); Max Amps: 15 @ 125v (UNS) oder 10 @ 250v (EU); Mount Cutout : M13 (21/32 Zoll)
Alco Part Number: K316APN01 phenolic resin ALCO Panel Mount Fuse Holders 6x30mm. Amps: 15. Stromspannung (Vac): 125. Mounting: Panel Lead/Terminal Type: Solder Lug Number Leads/Terminals. Holds Fuse Size: 1/4 X 1 1/4 Zoll / 6 X 30 mm (Holds AGC,ABC,MDL & MDA fuses); Max Amps: 15 @ 125v (UNS) oder 10 @ 250v (EU); Mount Cutout : M13 (21/32 Zoll)

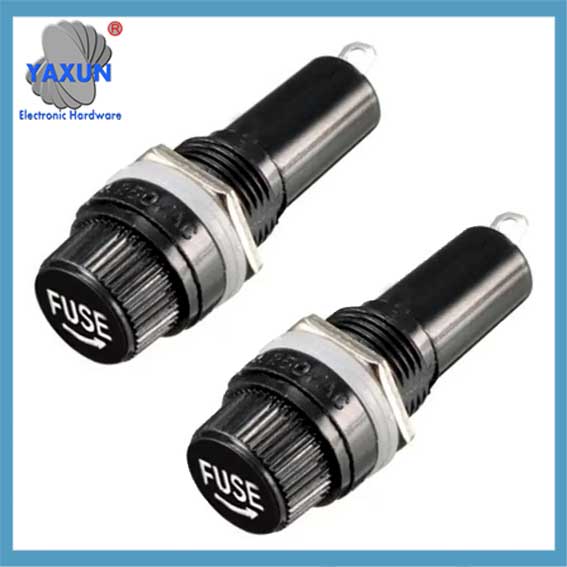

 250V ALCO Panel Mount Fuse Holders 6x30mm 3AG phenolic resin |

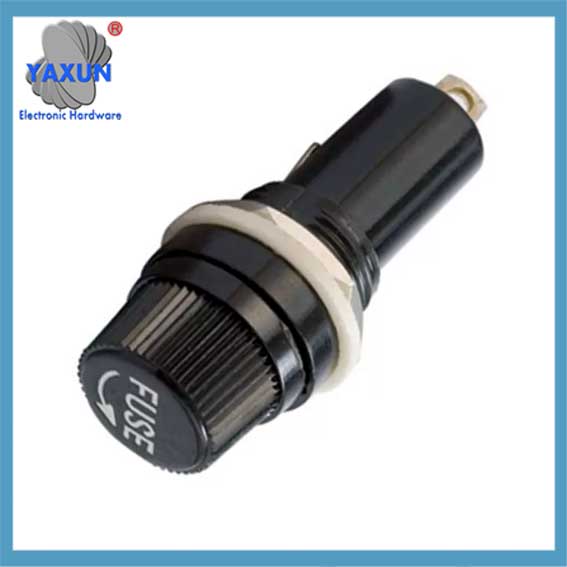

 Panel Mount Fuse Holder, 3AG Fuse 15A, 480V Eaton Bussmann Bk-Hvp-Hh-R |

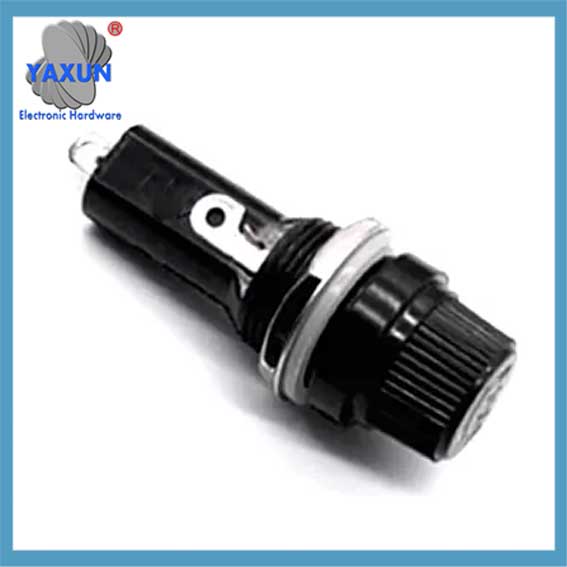

 Panel Mount Fuse Holder for AGC Glass Tube Fuses |
| Artikelname: | Sicherungshalter, Sicherungsblock | Teile-Nr.: | SL-602 |
| Mount-Typ: | Panel | Rating: | 250Vac 10A, 125Vac 15A |
| Angewendet auf: | 6×30 6×32 Tube Fuses | RoHS-konform: | Ja |
| Material: | Phenolic Resin, Messing | Cap Type: | Screw Mount |
| Fire Retardant Grade: | 94V-1 | Package: | 1000pcs Per Carton |
| Feature: | Double Flat Body | ||
| Hohes Licht: | 250V Panel Mount Fuse Holders, 6x30mm Panel Mount Fuse Holders, 3AG ALCO Fuse Holder | ||
Produktbeschreibung
ALCO Fuse Block 250V 10A 125V 15A Panel Mount Fuse Holder 6x30mm 6mmx32mm 3AG Fuse Holder
Panel Mount Fuse Holders SL-602
| Artikel | Sicherungshalter |
| Mouting Style | Panel Mount, double flat body |
| Materialsb | bakelite, nickel plated brass |
| Max Rating | 10A 250V, 15A 125V |
| Zertifizierungen | RoHS |
| Fire retardant grade | 94V-1 |
| Mindestbestellmenge | 1000PCS |
Hot Alternative Model
| Produktname | ALCO Flat Type Panel Mount 6×30 fuse holder |
| Mounting Ways | Panel mount, screw cap |
| lnsulation Resistance | >1000mΩ |
| Withstanding Voltage | >3000VAC |
| Warranty Period | 2 Jahre |
| Kontaktwiderstand | <20mΩ |
| Accessories | 3AG fuses |
250V ALCO Panel Mount Fuse Holders 6x30mm 3AG phenolic resin
For 6.3x30mm or 6.3×32mm FUSES
• Insulating material:phenolic resin
• Screw driver slot fuse extractor type with nickel-plated copper alloy insert. Spring loaded.
• Nickel plated copper alloy, right angle terminal,solder type.
Dimensional drawing of ALCO Flat Type 6X32mm fuse block
1.Easy installation: reasonable deisgn with small volume. Quick soldering terminals make it easy to connect with wires.
2.Safety: It is compact and selfcontained. Safety insulated button and built-in fuse ensure safe operation.
3.Hohe Zuverlässigkeit: finely made metal parts and structure ensures the fuses are in full contact with the terminals.
