PCB Mount Fuse Clips and Holders Circuit ATS Blade Fuse Holders

PCB Mount SL-506P ATS Fuse Clips and Holders for 297 ATM Fuses. Material: durable glass and hard plastic. Partially nickel-plated copper caps at both ends, strong electrical conductivity, stable operation.

Medium ATS Blade Fuse Holders 32V 20A PCB Mount

Medium Blade Fuse Holder Universal Car Fuse Holder PCB Panel Mount Insurance Blocks

PCB Panel Mount Insurance Blocks for Medium Blade Fuse Holder Universal Car

Item Name:	PCB Mount Fuse Clips and Holders	Mounting Type:	PC Board
Voltage Rating:	32V Dc	Current Rating:	20A
Applied To:	ATO ATC ATS ATU Medium Blade Fuses	RoHS Compliant:	Yes
Body Material:	Nylon	Terminal Material:	Tinned Brass
Terminal Thickness:	0.4mm
Hohes Licht:	20A Blade Fuse Holders, Automotive Blade Fuse Holders, ATS Fuse Holder

Produktbeschreibung

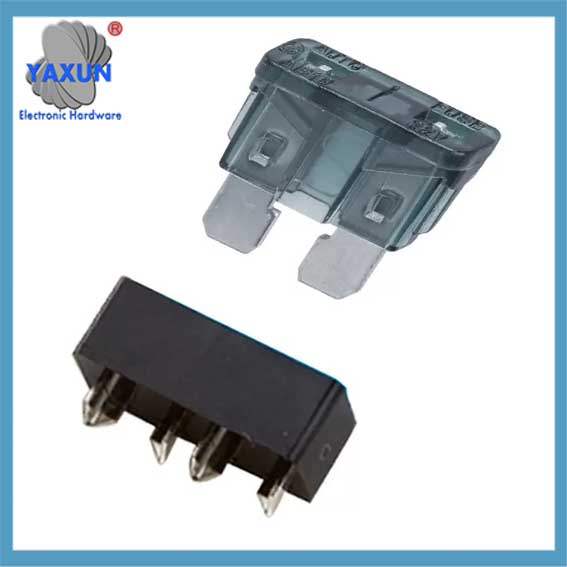

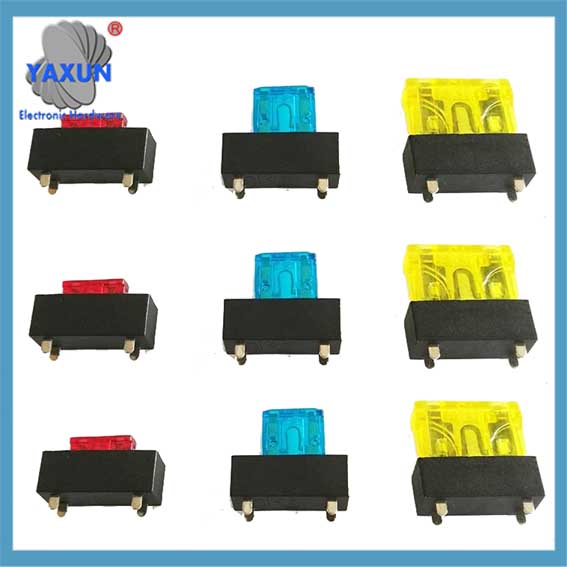

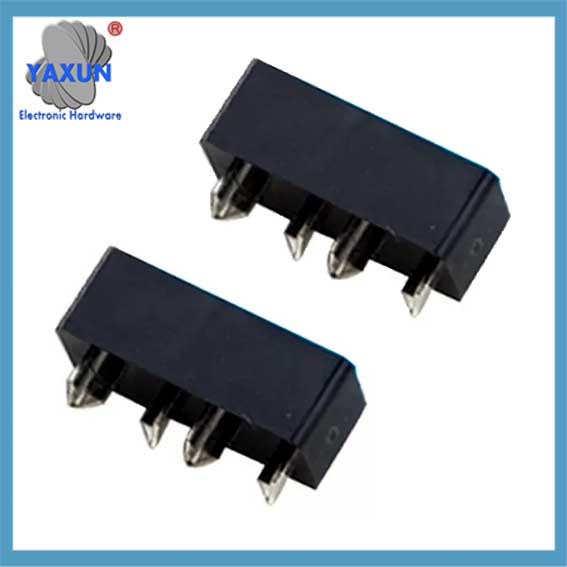

32V 20A PCB Blade Fuse Holder ATO ATC ATS ATU Automotive Medium Fuse Clip PCB Mount With 2 Tinned Brass Terminals
Produktbeschreibung
For ATO ATC ATS ATU Medium Blade Fuses
PA66 body; Tin plated brass contacts, T=0.4mm;
20A 32Vdc rating
Contact Resistance:Max.50mQ
Insertion & Extraction Force 2.0~5.0kgs.
Dielectric Strength: Min.AC 1000 V
lnsulation Resistance: Bei 500 VDC,100MQ Min.

Item Name	Blade Fuse Clip
Mounting way	PCB
Body Color	black
Body Length	19.4mm
Body thickness	5.4mm
Height	11mm
Terminal Width	7mm
Terminal Thickness	0.4mm

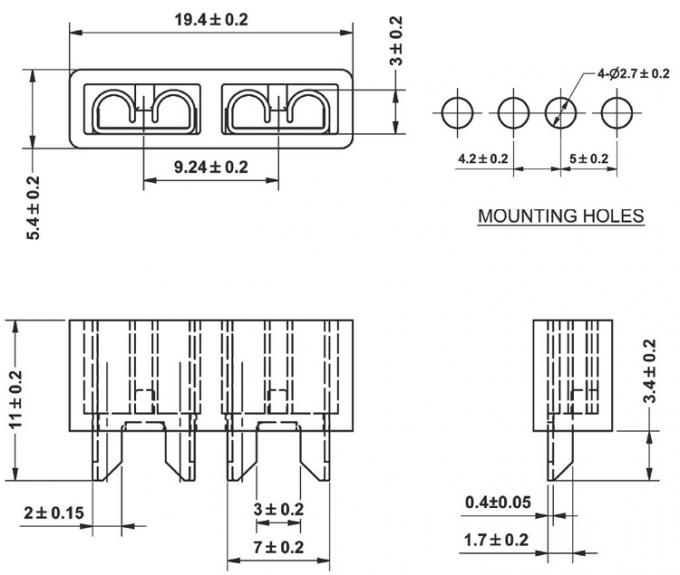

Drawing of TR-506A2 PCB Mount Fuse Clips and Holders

Blade Type Fuse Sizes Dimension

Blade Fuse Group

Blade size	Blade group	Dimensions L × W × H	Common ratings (maximum current)
Micro2	APT, ATR	9.1 × 3.8 × 15.3 mm	5, 7.5, 10, 15, 20, 25, 30
Micro3	ATL	14.4 × 4.2 × 18.1 mm	5, 7.5, 10, 15
LP-Mini	APS, ATT	10.9 × 3.81 × 8.73 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini	APM, ATM	10.9 × 3.6 × 16.3 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A
Regular	APR, ATC, ATO, ATS	19.1 × 5.1 × 18.5 mm	1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi	APX	29.2 × 8.5 × 34.3 mm	20, 25, 30, 35, 40, 50, 60, 70, 80, 100

Colors & Ratings

Color	Current rating
Black	1A
Grey	2A
Violet	3A
Pink	4A
Tan	5A
Brown	7.5A
Red	10A
Blue	15A
Yellow	20A
Transparent	25A
Green	30A
Blue-green	35A
Orange	40A

Anwendungen
Car, Boat, Truck, SUV, Motorcycle, usw.

Shipping Term:
EXW, DDU, DDP, C&F, FOB

Shipping Methods:
Express, By Air, By Sea
