Rückstellbare PPTC-SMD-Sicherung 0805 0603 Oberflächenmontage für PC-Motherboards

Rückstellbare PPTC-Sicherungen von PolySwitch. Rücksetzbare Überstromschutzgeräte mit verschiedenen Optionen: Oberflächenmontage, Radial bedrahtet, Riemen und geringer Widerstand. Sichern Sie Ihre Stromkreise mit Bourns® Multifuse® rücksetzbaren Polymer-PTC-Sicherungen, Bietet robusten Überstromschutz in Hochtemperaturumgebungen.

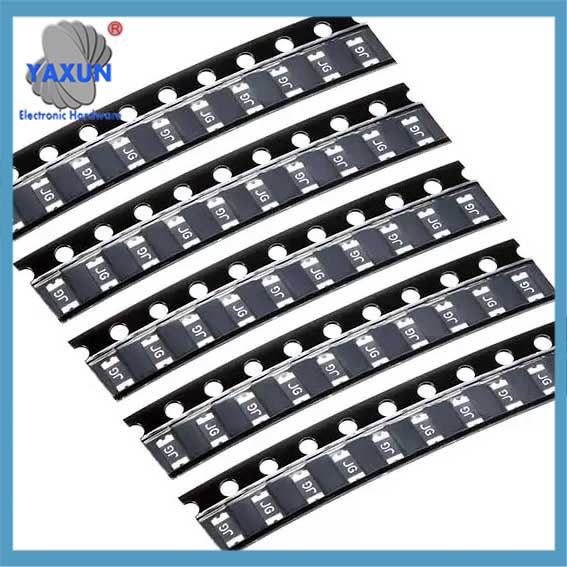

Rückstellbare Polymer-PTC-Sicherung 6 V 2 Eine Ih-Oberflächenmontage 1210 (3225 Metrisch)

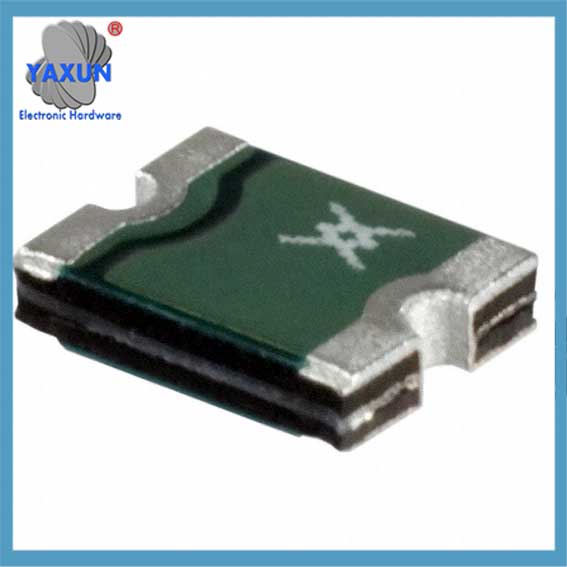

Littelfuse SMD300F-2 Polymer-PTC-rückstellbare Sicherung 6 V 3 A Ih-Oberfläche

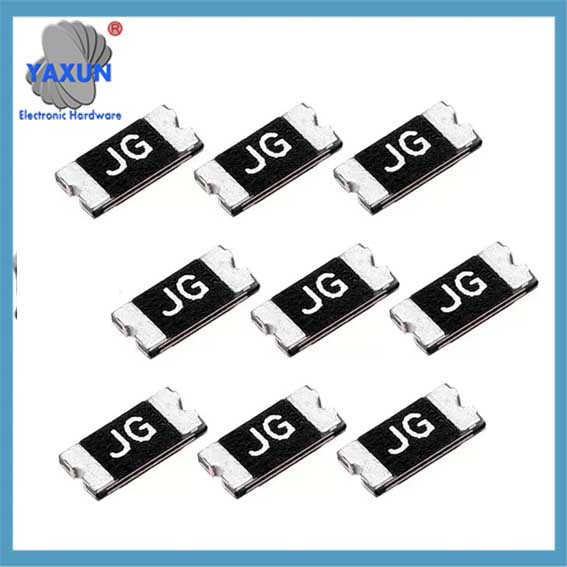

Littelfuse ASMDC030F-2 Polymeric PTC Resettable Fuse 60V 300mA

Produktbeschreibung

1210 Surface Mount Fuse SMD Fuse PPTC RESETTALBE FUSES 30V 13.2V 6V 0.05A 0.1A 0.2A 0.35A 0.5A 0.75A 1.1A 1.5A 1.75A 2A

1210 SMD FUSE Features

◆ Surface Mount Devices

◆ Standard 1210mils footprint

◆ Surface mount packaging for automated assembly

◆ Compatible with Pb and Pb-free solder reflow profiles.

◆ UL, C-UL, TÜV

◆ RoHS, Reach, HF compliance

1210 SMD FUSE Applications

Mobile phones

PC motherboards

IEEE1394 ports

USB port protection

HDMI source protection

Game console port protection

1210 PPTC SMD FUSE Specification

Dimension

A resettable fuse or polymeric positive temperature coefficient device (PPTC) is a passive electronic component used to protect against overcurrent faults in electronic circuits. The device is also known as a multifuse or polyfuse or polyswitch. They are similar in function to PTC thermistors in certain situations but operate on mechanical changes instead of charge carrier effects in semiconductors.

1210 PPTC SMD FUSE Specification Dimension

A PPTC device has a current rating and a voltage rating.
