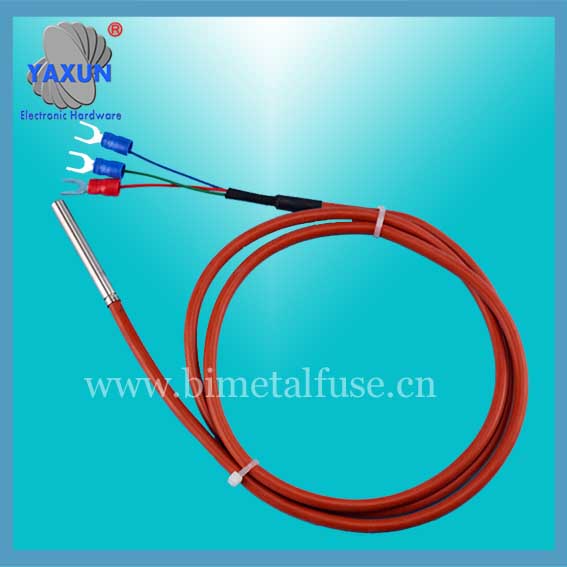

PT100 RTD sensor Probe & Kabel

PT100 RTD sensor Application scope:
Temperature and humidity are the two physical parameters that humans interact with most in nature. Whether in production and experimental sites or residential and leisure sites, the collection or control of temperature and humidity is very frequent and important. Moreover, networked remote collection of temperature and humidity and alarming is an inevitable trend in the development of modern science and technology. Since temperature and humidity are closely related both in terms of physical quantities themselves and in actual people's lives, sensors integrating temperature and humidity will be produced accordingly. Due to the relationship between temperature and resistance change of platinum resistor, people took advantage of this characteristic to invent and produce PT100 thermal resistance temperature and humidity sensor. It is an intelligent sensor integrating temperature and humidity collection. The temperature collection range can be -200℃~+200℃, and the humidity collection range is 0%~100%.

Product introduction:
LM-PT100 are thermal resistance temperature and humidity sensors with LCD display. It works in an industrial-grade environment of -40℃~+85℃ (host range, not external sensor range), and the collection temperature range is -200℃~+200℃. The display accuracy is 0.1℃; the comprehensive accuracy is 0.3℃. By combining our thermal resistance sensors with our RS-485 repeaters, it is possible to connect up to 255 PT100 thermal resistance acquisition modules to the same network, with a maximum communication distance of 1200m. LM-PT100 thermal resistance temperature and humidity sensors can also be combined with LM-8052NET to form a TCP/IP temperature collection network, which can realize remote temperature collection.

details:
LM-PT100, WD-PT100 is a new type of thermal resistance temperature sensor acquisition module (without PT100 temperature sensor, need to be purchased separately), which can be used to collect two-way on-site temperature. . Gleichzeitig, its own RS-485 bus serial communication interface can be used to easily connect to the environment monitoring host or other industrial control host.
Industrial grade PT100 thermal resistance acquisition module working at -40℃~85℃. According to the display mode, there are two types: WD series without LCD display (WD-PT100) and LM series with LCD display (LM-PT100). The collection temperature range is -200℃~+200℃, the display accuracy is 0.1℃; the comprehensive accuracy is 0.3℃.

PT100 thermal resistance acquisition modules can be connected to the RS-485 local control network through the isolated 485 communication interface. RS-485 allows up to 32 PT100 thermal resistance acquisition modules to be hung on the same bus. Jedoch, if Link-Max's RS-485 repeater is used, up to 256 PT100 thermal resistance acquisition modules can be connected to the same network, and the maximum communication distance is 1200m. Before installing the PT100 thermal resistance acquisition modules into the network, they should be configured, and the baud rate of the module should first be set to be consistent with the baud rate of the network. Gleichzeitig, the PT100 thermal resistance acquisition modules should be set to different addresses respectively to prevent the address conflict of each PT100 thermal resistance acquisition module.

After the PT100 thermal resistance acquisition modules are correctly connected, the host sends a read data command to cause the PT100 thermal resistance acquisition modules to send data back to the host. The data in the PT100 thermal resistance acquisition module is updated once every second, and the display data on the LCD display is updated periodically (LM series only).

The WD series is used in situations where temperature display is not required, such as outdoor ATM cabinets. This series is a DIN rail-mounted enclosure. In addition to completing temperature collection, the LM series can also pre-set the upper and lower limit alarm values of the temperature. When the environmental parameters exceed the set value, the buzzer inside the machine will sound an alarm immediately.

PT100 thermal resistance acquisition module is a fully digital PT100 thermal resistance acquisition module with wide application prospects. Temperature monitoring becomes very easy with this module. PT100 thermal resistance acquisition modules can be connected to two-wire, three-wire and four-wire PT100 thermal resistors. When three-wire and four-wire are used, the module can effectively compensate for wire resistance. The length of the cable does not affect the collection accuracy. This module is widely used in environmental monitoring systems, power systems, industrial automation and other fields, and has excellent cost performance.
PT100 and PT1000 thermal resistance acquisition modules can also be combined with LM-8052NET to form a TCP/IP temperature acquisition network, which can realize remote temperature acquisition.
