PT100 temperature sensor BBQ probe for Oven / Grill / Barbecue / Fritteuse / Smoker

PT100 BBQ probe Meat thermometer provides an instant readout of inner food temperature during a cooking cycle without opening the Oven / Grill / Fritteuse / Smoker;
Customize your own cooking temperature using the easy-set rotary dial;
PT100 temperature sensor 3-feet length 700ºF heat resistant cord withstands searing heat;
Audible alert when the desired temperature is reached.

Temperaturbereich: 14 Zu 450 degrees Fahrenheit; -10 Zu 232 Grad Celsius
Probe cord heat resistant up to 700 degrees Fahrenheit
Temperature Accuracy : +/- 2 degrees Fahrenheit
Dimensions: 4.75-inch Height x 2.43-inch Width x 0.96-inch Depth

The PT100 temperature sensor probe Thermometer allows you to monitor the temperature of the food you are cooking while the oven, grill, fryer, slow cooker, smoker or bbq door or lid is closed. The commercial quality stainless steel BBQ probe measures internal food temperature during cooking and BBQ probe features a 3-feet length 700 degree Fahrenheit heat resistant cord. Easy-set rotary dial lets you select one of the USDA recommended temperature presets or set your own custom temperature. Audible alarm sounds when the desired temperature is reached. Folding design for versatile viewing angles.

PT100 temperature sensor probe Thermometer Features
BBQ probe thermometer provides an instant readout of inner food temperature during a cooking cycle without opening the oven door or grill;
BBQ probe Pre-programmed meat thermometer settings include: Beef, Veal, Chicken, Pork, Poultry, Lamb and Fish;
USDA temperature presets include: Rare, Medium Rare, Medium, Medium Well and Well Done cooking preferences;
Customize BBQ probe own cooking temperature using the easy-set rotary dial;
BBQ probe 3-feet length 700ºF heat resistant cord withstands searing heat;
Stainless steel thermometer BBQ probe measures a wide temperature range from 14ºF to 450ºF (-10ºC to 232ºC) ;

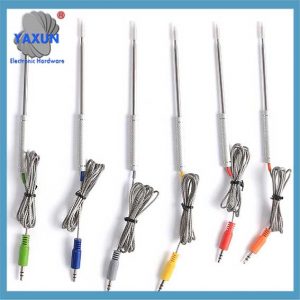

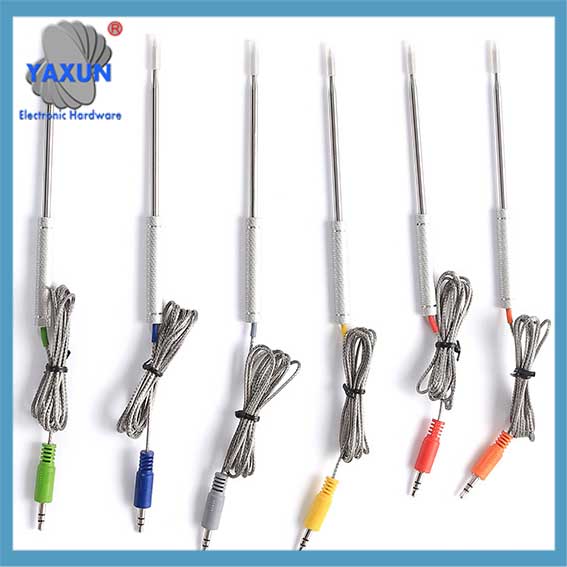

Oven temperature sensing application temperature sensor with silicone sleeve, stainless steel probe

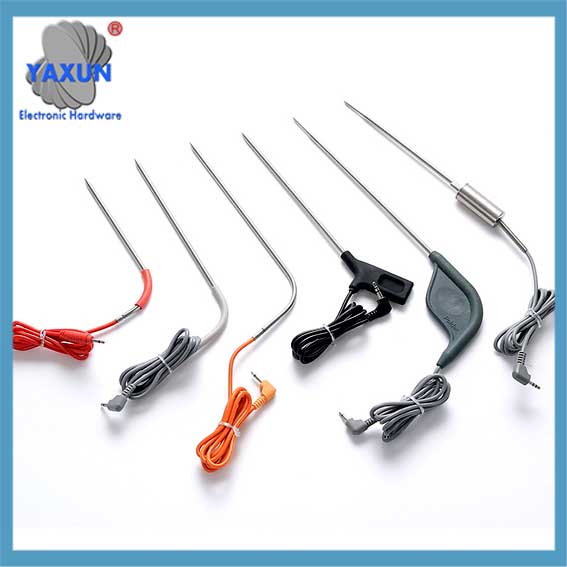

BBQ temperature probe with 3-feet length 700oF heat resistant cord

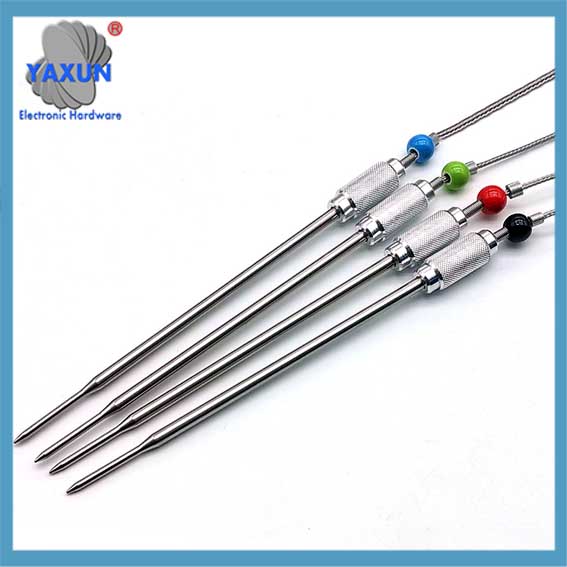

PT100 temperature sensor BBQ probe

PRODUCT PROFILE
China-made PT100/PT1000 platinum thermal resistor temperature sensor. The localization process of PT100/PT1000 platinum thermal resistor temperature sensor is accelerating as the international situation is pressing. It came into being to cooperate with many companies to fully localize platinum thermal resistors. The PT100/PT1000 platinum thermal resistor element is independently developed and produced in China, which can meet the use of temperature sensors under most working conditions. The current accuracy can reach ±0.15℃. All the shapes of our products can be used for the packaging of this domestic resistor.

SPECIFICATION PARAMATER

Technical parameters of platinum resistance:
Temperature coefficient: TCR= 3850ppm/K
Spezifikation: DIN EN 60751 (compliant with IEC751)
Long-term stability: RO drift is less than or equal to 0.04% (500℃, after 1000 Std.)
Vibration resistance level: at least 40g acceleration (10-2000Hz)
Self-heating coefficient: 0.4K/mW (at 0°C)
Response time: water @0.4m/s t0.5=0.05S t0.9=0.15S; air @2m/s t0.5=3.0S t0.9=10.0S
Measurement current: PT100 0.3-max 0.5 mA/PT1000 0.1 to 0.3mA

Anwendung

Electrical data

Measuring/setting range

Accuracy / deviations

Reaction times

Operating conditions

Tests / approvals

Mechanical data

Remarks

Electrical connection
