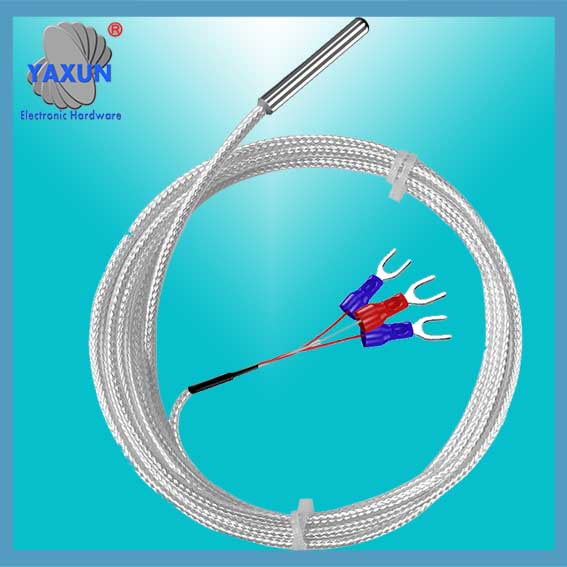

Pt100 temperature sensor for military equipment

Pt100 / PT1000 sensor probes and wiring harnesses are widely used in military equipment, aviation, and aerospace equipment. The pt100 temperature sensor is an instrument that converts temperature variables into a standardized output signal that can be transmitted. It is mainly used for the measurement and control of industrial process temperature parameters. Transducers with sensors usually consist of two parts:

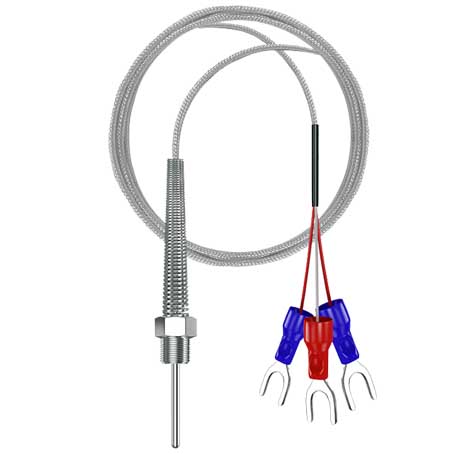

M6*1, M8*1.25, M10*1.5, M12*1, M14*1.5, M16*1.5, M20*1.5, M27*2 threaded pt100 temperature sensor

The PT100 sensor is a thermal resistor temperature sensor. Its working principle is to measure temperature by using the characteristic that the resistance of the conductor changes with temperature. In the PT100 sensor, the resistance value of pure platinum changes with temperature. Wenn die Temperatur steigt, the resistance value increases, and vice versa. daher, by measuring the resistance value of the PT100 sensor, the temperature of the measured object can be known.

PT100 sensors have the advantages of high precision, gute Stabilität, hohe Zuverlässigkeit, and strong interchangeability, so they have been widely used in various fields. The following are some common application scenarios:

Industrial field: PT100 sensors are widely used in temperature measurement and control in industrial production processes, such as metallurgy, chemical industry, electricity, medicine and other fields. In high temperature, high pressure, and highly corrosive environments such as thermal power plants, nuclear power plants, and petrochemicals, PT100 sensors can stably and reliably measure temperature to ensure the smooth progress of the production process.

Automotive field: The temperature of components such as automobile engines, transmissions, and radiators needs to be accurately measured and controlled. PT100 sensors are widely used in temperature detection and control systems for automotive parts.

Aerospace: In the aerospace field, PT100 sensors are used to measure the temperature of liquid oxygen and liquid hydrogen combustion chambers, turbine engines, fuel cells, usw. of aircraft and spacecraft. Hohe Präzision, high reliability and strong stability are required.

Agriculture: In greenhouse environments, PT100 sensors can be used to measure parameters such as soil temperature and air temperature. Provide precise temperature control and environmental monitoring for agricultural production.

Food: In food processing and storage, temperature is one of the key health and safety indicators. PT100 sensors can be used for temperature monitoring and control in food processing, refrigeration, warehousing and other links to ensure food quality and safety.

Medical: In medical equipment, such as medical thermostats, incubators, usw. PT100 sensors are also used in equipment that requires accurate measurement and control of system temperature.

In short, PT100 sensors, as a high-precision and high-stability temperature sensor, have been widely used in various fields. It has the advantages of wide temperature measurement range, high precision and good stability, and can provide reliable guarantee for temperature measurement and control of various equipment and systems.

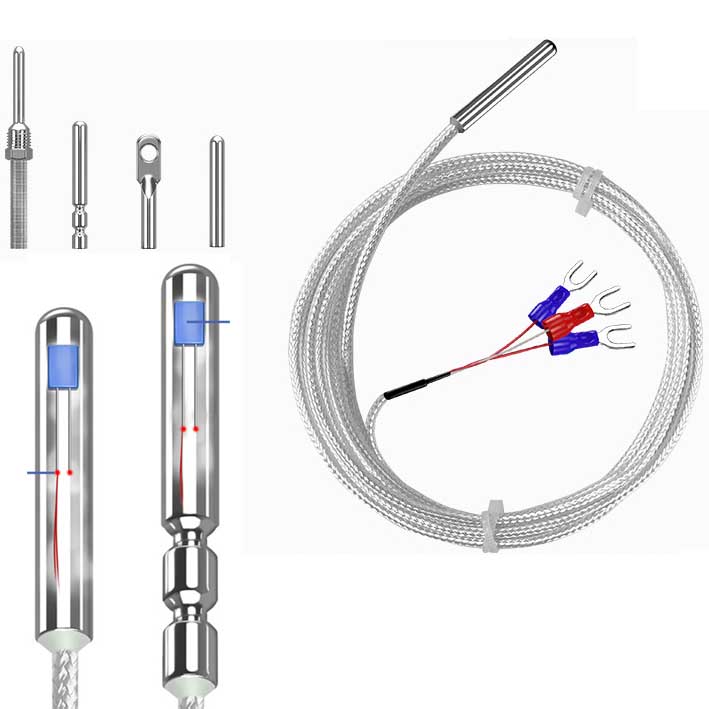

PT100 sensor with high temperature resistant silver-plated shielded polyethylene wire

Indexing table
-50℃ 80.31 Oh
-40℃ 84.27 Oh
-30℃ 88.22 Oh
-20℃ 92.16 Oh
-10℃ 96.09 Oh
0℃ 100.00 Oh
10℃ 103.90 Oh
20℃ 107.79 Oh
30℃ 111.67 Oh
40℃ 115.54 Oh
50℃ 119.40 Oh
60℃ 123.24 Oh
70℃ 127.08 Oh
80℃ 130.90 Oh
90℃ 134.71 Oh
100℃ 138.51 Oh
110℃ 142.29 Oh
120℃ 146.07 Oh
130℃ 149.83 Oh
140℃ 153.58 Oh
150℃ 157.33 Oh
160℃ 161.05 Oh
170℃ 164.77 Oh
180℃ 168.48 Oh
190℃ 172.17 Oh
200℃ 175.86 Oh
composition part
