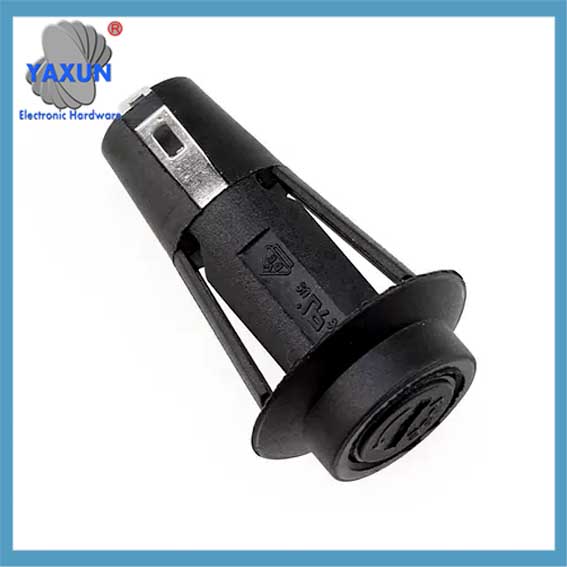

PTF-40 Panel Mount Fuse Holder for cylindrical fuses 5x20mm 10A

The PTF-40 is an easy to install snap-in panel mount fuse holder Slotted Bayonet Cap, 10 A~30 A, 250 V, UL for use with 5x20mm cylindrical fuses. This snap in panel mount fuse holder mounts into 12mm hole and comes with a 22mm wide face plate. The slotted bayonet cap of this panel mount fuse holder serves as a holder for the fuse and makes insertion and removal shock safe. It is UL rated at 10 amps at 250 Volts.

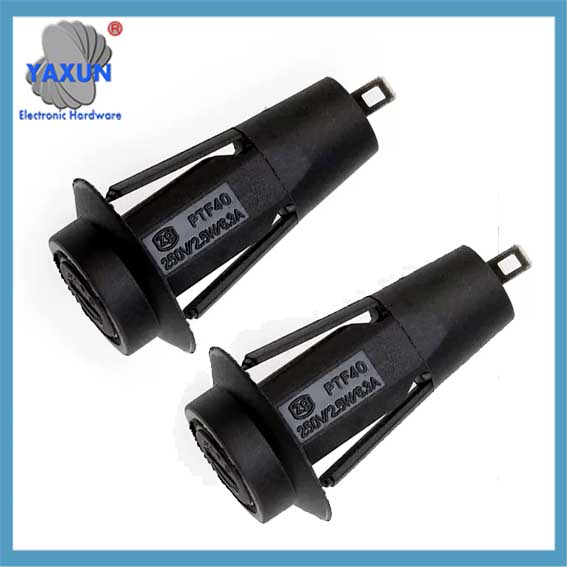

UL, CSA, VDE certified fuse holder models: R3-9A, R3-11, R3-12, R3-13, R3-14, R3-18, R3-22A, R3-24, R3-54B, R3-55, R3-45; PTF-50, PTF-45, PTF-40, PTF-15, PTF-78, PTF-35, FH-B02, OP520.

UL, CSA, VDE certified fuse holder models: R3-9A, R3-11, R3-12, R3-13, R3-14, R3-18, R3-22A, R3-24, R3-54B, R3-55, R3-45; PTF-50, PTF-45, PTF-40, PTF-15, PTF-78, PTF-35, FH-B02, OP520.

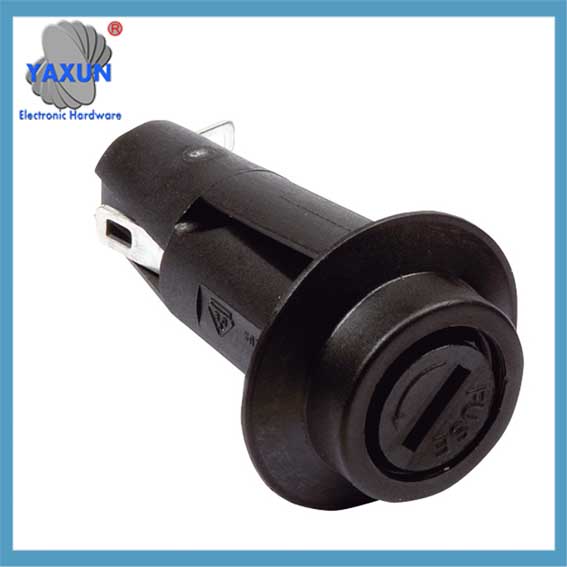

Panel Mount lHolder Accepts 5x20mm Glass Fuse, Slotted Bayonet Cap, 10 A, 250 V, UL

PTF-40 Snap-In Fuse Holder 250V 10 Amp Panel Mount Fuse Holder 5x20mm

Produktbeschreibung
UL VDE PTF-40 Snap-In Fuse Holder With Quick Connect Terminal UL 94V-0 PBT 5×20 10A 250V Fuse Carrier
Produktbeschreibung
The panel-mounted fuse holder is convenient for inspection and repair, and does not need to disassemble the machine to replace the fuse.
Merkmale
Anti-vibration design eliminates accidental electric shocks for operators
Compact design, small structure
Snap-in mounting
PBT, UL94V-0 material boy
Straight quick connect terminal, easy to wire
Can be installed on the panel without a screw driver
UL /VDE approved
250Vac 10A Rating
For 5.2x20mm fuses usage
Umgebungstemperatur: -20℃~125℃
lnsulation Resistance: >100mOhm @ 500Vdc
Kontaktwiderstand: 5mOhm at 1A DC
Spannungsfestigkeit: >1500acV 1 Minute
Nickel / tin plated brass terminals:

Drawing of PTF-40 In Panel Mount Fuse Holder
