R3-12/13 5X20MM, 6X30MM Fuse Holder 10A 125V/250V UL Fuse Box
6*30mm 3AG fuse Panel Mount Fuse Holders R3-9 13 14C 44 22 53 fuse 6X32 high temperature 10A at YAXUN. Fuse Holders Screw Cap 10A 250 VAC TUV . 187 Inch Male Tabs Termination – .250 Inch x 1.25 Inch Fuse Size – Black Phenolic CSA cURus. R3-13 Fuse Holder are a product manufactured by Chin. We provide cost-effective solutions for Fuse Holder, ensuring timely deliveries around the world.
6*30mm 3AG fuse Panel Mount Fuse Holders R3-9 13 14C 44 22 53 fuse 6X32 high temperature 10A at YAXUN. Fuse Holders Screw Cap 10A 250 VAC TUV . 187 Inch Male Tabs Termination – .250 Inch x 1.25 Inch Fuse Size – Black Phenolic CSA cURus. R3-13 Fuse Holder are a product manufactured by Chin. We provide cost-effective solutions for Fuse Holder, ensuring timely deliveries around the world.

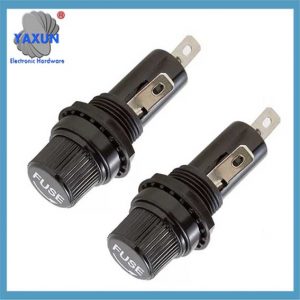

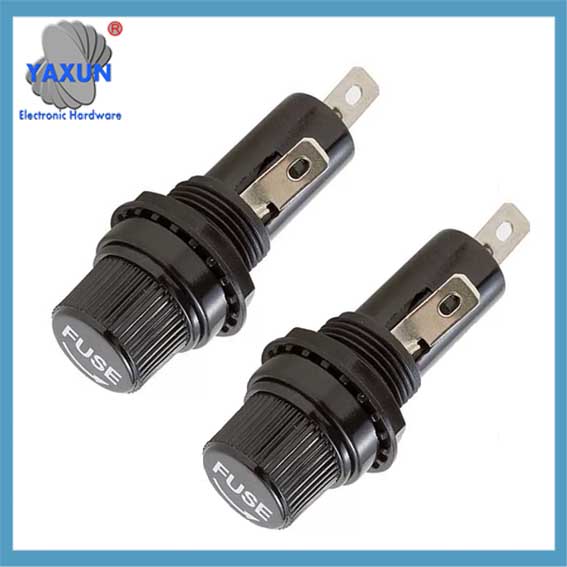

 R3-13 250V 10A Fuse Holder UL Certified Fuse Block for 6×30 6×32 Tube Fuses |

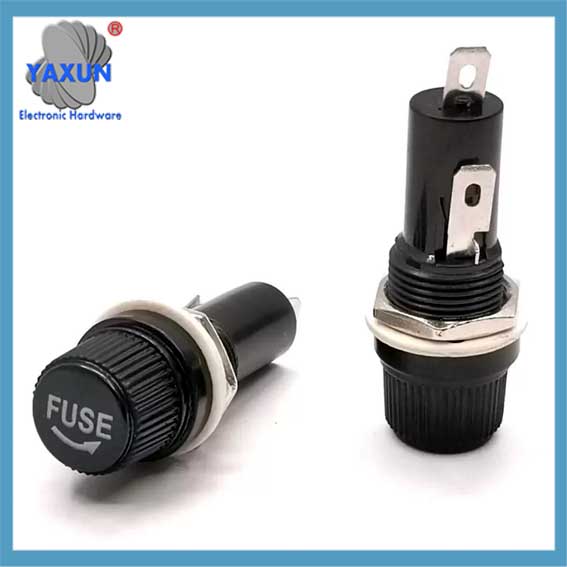

 China Custom of R3-13 Fuse Holder R3-13 Panel Mount Fuse Holders |

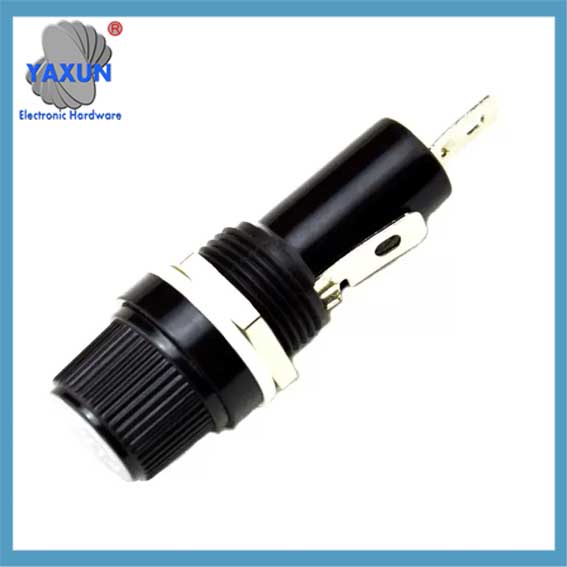

 R3-13 Single Pole Mini Fuse Holder – Screw Cap 10A 250 VAC TUV |
| Name: | Sicherungshalter, Sicherungsblock | Mount-Typ: | Panel |
| Nennspannung: | 250V Ac | Nennstrom: | 10A |
| Angewendet auf: | 6×30 6×32 3AG Fuses | RoHS-konform: | Ja |
| Body: | Phenolic | Terminal: | Nickel Plated Brass |
| Cap Type: | Screw Mount | Fire Retardant Grade: | 94V-1 |
| Länge: | 52.3 Mm | Cut-Out Dia: | 15.2 13.4mm |
| Kontaktwiderstand: | Max 20mΩ | Lnsulation Resistance: | DC500V 100mΩ Min |
| Hohes Licht: | 3AG Panel Mount Fuse Holders, 52.3mm Panel Mount Fuse Holders, UL Heavy Duty Fuse Block | ||
Produktbeschreibung
R3-13 250V 10A Fuse Holder UL Certified Fuse Block for 6×30 6×32 Tube Fuses
| Cap Design | Terminals |
| Finger-grip knob Screw Type |
Nickel-plated brass –
Solder/4.8mm Quick Connect |
Produktbeschreibung
Kontaktwiderstand:<0.02Oh
Withstanding Voltage:>AC3000V
lnsulation Resistance:DC500V 100mΩ Min
Electrical:Rated at 10A 250V AC
Insulating Body:Bakelite / phenolic
Konb:Screw-driver slot fuse extractor type with nickel-plated copper. Spring loaded.
Terminals:Nickel-plated brass,right angle teminal,solder type.
Operation temperature:-20C to +70C
| Artikel | R3-13 Fuse Holder |
| Mouting Style | Panel Mount |
| Max Rating | 10A 250V |
| Zertifizierungen | UL CSA RoHS |
| Fire retardant grade | 94V-1 |
| Body | phenolic or bakelite |
| Terminal | nickel plated brass |
| Panel thickness | <4.5mm |
| Cut-out diameter | 15.2mm |
| Mindestbestellmenge | 1000PCS |
Drawing of R3-13 fuse holder
Drawing of R3-13E 6X30MM fuse holder
1.Easy installation: reasonable deisgn with small volume. Quick soldering terminals make it easy to connect with wires.
2.Safety: It is compact and selfcontained. Safety insulated button and built-in fuse ensure safe operation.
3.Hohe Zuverlässigkeit: finely made metal parts and structure ensures the fuses are in full contact with the terminals.
