R3-53 Nut Mount Panel Fuse Block 6.4mm Terminals for 3AG Glass / Keramiksicherung
SCI R3-53AA Panel mounting chassis fuseholder with locking nut from SCI. for 3AG 6x30mm Glass / Ceramic Fuses 15A 250V ; Accepts 6.4 x 32mm fuses; Rated 15A 250V AC; Körper und Kappe aus Phenol geformt. SCI Cross Blade Terminal 6.3mm Mini Fuse Holder R3 -53 Recess Mount UL CSA. R3-53, FUSE HOLDER. φ 6.4*30mm φ 6.35*31.8mm. 15Ein 250-V-Wechselstrom, Schrauben, UL/CUL.

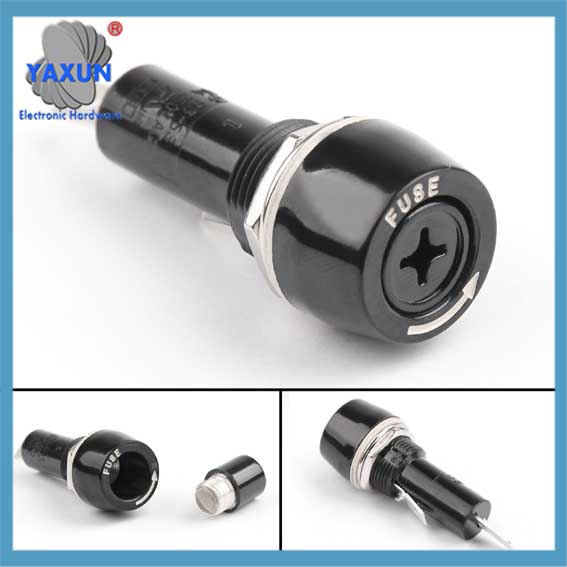

 SCI R3-53AA Panel Mount Chassis Fuse Holder |

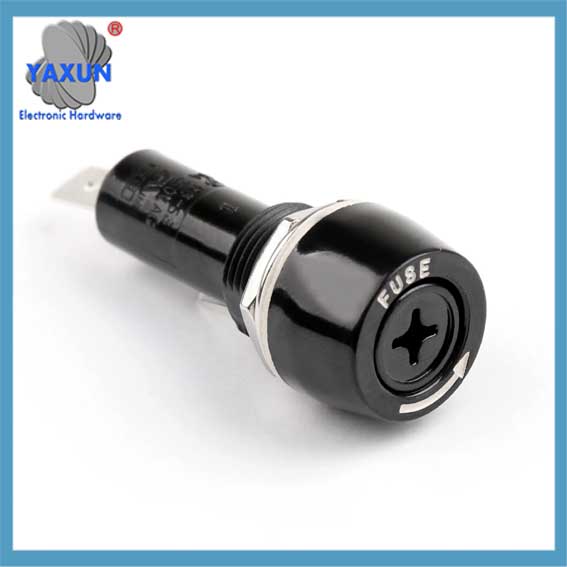

 R3-53 3AG 6x30mm Glass Tube Fuse Holder 15A Slotted |

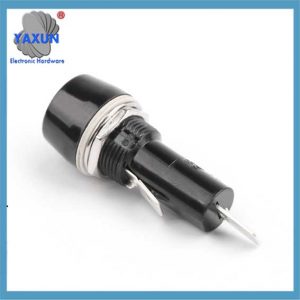

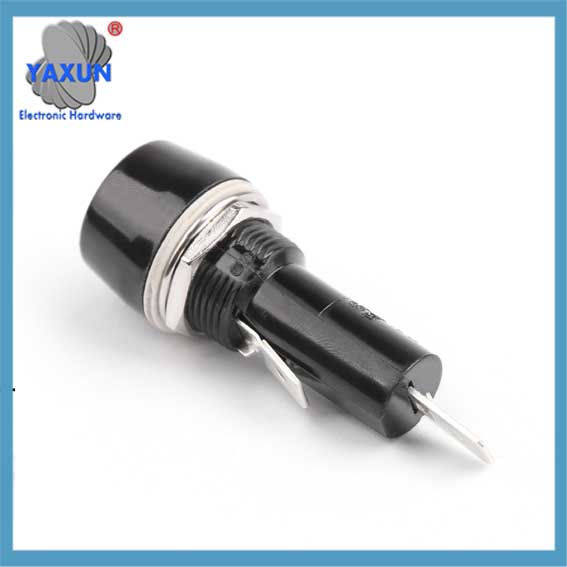

 R3-53 6-30mm 15A 250V Black Fuse Holder R3-53AA |
| Artikelname: | Sicherungshalter | Montage: | Panel Mount |
| Teil: | R3-53AA | Current Rated: | 15A |
| Geeignet für: | 6×30 6.3×30 6.3×32 3AG Fuses | RoHS-konform: | Ja |
| Körpermaterial: | Phenolic, UL 94V-1 | Terminal: | Nickel Plated Brass |
| Cap Type: | Screw Type, Tool Release | Länge: | 44.2mm |
| Voltage Rated: | 250VAC | Cut-Out Dia: | 15mm |
| Hohes Licht: | R3-53AA 3AG 6.3×30 Terminal Block Fuse Holder. | ||
Produktbeschreibung
R3-53 6×30 Fuse Holder Nut Mount 6.4MM Quick Connect Terminal Fuse Block 15A 250V for 6.3×30 6.3×32 3AG Fuses
Produktbeschreibung
The panel mounted fuse holders are convenient for inspection and repair, and no need to disassemble the machine to replace the fuses.
This type of panel mount fuse holders are specially designed for 3AG glass fuses. It can eliminate the possibility of electric shock from the installed fuses. These shockproof fuse holders have a low and short body. It has a finger grip and anti-twist function, which eliminates the interruption of the circuit when the knob is accidentally pressed. Products comply with UL certification.. The maximum voltage of the product is 250VAC, and the maximum rated current of the fuse is 15A.
Merkmale
Elektrische Bewertung:15Ein 250 V
Applied to 6×30 6.3×30 6.3×32 3AG fuses
Körper:phenolic, UL 94V-1
Mounted by nut, tool release
Screw type cap
6.4 quick connect terminal, nickel plated brass
Kompaktstruktur
| Artikelname | R3-53AA Fuse Holder |
| Montageart | Panel |
| Terminal Width | 6.4mm |
| Screw Size | M15 |
| Max Diameter | 20mm |
| Länge | 55.5mm |
| Cut-out diameter | 15mm |
| Mindestbestellmenge | 1000PCS |
Drawing of R3-53 fuse holder
