RS PRO 5x20mm Cartridge Fast~slow Blown Fuses with lead

Funktion, material and characteristics of 5x20mm Cartridge Fast~slow Blown Fuses: The origin of the name of the fuse is a vivid reflection of its function and value.

Sicherung: refers to the protected electrical, which plays the role of overcurrent safety protection and risk avoidance. It is generally presented in the form of wire or strip, so it is called a fuse.

In terms of material, fuses are generally of two types: pure metal and alloy. The fuses we usually use are generally lead-antimony alloy, aluminum-magnesium alloy, gold wire, usw.

No matter what type of fuse, it plays the role of overload protection under the influence of these two factors and characteristics.

The first characteristic is resistivity. When the current is large, it can generate a large amount of heat in a short time, which promotes fuse protection.

The second characteristic is the melting point, which needs to be lower than the temperature that the protected electrical appliances and circuits can withstand to fuse.

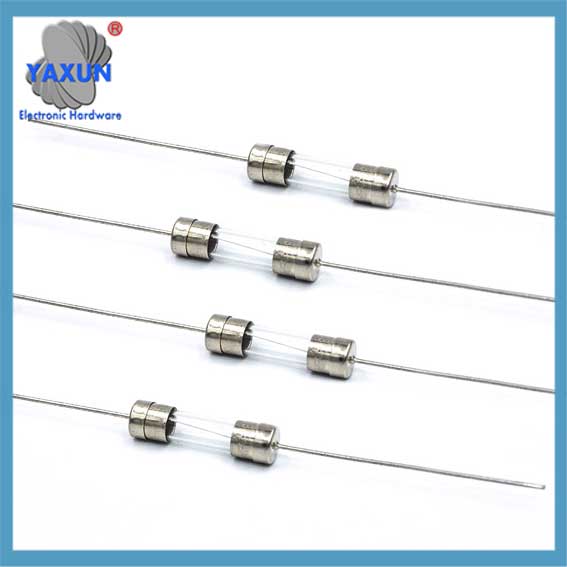

5x20mm Cartridge Fast~slow Blown Fuses with Axial lead

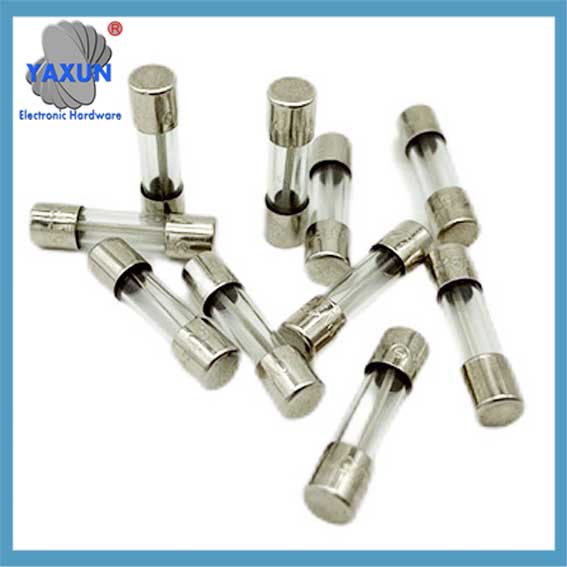

S520 5 mm cartridge fuse mA to 20 A Fast-acting

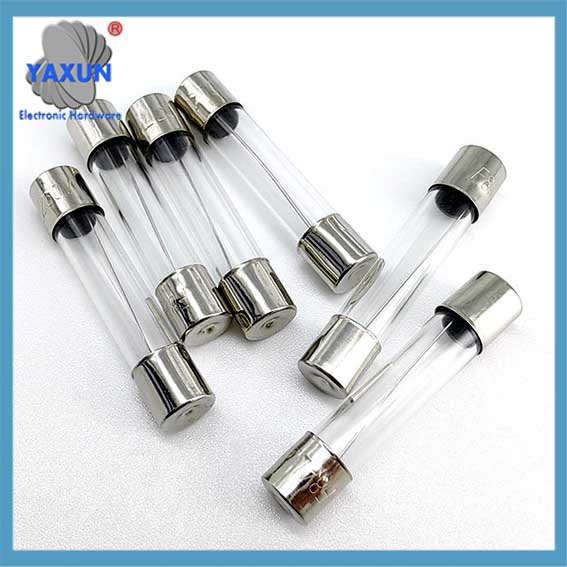

Mini Slow Blow 500mA 250V Glass Fuse 5x20mm Time Delay

Through the characteristics of resistivity and melting point, we found that the fuse has the function of an electrical safety valve, so it was invented and promoted by people.

Produktname: 5*20mm glass tube fuse
Product size: 5*20mm
Material: Glas, nickel-plated copper
Nennstrom: 250mA~10A
Nennspannung: AC250V/125V
Complies with: cURus, PSE

Product details
Time-current characteristics: fast blow (F)
Breaking capacity: 100A@125/250VAC, 200A@250VAC, 10KA@125VAC
Standard: UL 248-14
Zertifizierungen: cURus, PSE
Material: Shell-glass tube, Metal cap-nickel-plated brass, Lead cap-nickel-plated cap, Tinned copper wire
Arbeitstemperatur: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering); 350℃≤3 seconds (manual soldering)
Soldering temperature bearing capacity: 260℃, 10 Sekunden; 280℃, 5 Sekunden
Storage conditions: +10℃ ~ +60℃; Annual average relative humidity ≤75%, relative humidity reaches 95% for no more than 30 Tage
