SCI R3-18 30A 600V Panel Mount Fuse Holder for 10x38mm Fuses
SCI R3-18 Panel Mount Chassis Fuse Holder for 10x38mm Glass Ceramic Fuses 30A 600V. Maximum Rated Current: 30A. Frame and cap: phenolic (UL flame:94V-1). Terminal:nickel plated brass. Mounted by screws. Leading The Industry in Product Availability. World’s Largest Selection of R3-18 Fuse Holder Available for Immediate Shipment. World’s Largest Selection. Broadest BOM Coverage. Same Day Shipping.
SCI R3-18 Panel Mount Chassis Fuse Holder for 10x38mm Glass Ceramic Fuses 30A 600V. Maximum Rated Current: 30A. Frame and cap: phenolic (UL flame:94V-1). Terminal:nickel plated brass. Mounted by screws. Leading The Industry in Product Availability. World’s Largest Selection of R3-18 Fuse Holder Available for Immediate Shipment. World’s Largest Selection. Broadest BOM Coverage. Same Day Shipping.

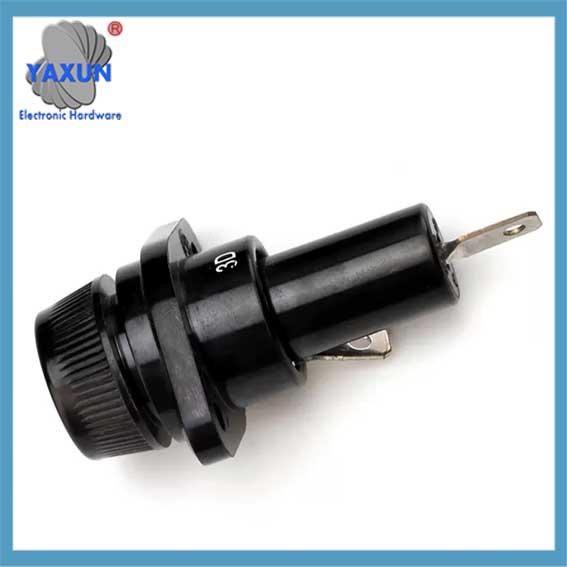

 SCI R3-18 Panel Mount Chassis Fuse Holder For 10x38mm Glass Fuses 30A TR |

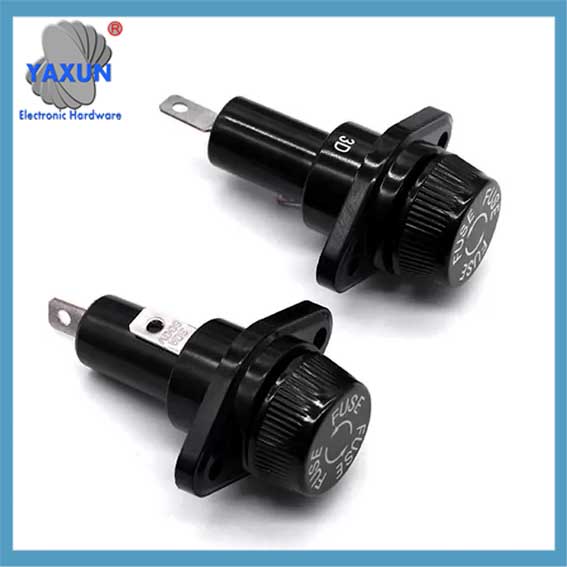

 R3-18 10x38mm 5AG Heavy Duty Panel Mount Fuse Block 600V 30A |

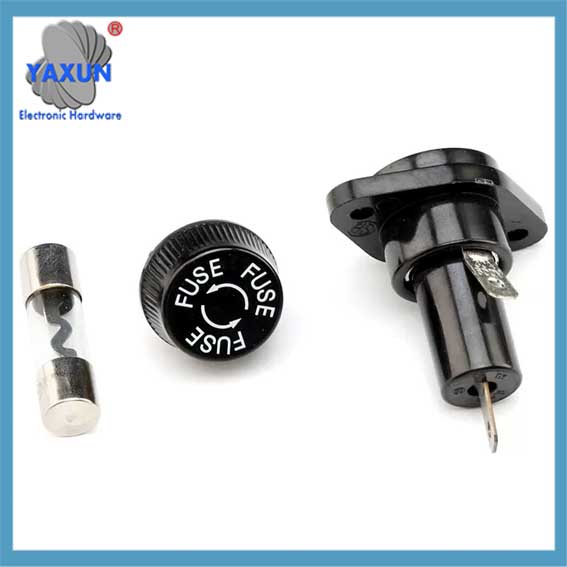

 R3-18 R3-41 Screw Type Panel Mount Fuse Holder 30A 600V for 10x38mm Glass Ceramic Fuses |
| Artikelname: | Sicherungshalter | Mount-Typ: | Panel Mount |
| Teile-Nr.: | R3-18 | Voltage Rated: | 600V |
| Current Rated: | 30A | Suitable For: | 10×38 5AG Fuses |
| RoHS-konform: | Ja | Körpermaterial: | Bakelite |
| Terminal: | Tin Plated Brass | Knob Type: | Bayonet |
| Länge: | 44.2mm | Cut-Out Dia: | 15mm |
| Hohes Licht: | 10x38mm Panel Mount Fuse Block, 600V Panel Mount Fuse Block, 5AG Heavy Duty Fuse Holder | ||
Produktbeschreibung
R3-18 10.3×38.1 Fuse Holder 600V 30A Panel Mounted Fuse Block 10x38mm 5AG Heavy Duty Fuse Holder
Produktbeschreibung
The panel mounted fuse holders are convenient for inspection and repair, and no need to disassemble the machine to replace the fuses.
This type of panel mount fuse holders are specially designed for 10×38 fuses with heavy duty. It can eliminate the possibility of electric shock from the installed fuses. These shockproof fuse holders have a low and short body. It has a finger grip and anti-twist function, which eliminates the interruption of the circuit when the knob is accidentally pressed. Products comply with UL certification.. The maximum voltage of the product is 600V, and the maximum rated current of the fuse is 30A.
Merkmale
Elektrische Bewertung:600V 30A
Applied to 10×38 5AG fuses
Bakelite body
Fuse Insert: Bayonet-type knob, fuse extractor type
with Nickel plated copper alloy insert
Terminations: Tin plated Copper alloy with spring
loaded 1/4″quick connect/solder terminals
| Artikelname | R3-18 Fuse Holder |
| Montageart | Panel |
| Terminal Width | 6.4mm |
| Terminal thickness | 0.8mm |
| Mounting hole diameter | 4.5mm |
| Max Width | 44.7mm |
| Länge | 73.5mm |
| Cut-out diameter | 22.2mm |
| Mounting hole distance | 33mm |
Drawing of R3-18 fuse holder
