Sci R3-22 Panel Mount Chassis Fuse Holder For 6x30mm Fast / Slow break Fuses
R3-22 Panel Mount Fuse Holder 6x30mm 12V DC 250V AC Screw Cap Fuse Holders with Pre-Soldered Wires and Fast-Blow Glass Tube Fuses. Panel Mount / Blocks. FUSE HOLDER, R3-22, 6x32mm FUSE W/SCREW CAP CSA. All pictures are for illustrative purposes only.

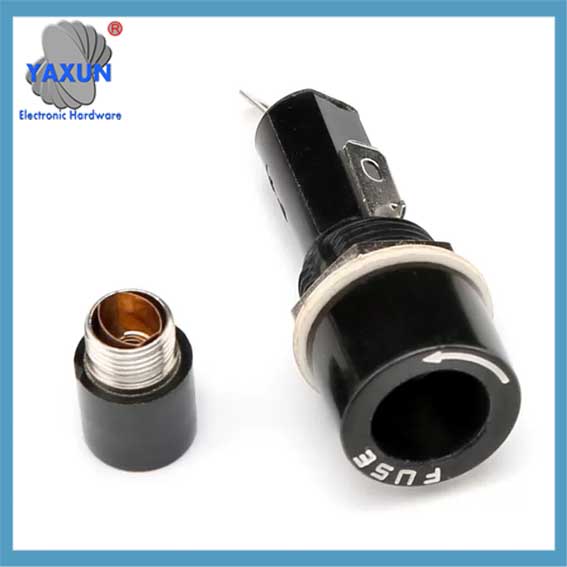

![]() Replacement Fuse R3-22 10A 250V Sci Fuse Holder for 6x30mm Fuse |

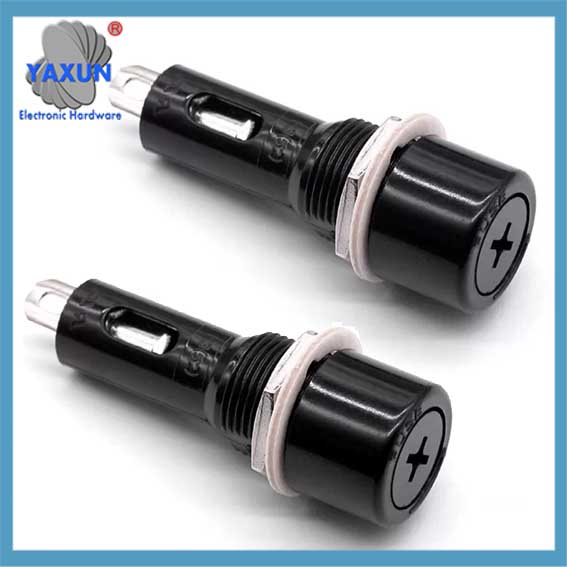

![]() R3-22 Panel Mount Fuse Holder for 3AG 6x30mm fuse |

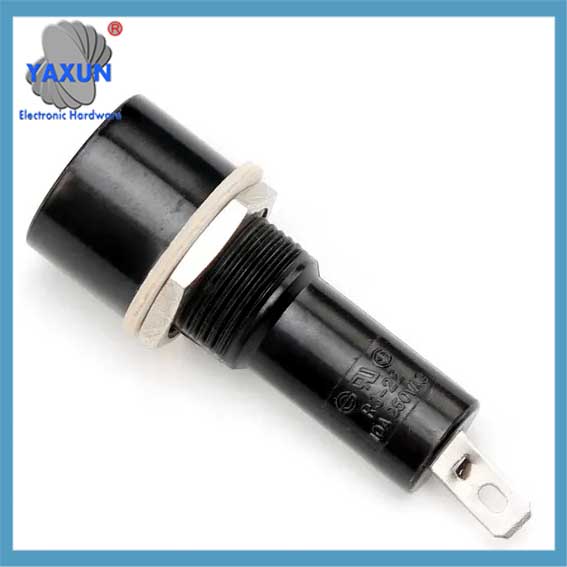

![]() R3-22 Fuse Holder 10A 250V Panel Mounted for 6x30mm 6*32 Sicherung |
Artikelname: | R3-22 Fuse Holder | Montage: | Panel Mount |
Teil: | R3-22 | Voltage Rated: | 250 V AC |
Current Rated: | 10A | Geeignet für: | 6×30 6.3×30 6.3×32 3AG Fuses |
RoHS-konform: | Ja | Körpermaterial: | Phenolic Resin |
Terminal: | Nickel Plated Brass | Cap Type: | Bakelit |
Länge: | 43.9mm | Cut-Out Dia: | 15mm |
Hohes Licht: | R3-22 Bayonet 10A 43.9mm Panel Fuse Holder |
Produktbeschreibung
R3-22 6×30 Fuse Holder Panel Mount Bayonet Cap Fuse Block Solder Terminal for 6.3×30 6.3×32 3AG Fuses
Produktbeschreibung
The panel-mounted fuse holder is convenient for inspection and repair, and does not need to disassemble the machine to replace the fuse.
Merkmale
Elektrische Bewertung:10Ein 250 V
Applied to 6×30 6.3×30 6.3×32 3AG fuses
Insulating Body:phenolic resin
Konb: Insert style fuse extractor type with nickel plated brass insert. Spring loaded.
Terminals:Nickel plated brass, solder type, straight terminal
Anti-vibration design eliminates accidental electric shocks for operators
Kompaktstruktur
Artikelname | R3-22 Fuse Holder |
Montageart | Panel |
Terminal Width | 4.25 mm |
Terminal thickness | 0.4 mm |
Cap Diameter | 18 mm |
Länge | 43.9 mm |
Cut-out diameter | 15 mm |
Mindestbestellmenge | 1000PCS |

Drawing of R3-22 Panel Mount Chassis Fuse Holder
