SL-703D ATO ATC ATU Plug-In Blade Fuse Holder 32V 30A Panel Mount

Standard ATO ATC ATU Blade Fuse Holder Panel Surface Mount Blade Fuse Seat for Car Van Motorcycle Motorhome Scooter Quad Boat Marine Tractor 12V 30A. Protect the wiring and electrical equipment for vehicles from short circuit, overload, usw. Standard blade fuse holder is made of plastic and metal feet, which is durable.

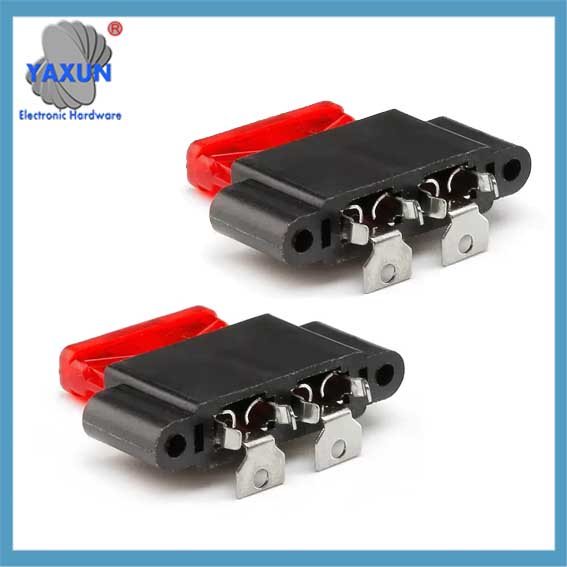

30A ATC Plug In Fuse Holder 32V Panel Mount ROHS

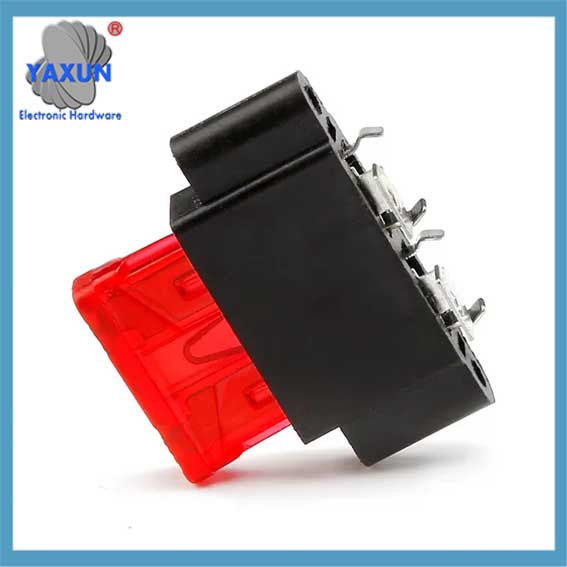

PCB Welding JEF-703D Cross Automotive Fuse Block For Car

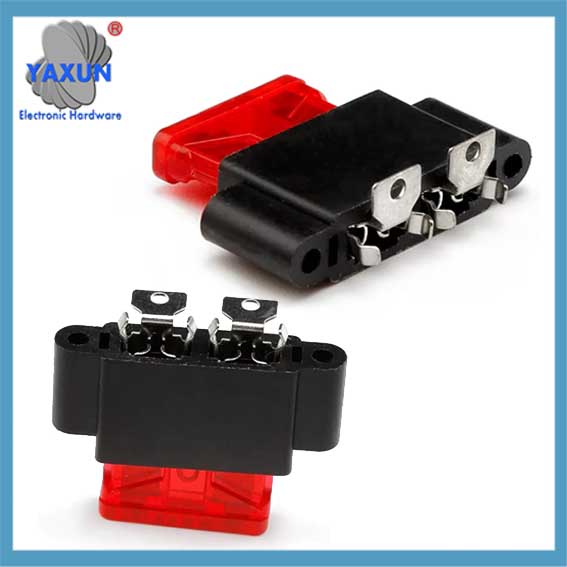

SL-703D ROHS Automotive Blade Fuse Holder Nylon

Artikelname:	SL-703D Blade Fuse Holder	Mount-Typ:	Panel
Nennspannung:	32In DC	Aktuelle Bewertung:	30A
Angewendet auf:	Medium Blade Fuses	RoHS-konform:	Ja
Körpermaterial:	Nylon	Terminalmaterial:	Nickle Plated Brass
Terminaldicke:	0.4 Mm	P/N:	703D
Hohes Licht:	SL-703D ATO ATC ATU 32V Plug In Fuse Holder

Produktbeschreibung
SL-703D ATO ATC ATU Plug-In Blade Fuse Holder 32V 30A Panel Mount Fuse Holder JH-703D JEF-703D Fuse Block
Produktbeschreibung
For ATO ATC ATS Medium Blade Fuses

Artikel	SL-703D Fuse Holder
Mouting Style	Panel
Max Rating	30A 32V
Environmental	RoHS-konform
Body Color	Schwarz
House material	PA66
Terminal material	nickel plated brass
Termnial thickness	0.4mm
Body thickness	7mm
Länge	31mm
Mounting hole dia	2.3mm

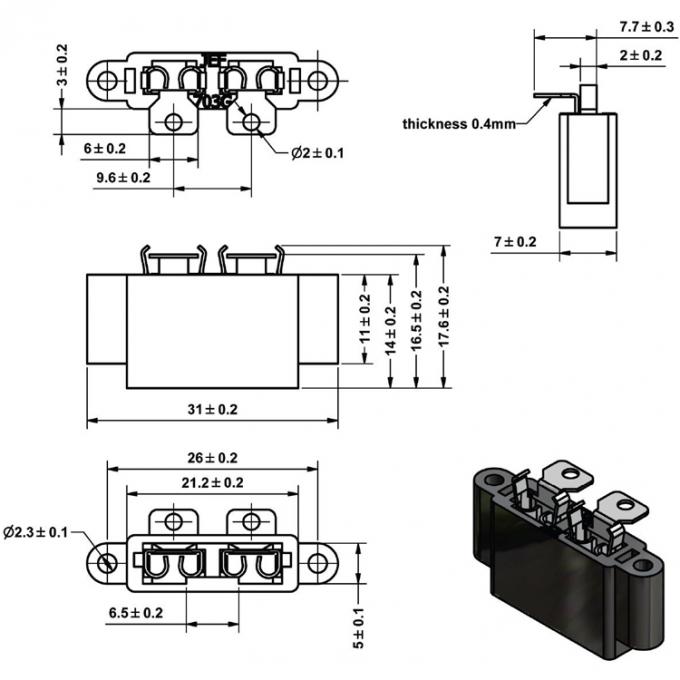

Drawing of SL-703D Blade Fuse Holder

Blade Type Fuse Sizes Dimension

Blade Type Fuse Sizes

Blade size	Blade group	Dimensions L × W × H	Common ratings (maximum current)
Mikro2	GEEIGNET, ATR	9.1 × 3.8 × 15.3 mm	5, 7.5, 10, 15, 20, 25, 30
Mikro3	ATL	14.4 × 4.2 × 18.1 mm	5, 7.5, 10, 15
LP-Mini (niedriges Profil)	APS, ZU	10.9 × 3.81 × 8.73 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini	APM, Geldautomat	10.9 × 3.6 × 16.3 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A
Regulär	APR, ATC, ATO, ATS	19.1 × 5.1 × 18.5 mm	1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi	APX	29.2 × 8.5 × 34.3 mm	20, 25, 30, 35, 40, 50, 60, 70, 80, 100,

Farben & Bewertungen

Farbe	Aktuelle Bewertung
Schwarz	1 A
Grau	2 A
Violett	3 A
Rosa	4 A
Bräunen	5 A
Braun	7.5 A
Rot	10 A
Blau	15 A
Gelb	20 A
Transparent	25 A
Grün	30 A
Blaugrün	35 A
Orange	40 A
Rot	50 A
Blau	60 A
Bernsteinfarben/braun	70 A
Transparent	80 A
Violett	100 A

Anwendungen
Auto, Boot, LKW, SUV, Motorrad, usw.

Versandbedingungen:
EXW, DDU, DDP, C&F, FOB

Versandarten:
Internationaler Express, Auf dem Luftweg, Auf dem Seeweg
Auswahl der Sicherungs- und Halterlösung
Der erste Schritt besteht darin, die folgenden Fragen zu beantworten:
• Will the fuse need to accessible for replacement?
• How often will the fuse need to be replaced?
• Should the end customer of the appliance have access to change the fuse?
• Should the fuse only be accessible from outside the appliance?
• How much is available to spend on safety and reliability?
