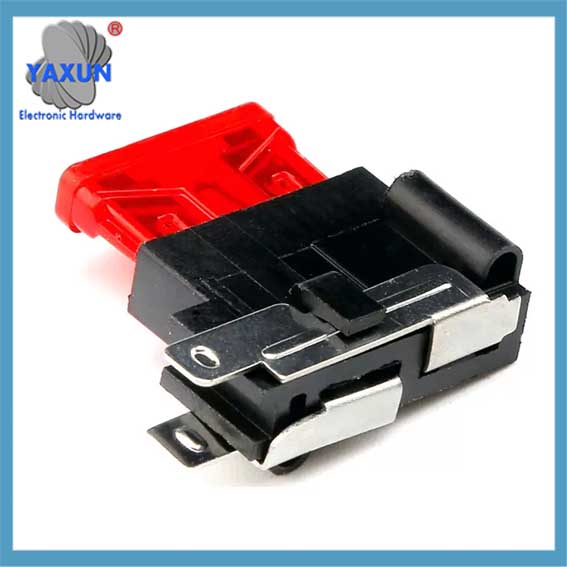

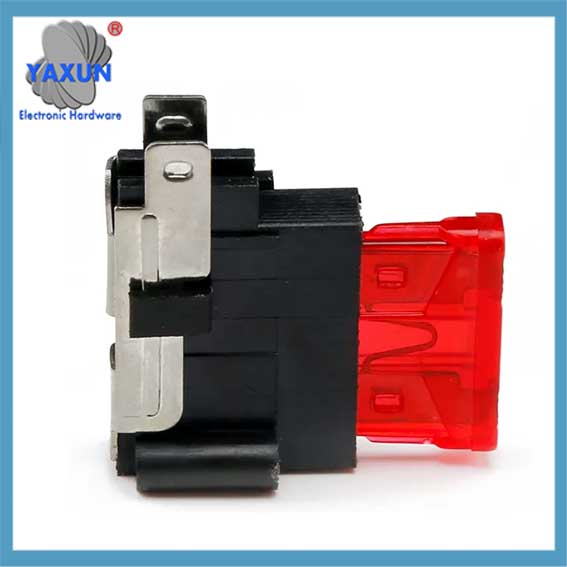

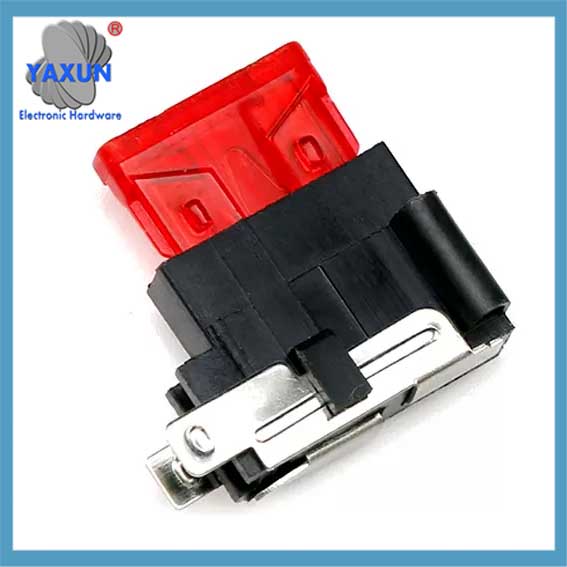

SL-703E ATO ATC ATU Plug In Blade Panel Mount Fuse Holder 32V 30A
Panel mount blade fuse holder for ATO/FKS/ATC/ATN fuse. Specification: Electric: Max. 20A32V. Insulation Body: Nylon. Contacts: 0.4mm Brass tin plated. We’re professional sl-703e regular pcb mount fuse holder manufacturers and suppliers in China, specialized in providing high quality customized blade fuse holder.
Panel mount blade fuse holder for ATO/FKS/ATC/ATN fuse. Specification: Electric: Max. 20A32V. Insulation Body: Nylon. Contacts: 0.4mm Brass tin plated. We’re professional sl-703e regular pcb mount fuse holder manufacturers and suppliers in China, specialized in providing high quality customized blade fuse holder. SL-703E fuse holder is a plug-in fuse terminal used for fixing, conducting and facilitating the replacement and installation of electronic components.
Item Name: | SL-703E Blade Fuse Holder | Mount Type: | Panel |
P/N: | 703E | Voltage Rating: | 32 Vdc |
Current Rating: | 30A | Applied To: | ATO Blade Fuses |
RoHS Compliant: | Yes | Body Material: | Nylon |
Terminal Material: | Messing | Terminal Thickness: | 0.5mm |
Hohes Licht: | Nylon SL-703E 29mm Blade Fuse Holders RoHS |
Produktbeschreibung
SL-703E ATO ATC ATU Plug In Blade Fuse Holder 32V 30A Panel Mount Fuse Holder JH-703E JEF-703E Fuse Block
Produktbeschreibung
For ATO ATC Blade Fuses
Item Name | 703E Fuse Holder |
Mouting Type | Panel |
Electrical Rating | 30A 32V |
Body Color | black |
Body material | PA66 |
Terminal material | nickel plated brass |
Length | 29 mm |
Width | 18 mm |
Thickness | 15 mm |
Mounting hole diameter | 1.6 mm |
Blade Type Fuse Specification
Colors & Ratings
Color | Current rating |
Black | 1 A |
Grey | 2 A |
Violet | 3 A |
Pink | 4 A |
Tan | 5 A |
Brown | 7.5 A |
Red | 10 A |
Blue | 15 A |
Yellow | 20 A |
Transparent | 25 A |
Green | 30 A |
Blue-green | 35 A |
Orange | 40 A |
Anwendungen
Car, Boat, Truck, SUV, Motorcycle, usw.
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
Express, By Air, By Sea
Q1: What are your main products?
A1: fuses, fuse holders, Thermoschalter, circuit breakers
Q2: How long is your delivery time?
A2: It depends on your qty. Most of the items are available within 15 Tage.
Q3: How can I get a sample? Is that for free?
A3: You are always welcome for requesting samples. Most of the samples are free of charge. But you will have to bear the express cost.
Q4:How can I get a more competitive price?
A4:Usually our quotation is made based on the order qty. You need to increase your qty if you demands lower prices.We can’t sacriface the quality for lower pricing and profit.
Q5:How do you control your quality system?
A5: We have enough number of QC staff at every stage from adopting materials, productionion, packing to loading, They are on for 7/24.
Q6:How long is your warranty period?
A6: Normally you will have 1-year warranty for most of our products.
Item Name | 703E Fuse Holder |
Mouting Type | Panel |
Electrical Rating | 30A 32V |
Body Color | black |
Body material | PA66 |
Terminal material | nickel plated brass |
Length | 29mm |
Width | 18mm |
Thickness | 15mm |
Mounting hole | 1.6mm dia |
