Kleiner motorischer thermischer Beschützer & Temperaturregelschutzschalter

Der kleinste der Welt TB02, KW-C1, 17AM ist eine Zeitverzögerung thermischer Beschützer für Motor- /Batteriepackungen Überhitzungsschutz. KW-C motor thermal protector is a device that prevents a motor from overheating and catching fire by automatically turning off the motor’s electricity when it detects excessive heat. Motor thermal protectors are typically installed inside the motor. It is designed to motor achieve stable, reliable and long service life.

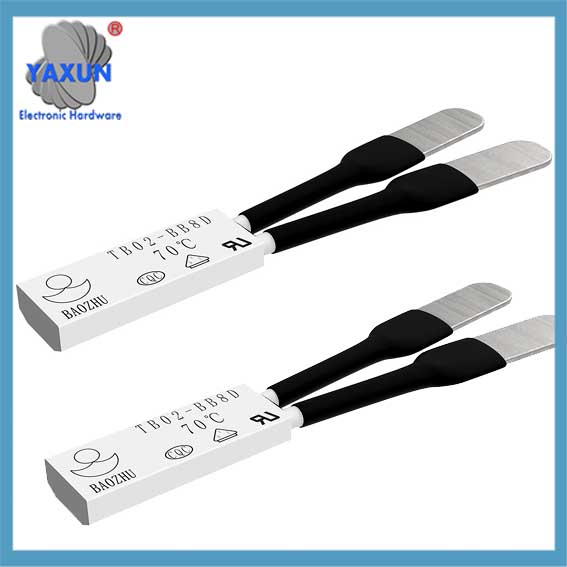

Kleiner TB02 17AM Motortemperatur-Schutzschalter

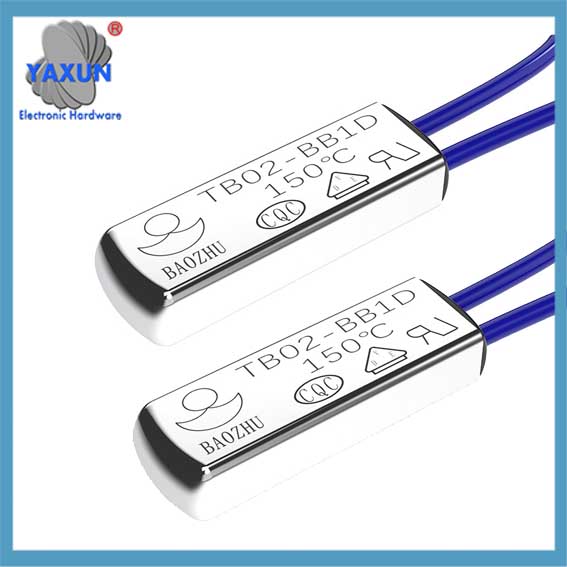

Kleine motorische thermische Beschützersonde mit Kabelbaugruppe

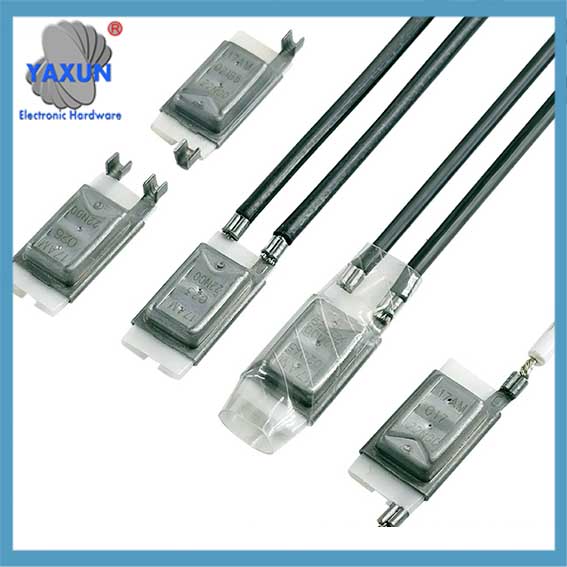

17am032A5 Motor Overheat Protection Temperature Sensor Control Switch

TB02, KW-C1 motor thermal protector is a device that prevents a motor from overheating and catching fire by automatically turning off the motor’s electricity when it detects excessive heat. Thermal protectors are typically installed inside the motor.
Thermal protectors work by monitoring the heat generated by the motor and interrupting the line power when it exceeds a safe operating temperature. Once the motor cools down, the thermal protector resets and the motor can be used again.
Other types of motor protection include:
Overcurrent protection: Protects the motor if it exceeds normal current limits
PTC thermistor sensor: A common temperature sensor used in motors that increases resistance as the temperature increases
Thermal protectors are also used in other electrical equipment, such as transformers and heating devices.

TB02 Series Motor Thermal Protector Features:
Miniature size with a compact structure
Niedriger Widerstand
Positive make and break with snap-action disc
High switching contact rating
Conductive bimetal construction
Repeatable temperature performance over life
Heat resistant plastic case
Gasketed case suitable for impregnation processes
Current and temperature sensitivity for maximum additional time delay reset function according to demand power 30 Second automatic reset
Jump type double metal sheet with high reliability and repeatability
Simple and convenient installation
Cantilever structure without flashing
The cantilever structure current self heating effect is weak to facilitate the use of customer distribution
Can increase the self function
Preset calibration temperature
Can be customized to customers requirements

TB02 Series Motor Thermal Protector Applications:
Batteriepackungen
Vacuum cleaner motor
Gleichstrommotor
Air conditioner motor

TB02 Series Motor Thermal Protector Technical Parameters
Contact rating: AC250V 11A, AC115V 13A – 10,000 Zyklen DC24V 15a, DC12V 15a – 10,000 Zyklen
Standard operating temperature: 45℃ ~ 160 ℃ (Per Level 5 °C)
Operating temperature tolerance: ± 3 °C, ± 5 ℃ ± 8 ℃
Reset temperature tolerance: ± 10 ℃, ± 15 ℃
Maximum ambient temperature: 180℃
Certificates: UL / VDE / CQC / ISO9001
Applicable Voltage: AC 0~250V, DC0~24V
Lead Wire Voltage: AC660V

Custom Motor Thermal Protector Size:

Custom Motor Thermal Protector Open temperature and reset temperature sheet:
