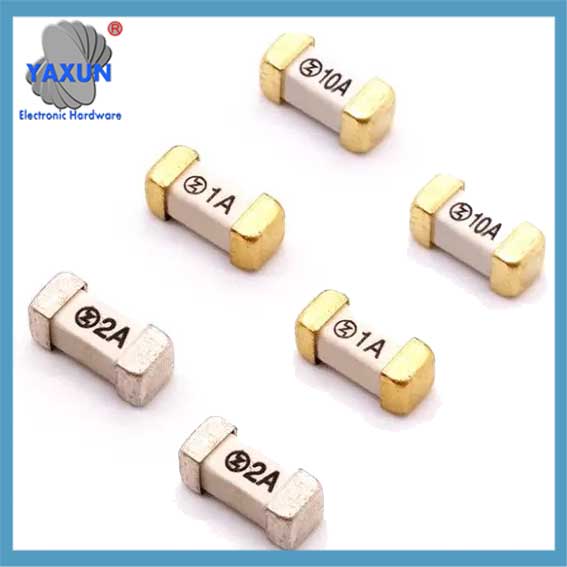

SMT SMD 1808 Fuse 250mA-15A – Fast Acting Ceramic Surface Mount 2410
SMT/SMD – 1808/2410 Fast Acting Fuse – Wire-In-Air (WIA) square-shaped surface mount fuse 6.1mm x 2.69mm x 2.69mm – Rated to 250V (250mA, 500mA, 1A, 2A, 3A, 5A) – Rated to 125V (8A, 10A, 12A, 15A) .
Item Name: | 1808 SMD Fuse Fast Acting Ceramic Fuse Surface Mount Chip For Com-Communications | Part No.: | SEF SSF SFE |
Blow Type: | Fast Acting, Quick Blow | Mounting Type: | Surface Mount |
Standard: | UL 248-14 | Body Material: | Keramik |
Cap Material: | Gold Or Silver Plated Brass | Fusing Material: | Cu-Ag Alloy |
Voltage Rating: | 125V 250V 300V | Current Rating: | 0.25A~15A |
Applied To: | 6.1×2.5×2.5mm | UL Listed: | Yes |
RoHS Compliant: | Yes | Halogen Free: | Yes |
MPQ: | 1000pcs Per Reel | ||
Hohes Licht: | 15A Surface Mount Fuses, 6.1mm Surface Mount Fuses, 1808 SMD Fuse |
Produktbeschreibung
1808 SMD Fuse Fast Acting Ceramic Fuse Surface Mount Chip for Com-Communications
Item | SMD Fuse |
Standard | UL |
Blow Type | fast blow |
Body Material | Keramik |
Fusing Material | Cu-Ag alloy |

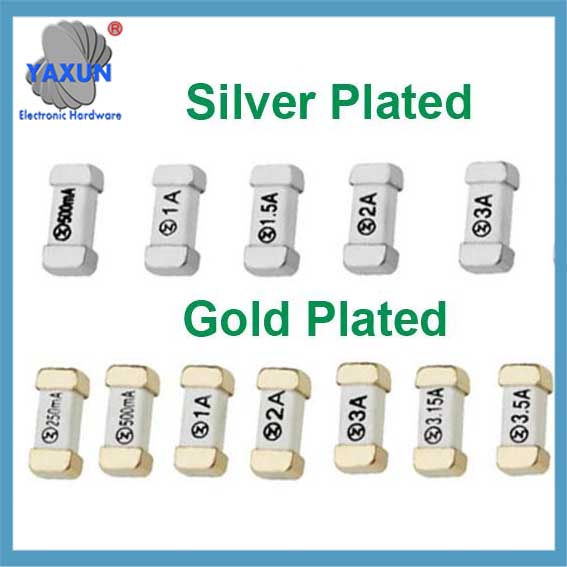

Cap Material | Messing, plated with silver or gold |
Voltage Rating | 250V 125V 300V |
Current Rating | 0.05A~15A |
Mounting Type | Surface Mount |
Breaking Capacity | 50A |
Size | 6.1×2.5.x2.5mm |
Certifications | CUL UL |
Product Features of Surface mount ceramic chip fuse
Kleine Größe(6.1mm*2.5mm)
Conflict free metals
Lead-Free and RoHS compliant
lnrush with stand capability
Wide range of current rating (125V/250V/30oV)
Wide range of current rating (50mA-15A)
Excellent environmental integrity
Wide rangc of current rating availablcLow temperature de-rating

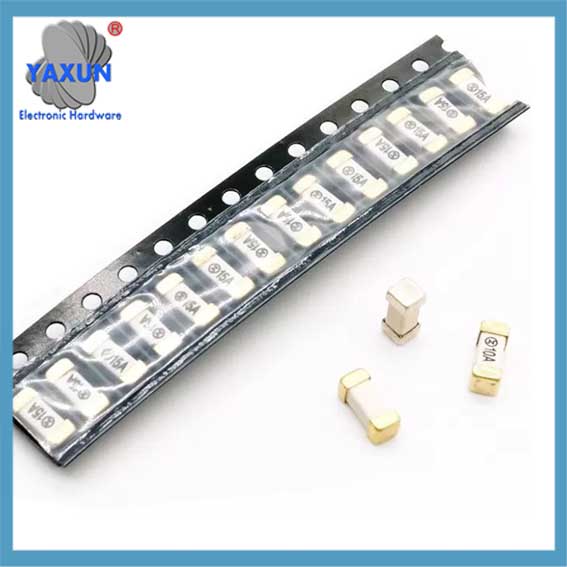

Tape and Reel for automatic SMT placement
Anwendungen
LED-Beleuchtung | Networking devices | Game console |
Notebook PC | PC server | Office equipment |
Battery devices | Cooling fan system | Digital camera |
LCD/PDP devices | Storage system | Medical equipment |
LCD backlight inverter | Telecom system | Automotive devices |
Portable Devices | Wireless base station | LED driver |
Power supply | White goods | lndustrial equipment |
Operating Temperature: -55℃ to +125℃ (Consider de-rating)
Stored condition: at temperature of +10℃~60℃, relative humidity ≤ 75%.
A:Soldering pot temperature: 260℃ Max; Solder dwell time: <5s (Wave Soldering)
B:Solder Iron Temperature: 350±5℃, heating time: 1~2s. (Hand Soldering)
Drawing of the 1808 2410 250V 300V SMD fuse
Electrical Characteristics at 25℃
Ampere Rating | % of Current Rating | Blowing Time |
0.05A~15A | 100% | >4 Std. |
0.05A~15A | 200% | <120sec |
Normal amperes: 250mA 315mA 375mA 0.4A 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.6A 2A
2.5A 3A 3.15A 3.5A 4A 5A 6.3A 7A 8A 12A 15A (125V 250V 300V)
Notiz: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
(2) The current values used for calculating I2T should be within the standard 10In.
(3) The TUV certification only for 250VAC and 125VDC; the CQC, KC certification only for 250V; the cURus certification for all voltage.
(4) 250mA No sand filling
Average Current Curve (I-T Curve)
