Tamura/NEC SF Metallgehäuse 15A Temperatursicherung

Das Funktionsprinzip der AUPO / Tamura / Die NEC SF-Thermosicherung basiert auf der Wärmeausdehnung und den Leitfähigkeitseigenschaften des Materials. Wenn die Temperatur im Stromkreis auf die Nennauslösetemperatur der Sicherung ansteigt, Das Metallmaterial der Sicherung dehnt sich durch Hitze aus. Wenn diese Expansion einen bestimmten Grad erreicht, Dadurch steigt der Widerstand in der Sicherung stark an. The increase in resistance will cause the fuse to heat up rapidly, further accelerating the expansion of the metal material. When the expansion reaches a certain degree, the fuse will disconnect in the circuit, thereby protecting the circuit and equipment from damage due to overheating.

Unter normalen Umständen, when the current passes through the thermal fuse, the fuse will maintain a low resistance state and will not affect the circuit.

When overheating occurs in the circuit, the thermal fuse begins to work. Its metal material expands due to heat, causing the resistance inside the fuse to change.

As the resistance rises, the fuse temperature rises further, accelerating the expansion of the metal material.

When the metal material expands to a certain extent, the resistance inside the fuse will rise sharply, causing the current in the circuit to be cut off.

After the fuse is disconnected, a new fuse needs to be replaced to restore the normal operation of the circuit. This is because it is difficult for the metal material to return to its original state after expansion, so that the resistance always remains high.

2. Structural features
Thermal fuse is a temperature sensing circuit cutting device with the characteristic of one-time fusing, das ist, it only acts once at the fusing temperature and cannot be used again. Common types of thermal fuses include organic thermal fuses and alloy thermal fuses.

Taking the organic thermal fuse as an example, its structural features mainly include components such as temperature sensing block, compression spring and star spring. Wenn die Temperatur um die organische thermische Sicherung zu ihrer Betriebstemperatur steigt, the temperature sensing block will melt, and the compression spring will relax to make room, so that the star spring is pushed away to contact the pin, dadurch den aktuellen Pfad trennen. Auf diese Weise, the circuit will be permanently cut off.

Product Features of Thermal Fuse
SEFUSE temperature fuse installation precautions:
1. Beim Bleibiegen, it should be bent from a part more than 6 mm from the root; Beim Biegen, do not damage the roots and leads, and do not pull, drücken, or twist the leads forcibly.
2. Wenn die Thermosicherung mit Schrauben befestigt ist, riveting or binding posts, it should be able to prevent mechanical creep and poor contact.
3. The connecting parts should be able to work reliably within the working range of the electrical product without displacement due to vibration and shock.
4. When welding the lead wire, the heating humidity should be limited to a minimum, and no high temperature should be applied to the thermal fuse; Do not forcibly pull, drücken, or twist the thermal fuses and leads; after soldering, cool down immediately for more than 30 Sekunden.
5. The thermal fuse can only be used under the conditions of the specified rated voltage, current and specified temperature. Pay particular attention to the maximum continuous temperature that the thermal fuse can withstand.
Notiz: Nominal current, lead length and temperature can be designed according to customer requirements.

LE series Thermal Fuse (15A)

Produktmerkmale

Using temperature fuse metal casing and sense temperature organic particles.
Belonging unrecoverable type thermal fuses. Temperature fuse melting off, even if the surrounding temperature falls, it will not be turned on.
No lead (Pb) and cadmium (Cd), and comply with RoHS.
REACH does not contain the specified 46 categories SVHC (SVHC).

Product Size

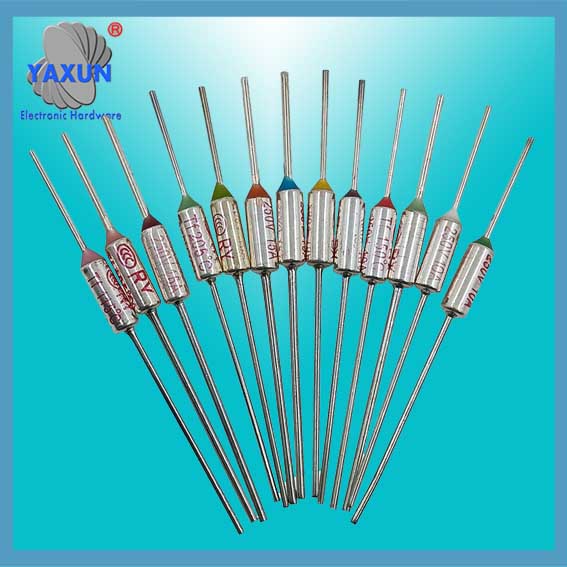

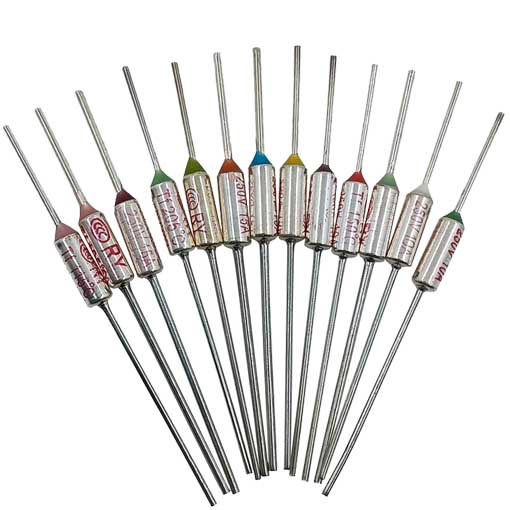

250V 15A Temperature fuse
