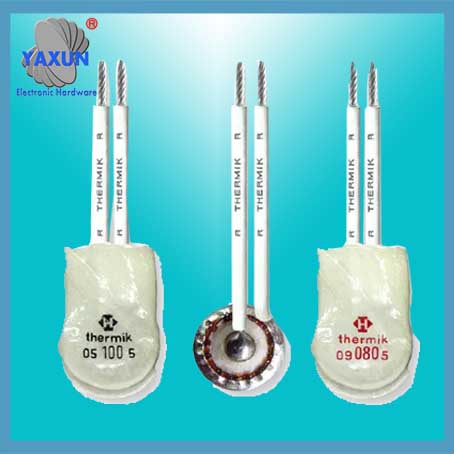

Thermik Druckbeständiger runder Wärmeschutz S01
Der Temperaturschalter (Wärmeschutz) Das von der Firma THERMIK hergestellte Produkt zeichnet sich durch seine geringe Größe aus, extrem hohe mechanische Belastbarkeit, hohe Schockfestigkeit, und hervorragende Stabilität. Der PTC-Thermistor zeichnet sich durch seine geringe Größe aus, schnelle Antwort, 4 Schutzschichten, Und 3 Köpfe in Reihe geschaltet. Es kann in der Dreiphasenspule des Motors vergraben werden und verschiedene Temperaturen schützen.
The PTC thermistors and thermal protectors produced by the German THERMIK company are stable products successfully developed in 1968. It enjoys a high reputation in the international market and is recognized as an excellent choice for protecting motors, Transformer, Vorschaltgeräte, Elektrowerkzeuge, usw. Der Temperaturschalter (Wärmeschutz) Das von der Firma THERMIK hergestellte Produkt zeichnet sich durch seine geringe Größe aus, extrem hohe mechanische Belastbarkeit, hohe Schockfestigkeit, und hervorragende Stabilität. Der PTC-Thermistor zeichnet sich durch seine geringe Größe aus, schnelle Antwort, 4 Schutzschichten, Und 3 Köpfe in Reihe geschaltet. Es kann in der Dreiphasenspule des Motors vergraben werden und verschiedene Temperaturen schützen. It can also protect key parts such as motor bearings and lubricants; in this field, THERMIK represents high quality, reliability and durability. Tempertur (TPQE): Thermik's first agent/rare distributor/first-level agent/authorized sales in China.
ST01 series temperature switch
Product advantages:
• Same thermal protection function, low price
• Obtained UL and TUV certification, breaking Germany's 30-year monopoly on temperature switches.
• Good airtightness, which can prevent product failure during the vacuum dipping process.
• Small size, suitable for being buried inside the coil.
• Metal shell, can withstand 50KG coil shaping pressure, has good thermal conductivity, and is sensitive to temperature.
• Pure temperature products, the current does not flow through the bimetal, no current heating effect, genaue Temperaturregelung.
Technologie:
• Integrate global supply chain resources, and the bimetallic sheet uses materials from the world's largest manufacturer, the United States EMS. The shell adopts the stamping and forming technology of German supplier.
• The reed is made of Japanese NGK material, which is processed and produced by Japanese stamping parts suppliers.
• The shell and reed are silver-plated, which greatly reduces the contact resistance.
• The core components of the two pieces adopt fully automated molding equipment and temperature screening tunnel kiln production testing, with good consistency and stable performance.
Technische Parameter
With insulation sleeve | S01 | |
1 | Contact type | Usually closed |
2 | Rated switching temperature (NST) every 5 ℃ | 60-200℃ |
3 | Standard tolerance | ±5K |
4 | Reset temperature range according to UL / CSA at rated switching temperature | 30K±15K |
5 | Applied voltage ... AC ... / DC | ...500V ~/...100V= |
6 | Nennspannung, AC | 250V|500V |
7 | Nennstrom, alternating current cosφ = 1.0 | 2.5A|0.75A |
8 | Nennstrom, alternating current cosφ = 0.6 | 1.6A|0.50A |
9 | Number of switches in In and Un conditions | 10.000 |
10 | Current sensitivity in In | NEIN |
11 | Maximum switching current at 250V ~ / number of switching | 5.0A/2000 |
12 | Contact bounce time | < 1ms |
13 | Kontaktwiderstand (refer to MIL-Stand, R5757) | < 50mΩ |
14 | Impregnation resistance (according to Thermik test) | Fit |
15 | Vibration resistance at 10-60Hz | 100m/s2 |
16 | Casing pressure stability (special test to maximum) | 450N(45kg) |
17 | High voltage insulation (no C type) | 2 kV |
18 | Protection level | ICH |
19 | Standard connection | lead 0.25mm2 |
20 | Diameter d (mit / without insulation sleeve) | 9.4/9.0mm |
21 | Height h (mit / without insulation sleeve) | 4.8/4.3mm |
22 | Insulation sleeve length | 16mm |
23 | Schrauben / -length | - |
24 | Wrench size / maximum torque | - |
25 | Approved according to safety design | VDE.UL.BEAB.CSA.SEMKO |
AGENCY FILE NUMBER STANDARD NUMBER APPLICATION
UL E305764 873 Motorschutz
VDE 40016121 EN60730-2-2 Motor protection
TUV R50109800 EN60730-2-3 Lighting Protection
TUV R50110965 EN60730-2-9 Thermal cut-out
CB CN5785 IEN60730-2-2 Motor protection
CQC CQC05002013372 GB14536.1 GB14536.3 Motor protection Limit and regulating controls

ST01 Motorspulenschutz
