Water temp NTC thermistor sensors at household used in Water Heater Controller
Water temp NTC thermistor sensors In Probe variety of configurations for Water temperature sensing, measurement, detection, indicator, monitoring and control electric water heater, air conditioner, refrigerator, water fountain, induction cooker, coffee maker. Measurement range: -58 Zu 302 °F (-50 Zu 150 °C)
Water temp NTC thermistor sensors In Probe variety of configurations for Water temperature sensing, measurement, detection, indicator, monitoring and control electric water heater, air conditioner, refrigerator, water fountain, induction cooker, coffee maker. thermistor sensors can be assembled in housing in a variety of configurations for temperature sensing. Water NTC thermistor are used for temperature measurement, control and compensation with a range of -80°C to 150°C (-112°F to 302°F) and high sensitivity greater than -4% /°C at 25°C (77°F). Technical specification: NTC Thermistor Temperature Sensor Module · Operating voltage :- 3.3 ~ 5V DC · Temperature sense range :- -25 ~ +80 ºC ·
|
Water temp NTC thermistor sensors used in Water Heater Controller |

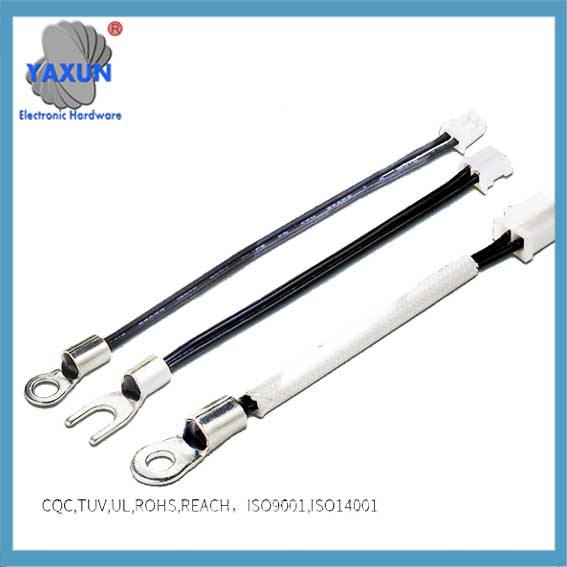

NTC thermistor sensors used in electric water heater |

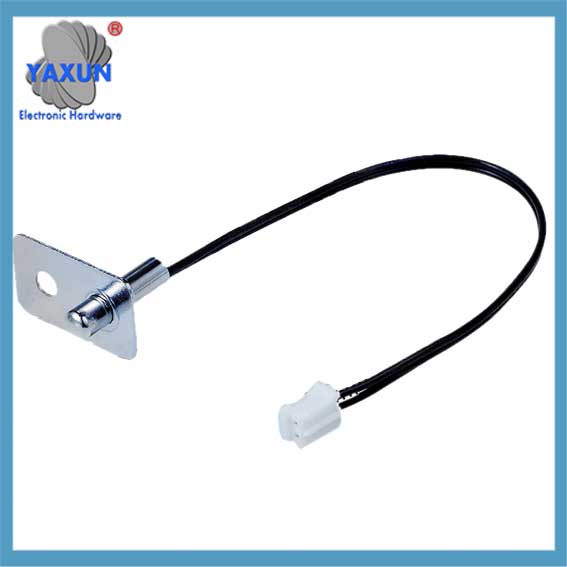

NTC thermistor sensors used in refrigerator |
Beschreibung
| TYPE: | Water temp NTC thermistor sensor | B25/50: | 3950K, 3977K, 3435K |
| Sensor Head: | O Ring, Fork Metal, Injected Tube, NPT, M16, tainless Steel Tube | Draht: | CL2 PT4,#24 2466,#28 1332 |
| Verwendung: | Temperatursensor, Instant Water Heaters, water heater, air conditioner, refrigerator, water fountain, induction cooker, coffee maker | Pn (rated Power): | 50mw |
| Hohes Licht: | EPCOS NTC thermistor Sensor, 3977K NTC Temperature Sensor, Thermistor Water Temperature Probe | ||
Water temp NTC thermistor sensors Waterproof Probe Wire 1M Customized Theory Signal Output Origin.
| Specification Name | Scope | Detection Condition |
| R25(nominal resistance value) | 1k, 2k, 2.7k, 3k, 5k, 10k, 15k, 20k, 30k, 40k, 47k, 50k, 100k, 200k | Constant temperature 25℃±0.05℃ |
| R25 Permissible variance(%) | ±1,±2, ±3, ±5, ±10 | Constant temperature 25℃±0.05℃ |
| B25/50 or B25/85(material coefficient)(thermal-sensitivity index) | 2500~5000K | Constant temperature 25℃±0.05℃
Constant temperature 85℃±0.05℃ |
| B25/50 Value permissible variance(%) | ±1,±2 | Constant temperature 25℃±0.05℃
Constant temperature 50℃±0.05℃ |
| ∫(dissipation coefficient) | ≥0.8mw/℃ | Static in the air |
| T(thermal time constant) | ≤25S | Static in the air |
| Ta(Working temperature) | -30℃~+120℃ | |
| Pn (rated power) | 50mw | within working temperature |
| Case and head | Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, tainless Steel Tube, or according to client’s drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client’s request. | |
| Terminal | Can be riveted according to the requirements of various terminals |
The sensor’s connection terminal and housing size and lead length can be customized according to customer requirements
Services
1. Your inquiry will be replied within 24 Std.;
2. Well-trained and experienced staff are always at your service.
3. Unique design products and many private mold product are waiting for your choice.
4. Strictly protect your private information and your ideas of design.
FAQ
Q1. Can I have a sample order for NTC, PT100,PT1000, RTDs, and Ds18b20 SENSOR?
A: Ja, we welcome sample order to test and check quality. Mixed samples are acceptable.
