Waterproof 1-Wire DS18B20 Digital Temperature Sensor

This product is the waterproof version of the TPE overmolding 1-Wire DS18B20 temperature sensor for Arduino, specifically designed for temperature measurements in distant or humid environments. This digital temperature sensor has a wide temperature range of IP68 -55°C to 125°C, but we recommend keeping the included PVC / TPE jacketed cable below 110°C to ensure optimal performance and durability.

All weather/submersible digital temperature probe, specifically designed to be used in the field Arduino. This sealed digital temperature probe lets you precisely measure temperatures in wet environments with an advantage over linear temperature sensors calibrated in Kelvin, as the user is not required to subtract a large constant voltage from the output to obtain convenient Centigrade scaling.

The overmolding DS18B20 waterproof temperature sensor is a digital sensor that maintains signal integrity even over long distances. It utilizes a 1-Wire interface, connecting to a central microprocessor through a single wire (along with a ground wire). This design simplifies installation and connection, making it particularly suitable for arduino systems operating within the 3V~5.5V range.

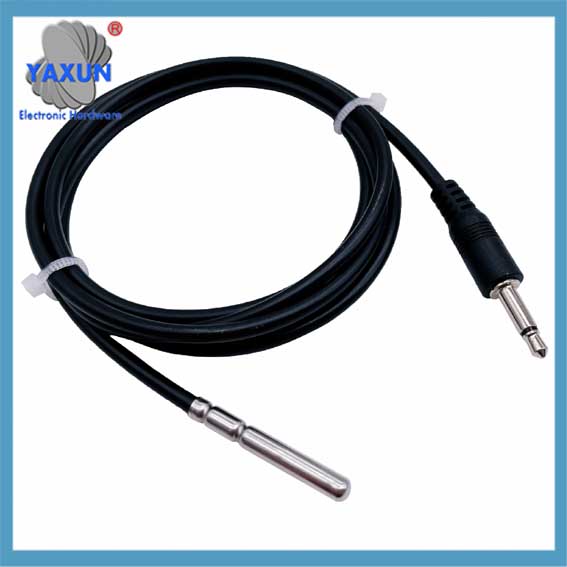

DS18B20 Temperature Sensor with Overmolding 6.3 Audio Plug

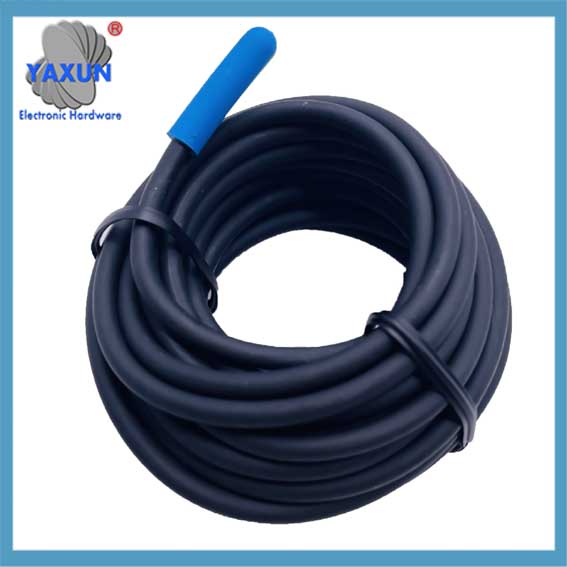

Overmolding temperature sensor probe for refrigerators, freezers

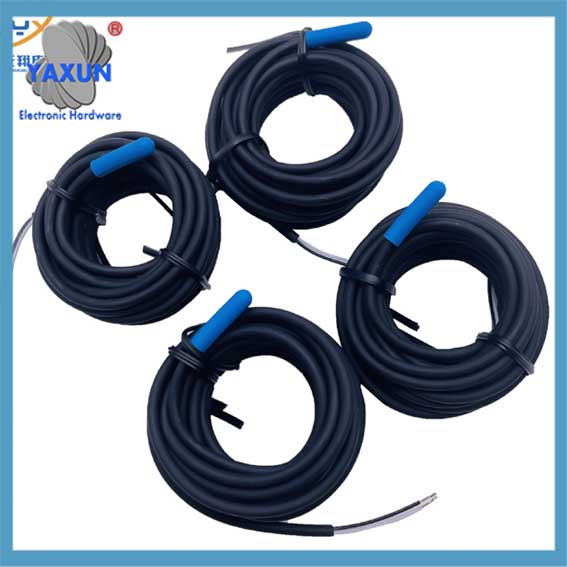

Waterproof DS18B20 temperature sensor plug, Steckverbinderbaugruppe

Each DS18B20 temperature sensor has a unique silicon serial number, useful for verifying its authenticity and enabling the connection of multiple sensors on a single 1-Wire bus. This feature facilitates the installation of temperature sensors in various locations for applications like indoor temperature monitoring, smart home integration, object temperature detection, greenhouse farming, and more.

With our plugable terminal, there is no soldering required to connect to our IO Expansion Shield. This allows you to conveniently integrate the DS18B20 temperature sensor into your project, saving you time and effort.

This is a pre-wired and waterproofed version of the DS18B20 sensor all weather/submersible temperature probe, specifically designed to be used in the field.

The DS18B20 does not require any external calibration or trimming to provide typical accuracies

Multiple thermometers can be connected on the same wire because every one has it’s own internal address.

Merkmale
Usable temperature range: -55 bis 125°C (-67°F bis +257°F)
9 Zu 12 Bit wählbare Auflösung
Unique 64 bit ID burned into chip
Multiple sensors can share one pin
±0.5°C Accuracy from -10°C to +85°C
Temperature-limit alarm system
Usable with 3.3V to 5V power/data
Waterproof

Output leads: red (VCC), blue or yellow (DATA), Schwarz (GND)

Technical performance
1. Technical performance description:
①. Unique single-wire interface mode. When DS18B20 is connected to a microprocessor, it only needs 1-Wire to realize two-way communication between the microprocessor and DS18B20.

②. Temperature measurement range: -55℃～+125℃, inherent temperature measurement error (note, not resolution, it was wrong before) 1℃.
③. Support multi-point networking function. Multiple DS18B20 can be connected in parallel on the only three wires, and up to 8 can be connected in parallel to realize multi-point temperature measurement. If the number is too large, the power supply voltage will be too low, resulting in unstable signal transmission.
④. Working power supply: 3.0~5.5V/DC (data line parasitic power supply can be used).
⑤. No peripheral components are required during use.
⑥. The measurement results are transmitted serially in 9~12-bit digital quantity mode.
⑦. The diameter of the stainless steel protective tube is Φ6.
⑧ 、Applicable to temperature measurement of industrial pipelines of various media of DN15~25, DN40~DN250 and equipment in narrow space.
⑨、Standard installation thread M10X1, M12X1.5, G1/2” optional.
⑩ 、Overmolding PVC cable direct outlet or German ball-type junction box outlet, easy to connect with other electrical equipment. DS18B20+ and Maxim Integrated Information Manufactured by Maxim Integrated, DS18B20+ is a temperature sensor.

Application range:
This product is suitable for temperature measurement and control in freezers, granaries, storage tanks, telecommunications rooms, power rooms, cable ducts, usw.
Temperature measurement and control of industrial equipment in narrow spaces such as bearings, cylinders, textile machinery, Klimaanlagen, usw.
Automotive air conditioners, Kühlschränke, freezers, and medium and low temperature drying ovens, usw.
Heat measurement of heating/refrigeration pipelines, household heat measurement of central air conditioners, and temperature measurement and control in industrial fields.

Model Specifications
Model Temperature Measurement Range Mounting Thread Cable Length Applicable Pipes
TS-18B20 -55~125 None 1.5 M
TS-18B20A -55~125 M10X1 1.5m DN15~25
TS-18B20B -55~125 1/2”G ​​Junction Box DN40~ 60

Dienstleistungen
1. Ihre Anfrage wird innerhalb von 24 Stunden beantwortet 24 Std.;
2. Gut ausgebildete und erfahrene Mitarbeiter stehen Ihnen jederzeit zur Verfügung.
3. Einzigartige Designprodukte und viele private Formenprodukte warten auf Ihre Wahl.
4. Schützen Sie Ihre privaten Daten und Ihre Gestaltungsideen streng.
FAQ

Q1. Kann ich eine Musterbestellung für NTC haben?, PT100,PT1000, RTDs, und Ds18b20 SENSOR?
A: Ja, Wir freuen uns über eine Musterbestellung, um die Qualität zu testen und zu überprüfen. Mischproben sind akzeptabel.
