Waterproof 3950K NTC Temp Sensor Probe for Digital Temperature Transmitter Extension Cable
China Custom 1, 2, 5 Meter Waterproof Temp Sensor Probe, Edelstahl 3950 NTC thermistor Probe, Digital Temperature Transmitter Extension Cable. Notiz: NTC temperature sensor parameters can be customized according to customer requirements!
Kategorie: Temperatursensor
Stichworte: NTC-Sensor, NTC-Thermistorsensor, Temperatursensor, Temperatursensorkabel, Temperatursensorsonde

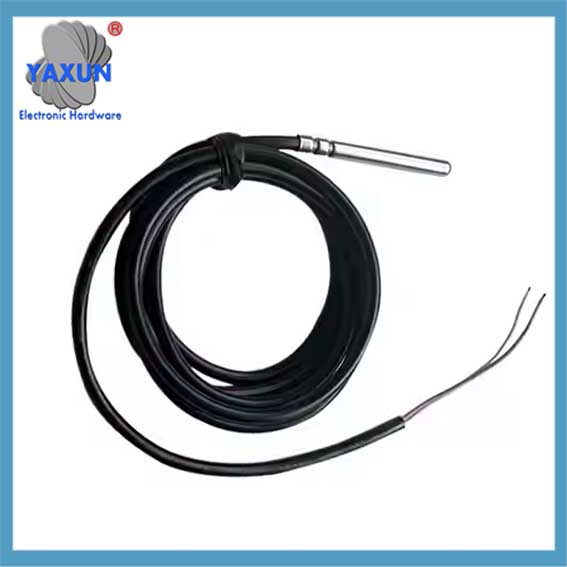

China Custom 1, 2, 5 Meter Waterproof Temp Sensor Probe, Edelstahl 3950 NTC thermistor Probe, Digital Temperature Transmitter Extension Cable.
Temp Sensor Probe Technology: YAXUN smart sensors cable adopts sensitive and reliable NTC thermistor and connected by PVC wire, 1, 2, 5, 10 meter lead length (3.28ft), available for remote temperate measuring and controlling.
Wide Measuring Range: Our temperature probe is able to tolerate the widest measuring range (-45°c to 125°c (-50℉ to 257℉)).

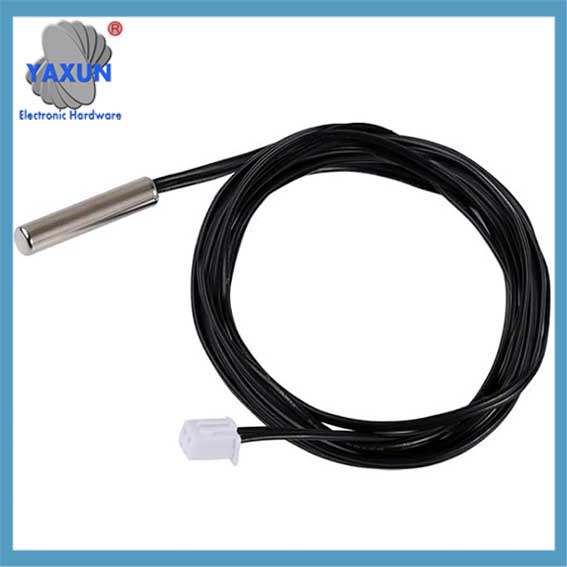

Temp Sensor Probe Stainless Steel Probe: This temperature sensor for car has 5*25mm stainless steel housing, which is waterproof, moisture-proof and anti-rust.
Temp Sensor Probe Wide Application: This multifunctional test probes can be used in household air conditioner, refrigerator, water fountain, drying box, constant box, usw.
Temp Sensor Probe Applicable Voltage Range: 3-5V. Applicable Current Range: 0-10 mA.
Temperature sensor introduction:
The temperature sensor is a high-precision, high-reliability NTC thermistor connected to PVC wire, Teflon wire and other wires. It is encapsulated into the required shape with insulating, thermally conductive and waterproof materials, which is convenient for installation and long-distance temperature measurement and control.
Product application range:
Temperature measurement and control of household air conditioners, car air conditioners, Kühlschränke, freezers, Wasserkocher, Wasserspender, Heizungen, dishwashers, disinfection cabinets, Waschmaschinen, dryers, dryers, medium and low temperature drying ovens, constant temperature ovens and other occasions.
Merkmale:
1: MF53 series products are NTC thermistor temperature sensors;
2: Wide resistance range: 1KΩ~500KΩ;
3: High resistance and B value accuracy, good consistency, interchangeable;
4: Good insulation, hohe Zuverlässigkeit, fast response speed;
5: Adopting double-layer sealing process, it has good insulation sealing and resistance to mechanical collision, bending resistance, and high reliability;
6: Can work stably for a long time (annual resistance drift rate ≤1‰);
7: Can be packaged according to the installation conditions used, which is convenient for users to install;
8: Betriebstemperaturbereich: -40~300℃;
l Product model description
MF 53 103 F 3950
① ② ③ ④ ⑤
① MF ——Negative temperature coefficient (NTC) thermistor code.
② 53——Various NTC thermistors with shell temperature sensors.
③ 103 —— The nominal resistance of the thermistor, indicating that the nominal resistance of the resistor is: 10×103 (Ω).
④ F—— The error (accuracy) of the resistance value is: F=±1%, G=±2%, H=±3%, J=±5%
⑤ 3950—— The thermal index (material coefficient) B value of the resistor is: 395×10(K)
Notiz: NTC temperature sensor parameters can be customized according to customer requirements!
Modell | Rated resistance value (R25) | B value | Operating temperatur | Dissipation coefficient (mW/℃) | Thermal time constant (S) | |
Resistance value
(KΩ) |
Allowable deviation
(± %) |
Nominal value(K) | ||||
MF53-102-3435 | 1 | ±1%
±2% ±3% ±5% |
3435 | -40℃
~ +300℃ |
≥2.0
In still air |
≤15
In still air |
MF53-202-3435 | 2 | 3435 | ||||
MF53-472-3950 | 4.7 | 3950 | ||||
MF53-502-3470 | 5 | 3470 | ||||
MF53-502-3950 | 5 | 3950 | ||||
MF53-682-3950 | 6.8 | 3950 | ||||
MF53-103-3435 | 10 | 3435 | ||||
MF53-103-3470 | 10 | 3470 | ||||
MF53-103-3600 | 10 | 3600 | ||||
MF53-103-3950 | 10 | 3950 | ||||
MF53-103-3977 | 10 | 3977 | ||||
MF53-103-4100 | 10 | 4100 | ||||
MF53-153-3950 | 15 | 3950 | ||||
MF53-203-3950 | 20 | 3950 | ||||
MF53-233-3950 | 23 | 3950 | ||||
MF53-303-3950 | 30 | 3950 | ||||
MF53-333-3950 | 33 | 3950 | ||||
MF53-40.27-3950 | 40.27 | 3950 | ||||
MF53-473-3950 | 47 | 3950 | ||||
MF53-503-3950 | 50 | 3950 | ||||
MF53-503-3990 | 50 | 3990 | ||||
MF53-503-4050 | 50 | 4050 | ||||
MF53-104-3950 | 100 | 3950 | ||||
MF53-104-3990 | 100 | 3990 | ||||
MF53-104-4200 | 100 | 4050 | ||||
MF53-204-3950 | 200 | 3950 | ||||
MF53-204-4260 | 200 | 4260 |
