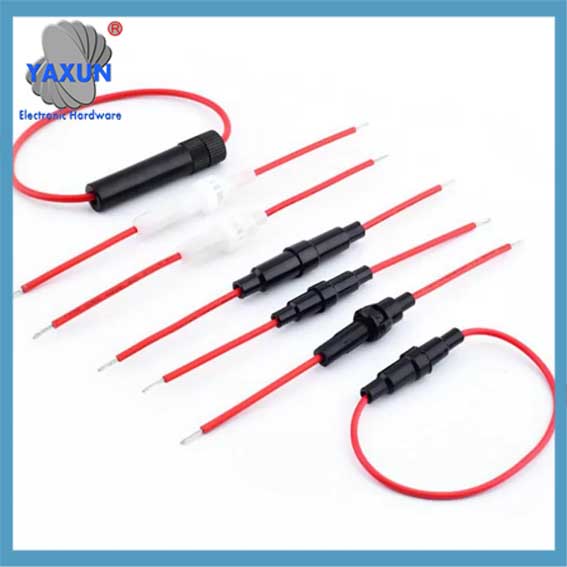

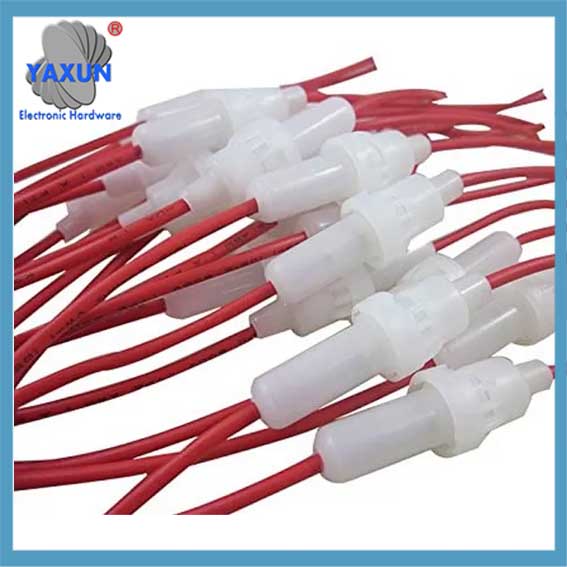

Waterproof Inline Fuse Holders Bayonet Type for 5.2×20 Glass & Ceramic Fuses
China Made from Custom high-quality Waterproof, fireproof plastic / Bakelite, our Bayonet Type 5.2×20 (1¼ x ¼ Fuses) Inline fuse holders are built to last and protect your car, Electrical appliances, boats ‘s electrical system.
Kategorie: Sicherungskastenhalter
Stichworte: Sicherungskastenhalter, Inline-Sicherungshalter
China Made from Custom high-quality Waterproof, fireproof plastic / Bakelite, our Bayonet Type 5.2×20 (1¼ x ¼ Fuses) Inline fuse holders are built to last and protect your car, Electrical appliances, boats ‘s electrical system.
Easy to Install: Our fuse holders With 18AWG 20AWG Cable are designed for easy installation, so you can get back on the road quickly and safely.
Sleek Design: Our fuse holders connectors and cables come in black and red, making them a stylish addition to your car’s engine compartment.
Perfect Fit: Our Inline fuse holders are designed to fit Inline 42.2 Mm /0.25″ Dia x 1.26″ L (5.2×20 mm) fuses, ensuring a perfect fit for your car,Electrical appliances, boats’s electrical system.
Item: | Fuse Holder | Mount Type: | Inline, In-line |
Voltage: | 250V | Aktuell: | 10A |
Applied To: | 5x20mm Fuses | RoHS Compliant: | Yes |
Body Material: | PP/PA66 | Terminal Material: | Messing |
Cap Type: | Bayonet Mount | Body Length: | 42.2 Mm |
Wire Gauge: | 18AWG 20AWG | Wire Length: | Customized |
Hohes Licht: | 5.2×20 Inline Fuse Holders, PP Inline Fuse Holders, 10A Waterproof In Line Fuse Holder |
Produktbeschreibung

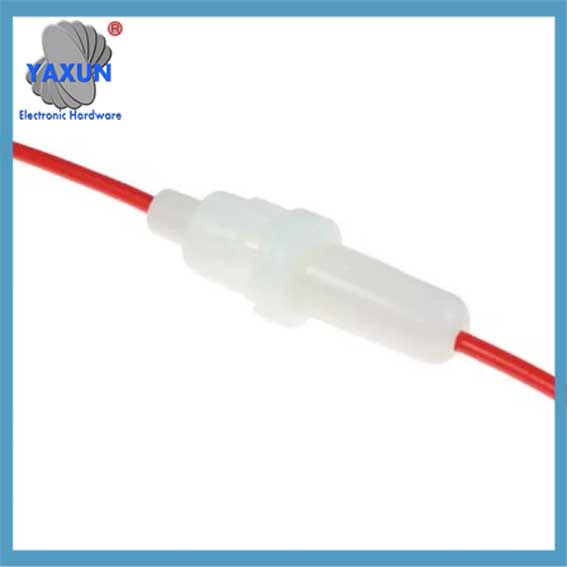

5.2×20 Tube Fuse Block In-Line Mount 5×20 White Bayonet Type Fuse Holder With 18AWG 20AWG Cable PP/Nylon Material
Produktbeschreibung
For 5×20 FUSES
Withstanding Voltage:>AC2000V/1min
lnsulation Resistance:≥100mΩ DV500V
Electrical:Rated at 10A 250V AC
Insulating Body: PA66, PP
Konb:Schrauben, Spring loaded.
Terminals:Messing
Ambient temperature:-20C to +125C
Item | 5×20 white Fuse Holder |
Mouting Style | In-line |
Max Rating | 10A 250V |
Certifications | RoHS |
Body Color | white |
House material | PP/Nylon |
Terminal material | Messing |
Body length | 42.2mm |
Hole diameter | 3.5mm |
Body diameter | 13.2mm |
Fearures of 5×20 In-line Mount Fuse Holder
1.Easy installation: reasonable deisgn with small volume.
2.Safety: Excellent electrical engineering material body and UL standard PVC cable ensure safe operation.
3.High reliability: finely made brass contacts and screw structure ensures the fuses are in full contact with the terminals.
Wide range and customized services
Fuses Amperes | 0.2A 0.315A 0.5A 1A 2A 3.15A 4A 5A 6.3A 8A 10A 12A 15A 16A 20A (UL) |
Wire Gauge | 18AWG 20AWG(UL1015 PVC) |
Custom Cable | length & color (upon request) |
Structure | body, terminal contacts x2, spring, wire, fuse |
Electrical rating | 250V 10A max |
Body Material | PP, nylon/PA66 |
Contact Material | Messing |
Wire Material | PVC and tinned copper |
