Συναρμολόγηση ανιχνευτή ανιχνευτή αισθητήρα της Κίνας για έλεγχο θερμοκρασίας

An NTC thermistor is a temperature sensor that uses the resistance properties of ceramic/metal composites to measure the temperature. Our full spectrum NTC thermistor is a resistance thermometer, or a resistor whose resistance is dependent on temperature. The term is a combination of “thermal” and “resistor”. It is made of metallic oxides, pressed into a bead, disk, or cylindrical shape and then encapsulated with an impermeable material such as epoxy or glass. Κατασκευαστής ανιχνευτή ανιχνευτή αντιστάσεων υψηλού επιπέδου-Ο Yaxun ειδικεύεται στο Thermistor με ευαισθησία θερμοκρασίας και προσόντα AEC-Q200. Tctr – Θερμίστορ πυκνότητας NTC. 47-1.6MΩ. Στενότερη ανοχή 1%. Β τιμή 2410K – 4800Κ.
Αισθητήρας θερμίστορας θερμοκρασίας-γραμμικά θερμίστορ με βάση το πυρίτιο με το ίδιο κόστος και μέγεθος παραδοσιακών θερμοστάτη NTC. Επιτύχετε αξιοπιστία του συστήματος υψηλής ακρίβειας με τους μικρότερους γραμμικούς θερμίστορ της βιομηχανίας.
Field-proven thermistor level-sensing technology with NPT mounting threads;
SP-M models temperature sensor are designed for use with ST-15 Control Monitors Electrical appliances, automobiles, aviation, small household appliances, toys;
Typical uses include storage tanks, double-containment piping trenches, and double-wall storage tank interstitial space monitoring;
Years of dependable, virtually maintenance-free operation;
Sensors can be easily extended to desired length at installation site using a 3/8” x 3/8” coupler and the required length of 3/8” NPT pipe.

Ender 3 Thermistor Sensor, Upgrade HT-NTC100K 3D Printer Thermistor Sensor: Thermistor temperature sensor. Metal head diameter: 3 mm, head length: 15 mm,cable wire length: 1 meter,connector: XH2.54 2PIN, （Suitable for heating blocks with holes of 3 mm*15 mm-3 mm*20 mm）;
Widly Compatibility: Product recommended operating temperature -50 °C ~ +280 °C, can replace the cartridge K-type thermocouple temperature sensor. Compatible with the heatblocks with 3 mm hole,όπως: V6 Volcano PT100 type heated block, και τα λοιπά;
Sensors is accurate: The best feature was the flexible and heat shielded probe leads to the copper sensor. Unlike the other with a nickel plated probe/heat shrink, this can be fitted in very tight spots without worry. Be sure you redo your PID calibration;
Long Service Life: Compared with the same type that are insulated with ordinary heat shrinkable tubes, ours uses glass fiber with a temp resistance of 400C degrees for insulation to avoid the possibility of thermal short circuit during high temp work;
Fit ALL-METAL HOTEND: Work for E3D-V6 Volcano PT100 Ender 3 series all-metal hotend such as spider-hotend,K1-red-Lizard-hotend,dragonfly-hot-end,voron-hotend etc.

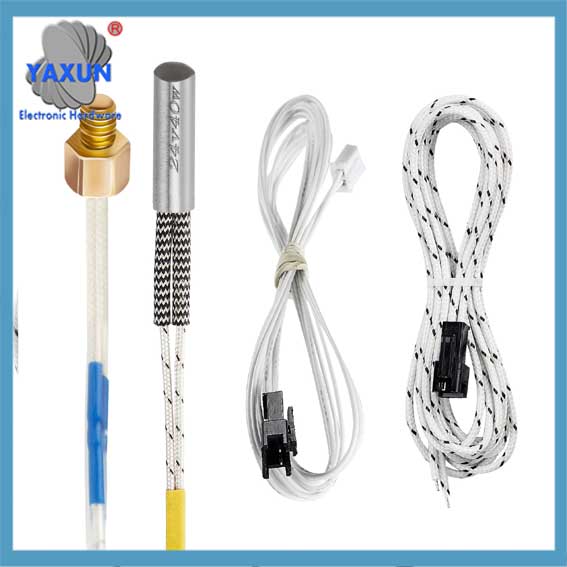

3D Θερμίστορ εκτυπωτή 100K NTC 3950 με 1 Μετρητής εκτεταμένο καλώδιο καλωδίων για το ender 3 V2 Pro CR10 και άλλα 3D εκτυπωτή Extruder Hotend

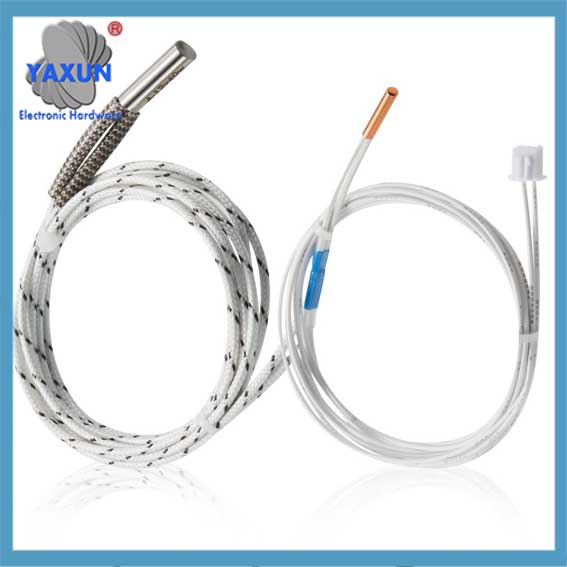

Heater NTC thermistor: with M3 Thread Stud thermistor，Fast-Plug Connector Compatible with 3/3 V2/3 Neo/3 V2 Neo/3S/3 PRO/5/5

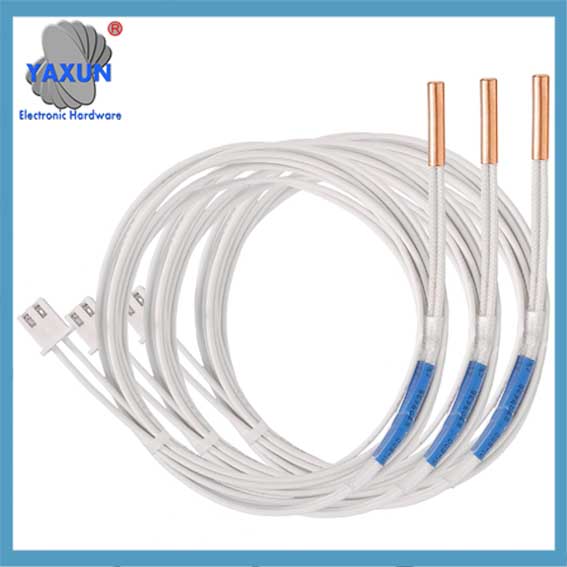

Ο αισθητήρας θερμίστορ NTC100K για την κρυπτογράφηση 3 V2 Αναβάθμιση 3x15mm 3950 Συμβατό με θερμίστορ

Radial Leaded Resin Coated NTC Thermistor Features
High measurement accuracy.
Tight tolerance on resistance and Beta value.
Fast response, small dimension.
Can operate in long time stability.
Nominal resistance @25C can be from R25 1kΩ–1000kΩ.
Typical resistance at 25C R25 1k ohm, 2k ohm, 2252 ohm, 3k ohm, 4.7k ohm, 5k ohm, 6.8k ohm, 10k ohm, 15k ohm, 20k ohm, 30k ohm, 40k ohm, 47k ohm, 50k ohm, 100k ohm, 150k ohm, 1000k ohm, και τα λοιπά.
Dissipation factor: ≥3.0 mW/C in still air.
Thermal time constant: ≤12 seconds in still air.
Εύρος θερμοκρασίας λειτουργίας: -45C — +125C.

Notes：□ in the part number for filling in resistance tolerance,
optional for ±1%(φά), ±2%(G), ±3%(H), or ±5%(J).
