PTF 70 Bakelite fuse holders, 10UN, panel mount fuse Box, for 5x20mm Fuse
The Stelvio Kontek PTF-70 is a panel mount fuse holder with a screw cap for use with 5 X 20 mm glass fuses with a UL rating of 10A at 250Vac and uses tab wire connections.
The Stelvio Kontek PTF-70 is a panel mount fuse holder with a screw cap for use with 5 X 20 mm glass fuses with a UL rating of 10A at 250Vac and uses tab wire connections. Fuse Box for panel mounting; Fuse carrier with screwdriver slot and screw socket; Matériel: Flameproof, glass-filled thermoplastic (PPOM).
 PTF 70 – Titulaire de fusible 5 X 20 mm 10MOhm 250V 10A Black |
 Screw Cap Panel Mount Fuse Holder, Accepts 5×20 mm Fuse |
 Stelvio Kontek PTF 70 Fuse holder; cylindrical fuses; 5x20mm; 10UN; on panel; noir |
| Nom de produit: | PTF-70 Panel Mount Fuse Holder | Courant nominal: | 10UN |
| Tension nominale: | 250V | Fuse Application: | Cylindrical Fuses |
| Fuse Size: | 5x20mm 5.2x20mm | Housing Material: | Bakélite |
| Material Feature: | Flame Retarded Plastic | Terminal: | Nickel Plated Copper |
| Taper: | Solder Type | Mounting: | On Panel |
| Souligner: | PTF-70 10A, 250V Panel Mount Glass Fuse Holder | ||

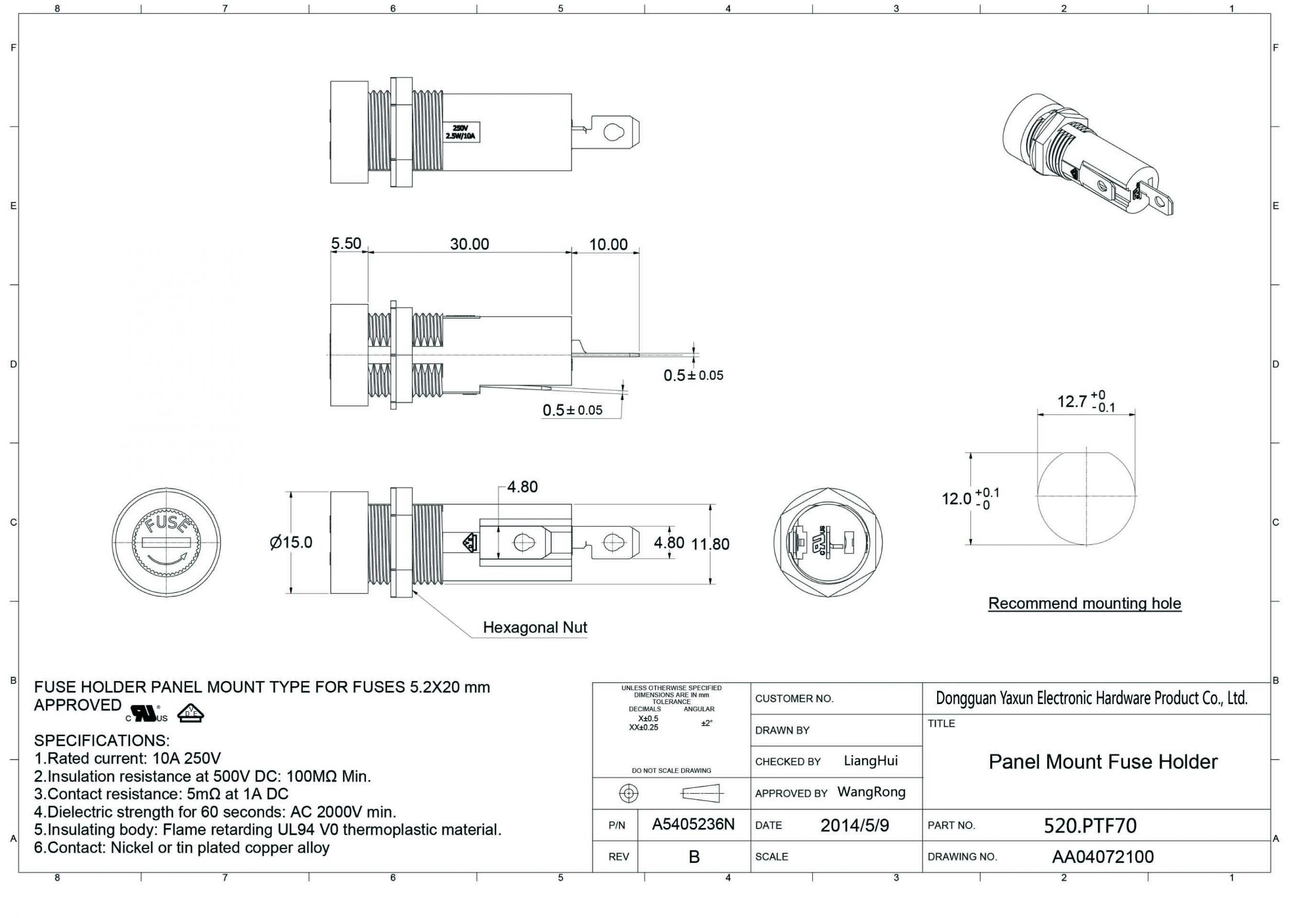

PTF70 5x20mm Panel Mount Fuse Holder Drawing
Description du produit
PTF70 5x20mm 10A 250V Bakelite Electric Fuse Cutout Box Panel Mount Glass Fuse Holder
The PTF-70 is a panel mount fuse holder with a screw cap for use with 5 X 20 mm glass fuses with a UL rating of 10A at 250Vac and uses tab wire connections. This panel mount fuse holder has a bayonet style screw-cap that make the installation and removal of a 5x20mm glass fuse easy and safe. Wiring connections to this 5 X 20mm panel mount fuse holder are either soldered or a push on tab terminal and installation is made easy with a threaded housing and lock nut arrangement.
Spécification
• operating voltage, max.: 250V CA
• rated current: 10UN
• contact resistance: <5mΩ
• insulation resistance: >100MΩ
• dielectric strength: >3000V AC/60s
• colour: noir
| Courant nominal | 10A 250V |
| Insulation resistance at 500V DC | 100 MΩ min. |
| Résistance de contact | 5 MΩ at 1A DC |
| Dielectric strength between the terminals for 60 secondes | CA 3000 min. |
| Insulating body | Flame retarding UL _94V0 thermoplastic material. |
| Contact | Nickel or tin plated copper alloy |
Fearures
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2
Application
Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment
PTF70 5x20mm Panel Mount Fuse Holder Drawing
