Bolt On Fuse Holder- MRBF DC 58V Terminal Fuse Block for Battery
Car Battery bolt-on fuse holder, fork bolt installation type, small ANS/AMS; medium ANM/AMM/MEGA; large ANL, 20A-500A. Automotive bolt-on fuse, factory direct sales, quality guaranteed! Product display, product details, company introduction, stb. Please see the picture below for details. Welcome to consult!

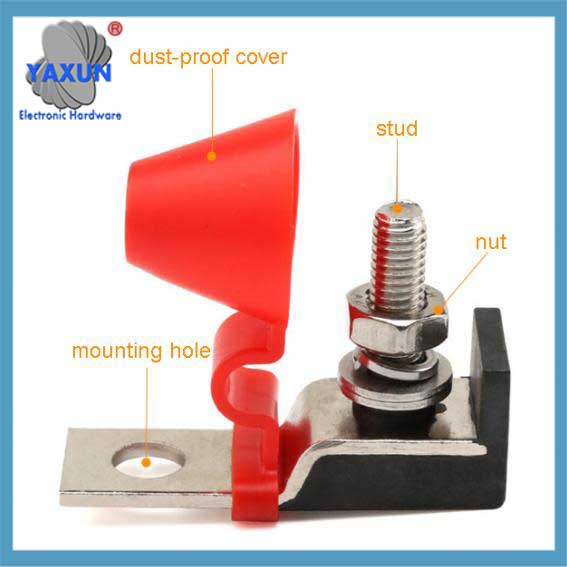

 Terminal Fuse Holder Block Installation Diagram for Battery |

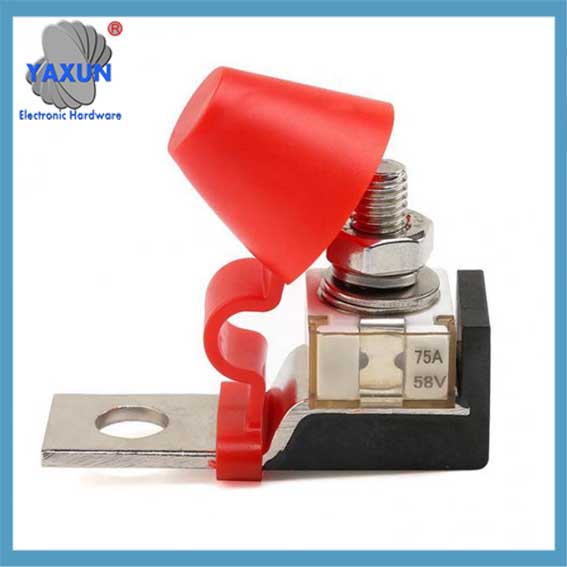

 Terminal Fuse Block for Battery |

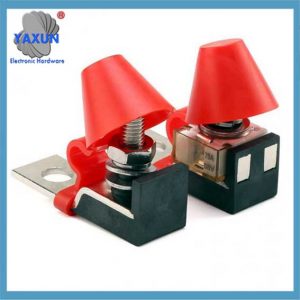

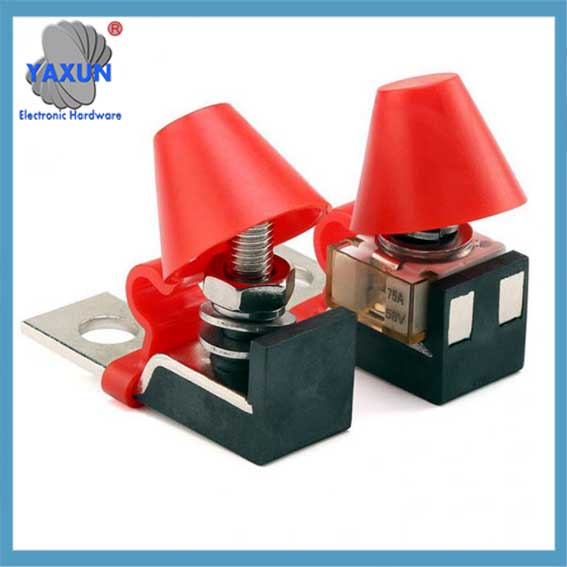

 Bolt On car Fuse Holder |
Termékleírás
| Elem neve: | MRBF DC 58V Terminal Fuse Block For Battery | rész sz.: | MRBFH |
| Mount Size: | 3/8″ (M10) | Terminal Stud: | 5/16″ (M8) |
| Szerelés típusa: | Bolt Down | Interrupting Rating: | 300A |
| Névleges feszültség: | 58Vdc | Net Weight: | 70g |
| RoHS-kompatibilis: | Igen | Halogénmentes: | Igen |
| MOQ: | 100db | Torque Rating: | 75 In-lb |
Termékleírás
MRBF DC 58V Terminal Fuse Block for Battery
Specifikáció
1.Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
2.Provides high current protection in tight space constraints
3.Ignition protected when used with MRBF terminal battery fuses
4.Isolated stud design uses standard M8 hardware and permits stacking of terminals
5.Insulating cap prevents accidental shorts
6.Accepts 5∕16″ (M8) ring terminals
7.Mounts on 3/8”(M10) terminal studs
8.Fuse sold separately
| Specifikáció | Parameters |
| Max Current | 300A |
| Max Voltage | 58VDC |
| Terminal Stud | 5/16″ (M8) |
| Mount Stud | 3/8”(M10) |
| Contact Material | stainless steel |
| Insulation Material | PPS |
| Mounting Torque | 75 in-lb |
Pictures of MRBF DC 58V Terminal Fuse Block for Battery
