UL Manual Reset Limit Switch Thermostat KSD301 Snap Disc Thermal Fuse

UL Manual Reset Limit Switch Thermostat Replacement KSD301 125V 16A Temperature Control Switch, Circuit Off at 125°C/257°F and On by Manual, Normally Closed N.C Snap Disc Thermal Fuse. The manually reset KSD301 is a bimetal thermostat that can be used for temperature control or protection in many compact home appliances. It can be manually or automatically reset. At Chian the KSD301 is also known as the KI 31, and is interchangeable with other models such as the KSD302, KSD303, KSD201, 1NT, TK 24/36T, US-118, and T11.

To manually reset a KSD301/KSD302/KSD304 Spst Limit Switch thermostat, you can:
1, Turn off the appliances power
2, Wait for the thermostat to cool to its natural temperature
3, Press the reset handle

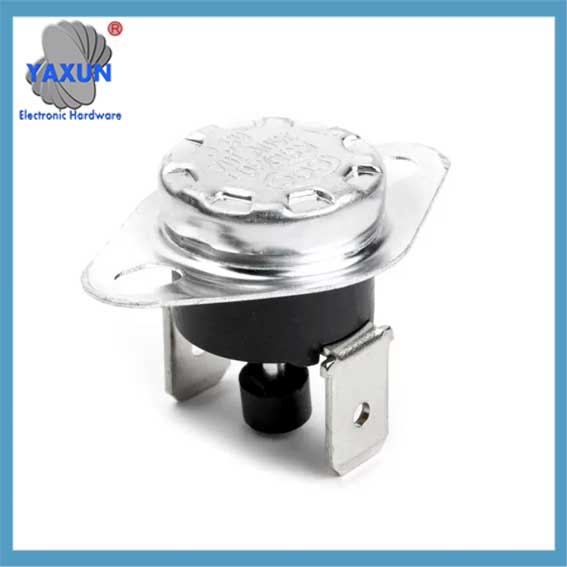

Custom KSD301 Normally Open Bimetal Thermal Switch 10A 6.3mm Manual Reset

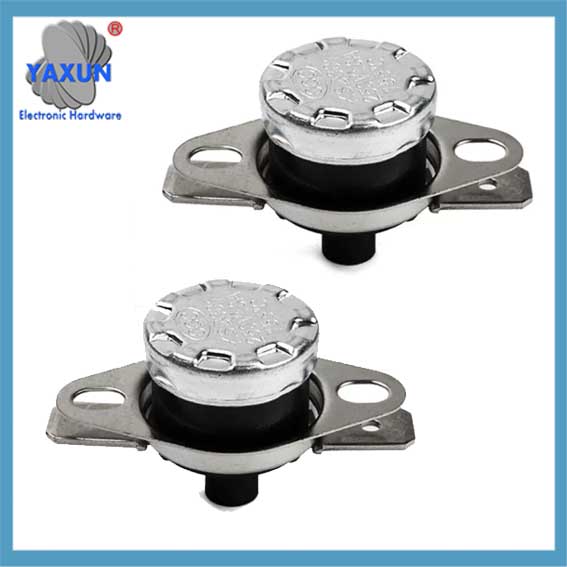

Custom Manual Reset Limit Switch Thermostat KSD301 Snap Disc Thermal Fuse

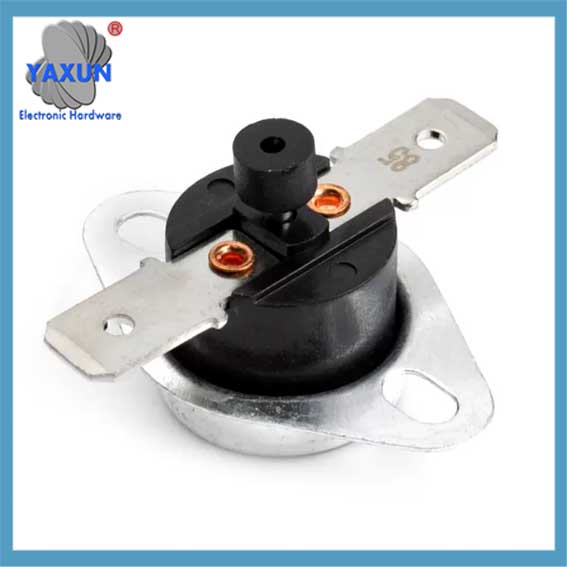

KSD301 Manual Reset Thermostat for Household Electric Appliances

About manually reset a KSD301 item:
1. Wide Operating Voltage : KSD301 high limit thermostat switch work as well with AC or DC voltage, AC110V/120V/125V/250V/16A;DC12V/24V/48V/20A;
2. Reliable Quality : The manually or automatically reset KSD301 thermal fuse made of EMS bimetal disc from USA . Large capacity contacts with a diameter of 3.5mm.UL&CUL approval（E527363).Precise temperature control and durable;
3. Action Type: N.C (Normál esetben zárva): The original state of the thermal cutoff switch contact is normally close. Circuit Off at 125°C/257°F (+/- 5°C) and On by Manual; It’s manually or automatically reset;
4. Easy to Install and Save Money: Thermostat temperature switch with stainless steel movable flange and easy to install. Enjoy the DIY, you can do it;
5. Széles körű alkalmazások: Replaces most fixed snap action thermodisc on heating equipment and appliances. Such as: coffee maker, toaster, microwave,egg incubator, dishwasher,electric oven, fan,hanging ironing machine,water heater, air fryer,refrigerator etc;

Műszaki paraméterek:
Rated Current(Ir): 10A,16A;
Névleges feszültség(Ur):AC250V;
Action Temperature Tolerance:±5ºC
Elektromos intenzitás:AC2000V 50/60Hz 1min, For 1min;No Breakdon And No Flashover
Contact Resistance:<50mΩ
Lnsulation Resistance:>100MΩ
Response Speed:≤1ºC/Min
Operation Cycles: >30000

Működési hőmérséklet & visszaállítja a hőmérsékletet

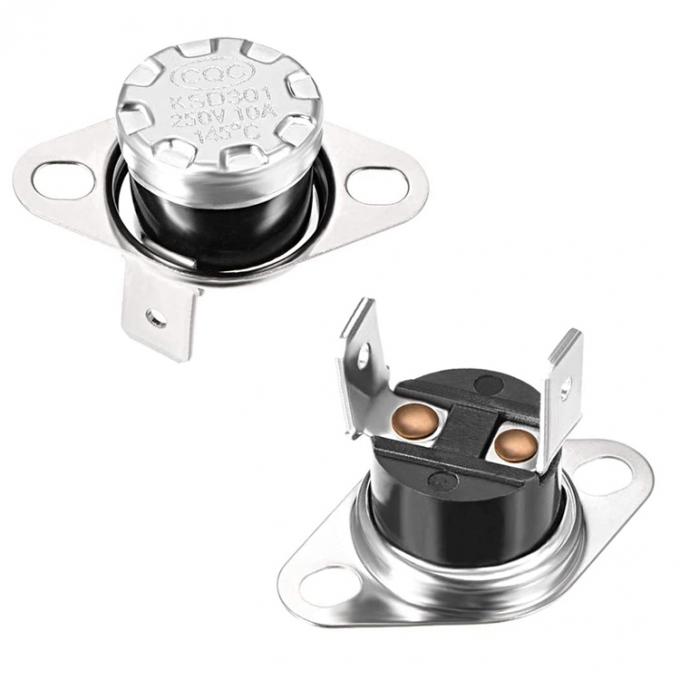

Automatic reset KSD301 Snap Disc Thermal Fuse model

Alkalmazások
Microwave ovens, electronic disinfection cupboards, electric heaters, coffee ovens, sandwich ovens, drip-drip coffee machines, vízmelegítők, furnaces, dishwashers, boilers, dryers, electric heaters, mosógépek, water dispensers, electric water bottles, rizsfőzők, electronic tile braces, Electric hair dryer, electric heater, electric hot iron, vacuum cleaner, multi-storey stove, electric oven, fryer, motor, household warm water bag, bath, soy milk machine, heating and cooling air-conditioning fan, office equipment, chiller, car seat heater, and other household appliances and motors, Rectifier equipment and all kinds of electric heating appliances for temperature control and overheat protection components, More common in food processing machinery and other small household appliances.

Installation
1: Method of earth: By means of the metal cup of thermostat connected in the earthing metal part..
2:The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
3:When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
4: If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.
5:The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.

Standard Package
100pcs per bag

Shipping Term:
EXW, DDU, DDP, C&F, FOB

Shipping Methods:
International Express, By Air, By Sea
