ANM FUSE MEGA 298 Bolt Down HIGH-CURRENT Automotive Marine Fuse 60A~500A
ANM MEGA Bolt-on Fuse/ Fusible Link Fuse/ Auto Fuse / Blade Fuse 30A 40A 50A 60A 70A 80A 100A 125A 150A 175A- 250A 400A 500A.
The MEGA® 298 Bolt-Down Series High-Current Fuse Holder works with MEGA® bolt-down fuses. As a high-amp fuse holder, it’s ideal for battery and alternator Automotive Marine.
Nome dell'articolo: | Bolt Down Fuse | Parte n.: | MEGA |
Amps: | 60A 70A 80A 100A 125A 150A 175A 200A 225A 250A 300A 350A 400A 450A 500A | Volts: | 32Vdc |
Total Length: | 68.8 Mm | Hole Distance: | 50.8 Mm |
Tipo di montaggio: | Bolt Down | Interrupting Rating: | 2000UN |
Insulation Material: | PPA | Contact Material: | Nickel Plated Copper |
Conforme alla direttiva RoHS: | SÌ | Senza alogeni: | SÌ |
Operation Temp: | -40˚C To +125˚C | ||
Evidenziare: | Automotive AMG Fuse, Marine AMG Fuse, Bolt Down Mega Fuse |
Descrizione del prodotto

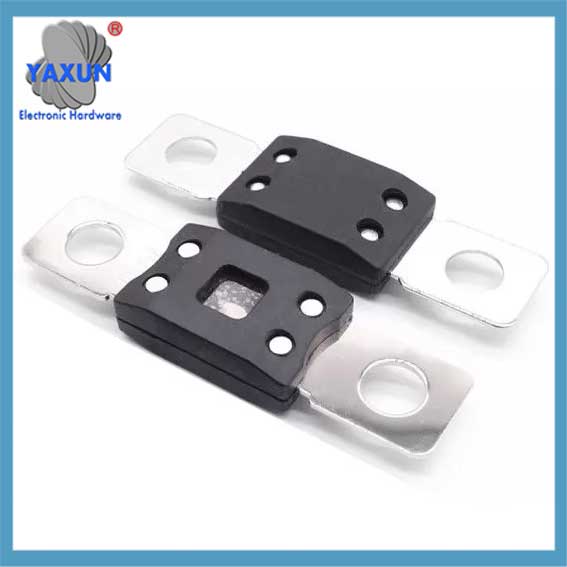

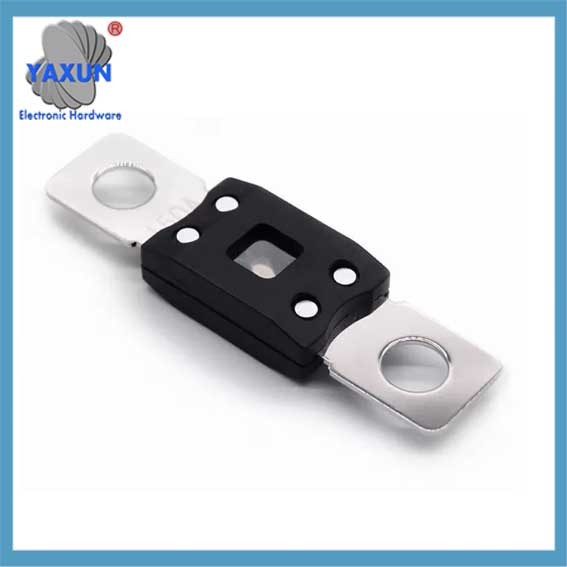

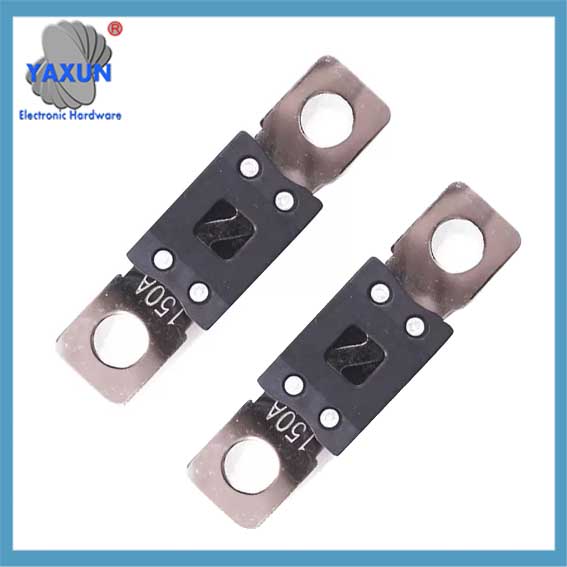

298 SERIES Fuse TIME DELAY BOLT DOWN AUTOMOTIVE MARINE MEGA AMG FUSE
Descrizione del prodotto
Nome del prodotto | MEGA AMG Automotive Fuse |
Types | Bolt Down |
Volts | 32V dc |
Amps | 60A 70A 80A 100A 125A 150A 175A 200A 225A 250A 300A 350A 400A 450A 500A |
Blow Speed | Slow Blow |
Environmental | Lead and Ph free |
Package | 100pcs per bag |
Suitable for new energy vehicles, forklifts, motor controllers, charging piles,
rechargeable motors, ships and other low-voltage ELECTRICAL AUTOMOTIVE and MARINE appliances.
This MEGA AMG FUSE is ideal for battery and alternator protection application and other heavy
gauge cables requiring high current protection.
Specifica | Parameters |
Interrupting Capability | 2000A @ 32 VDC |
Tensione nominale | 32 VDC |
Ambient Temperature | -40°C to +105°C |
Terminals Material | nickel plated copper |
Insulation Material | PPA |
Standard | IS08820-5 / UL248 |
Torque | 8-14 Nm M6,12-18 Nm M8 |
Electrical Performance
TESTING CURRENT | BLOW TIME LIMIT |
100% | >4 Hr |
135% | 120s – 1800s |
200% | 1s – 15s |
350% | 0.3s – 5s |
600% | 0.1s – 1s |
298 SERIES Fuse TIME DELAY BOLT DOWN AUTOMOTIVE MARINE MEGA AMG FUSE
