MEGA Series 298 Slo-Blo PEC Automotive Bolt-Down Fuse 60A To 500A
The MEGA car Fuse is designed for high current circuit protection up to 12V and 24V 250~500 amperes with Diffusion Pill Technology the MEGA® Fuse also provides time delay characteristics. Mega Fuses are bolt-down fuses designed for heavy-duty applications. Designed and patented by Littelfuse, the MEGA® Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.

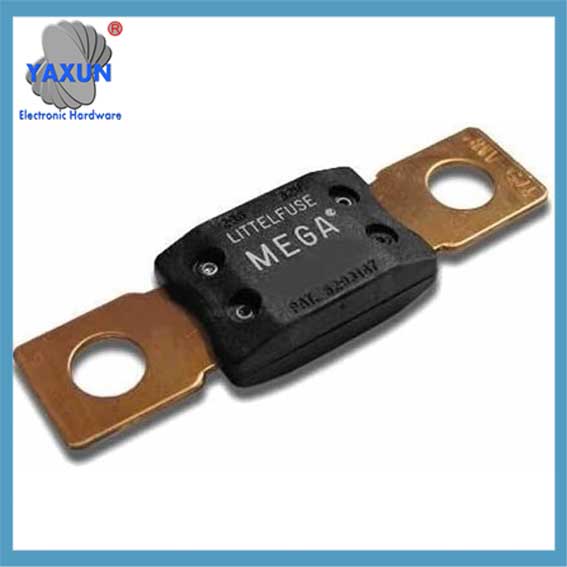

 0298200.ZXEH Mega bolt-down fuses for heavy-duty applications |

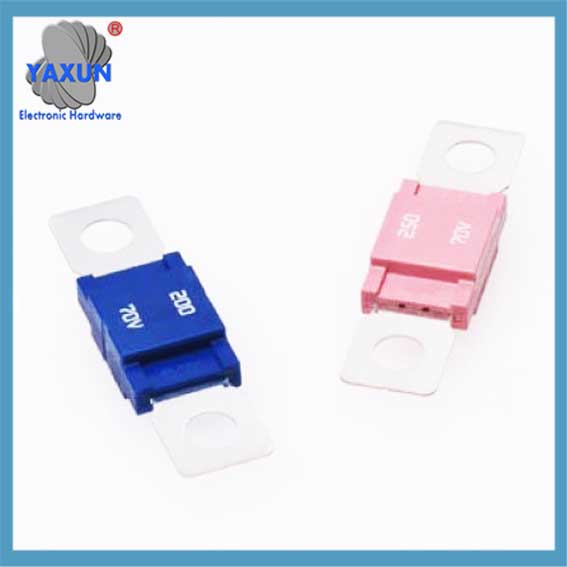

 MEGA-Fuse 150A 32V for 100-300 Ampere circuit protection |

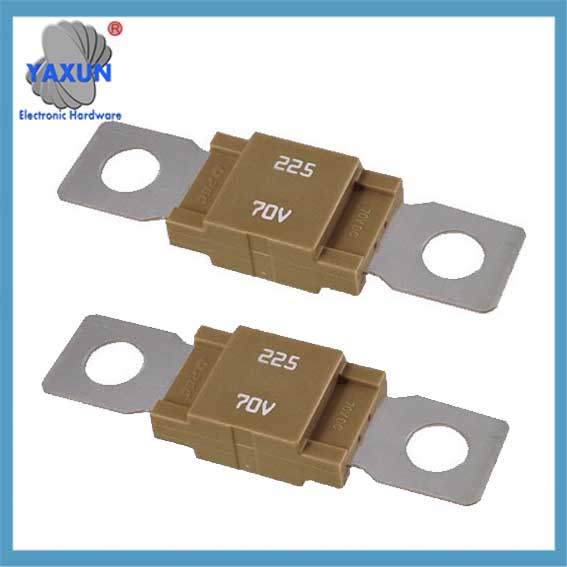

 Mega bolt-down fuses for battery and alternator systems applications |
| Pacchetto: | Carton Box | Valutazione attuale: | 60A To 500A |
| MOQ: | 2000 Pieces | Valutazione della tensione: | 70V |
| Misurare: | MEGA/ANM | Marca: | PEC Pacific |
| Materiale: | Copper And Plastic | Mounting: | M8 Or 5/16″ Studs |
| Evidenziare: | Sutd 70V bolt on fuse, SBFW-K48V-M8 Mega Fuse, 500A PEC Pacific Mega Fuse | ||
Descrizione del prodotto:
| Item name | Specifica |
| Porduct | SBFW-K48V-M8 Sutd 70V bolt on fuse mega fuse |
| Materiale | PC,copper |
| Voltaggio | 70V |
| Attuale | 60A to 500A |
| Breaking capacity | 2500UN |
| Environmental temperature | -40℃ to120℃ |
| Standard | ISO20934 |
| Pacchetto | 100pcs/bag |
80A to 250A Time-Current Characteristic
| % of Ampere Rating(UN) | Operating Time (Min / Massimo) |
| 100% | 4hrs / – |
| 135% | 120 S / 1800 S |
| 150% | 20 S / 450 S |
| 200% | 1 S / 15 S |
| 350% | 0.3 S / 5 S |
| 600% | 0.1 S / 1 S |
300A to 500A Time-Current Characteristic
| % of Ampere Rating(UN) | Operating Time (Min / Massimo) |
| 75% | 4hrs / – |
| 200% | 1 S / 15 S |
| 350% | 0.5 S / 5 S |
MEGA Series 298 Bolt-Down Fuse Dimension (mm)
Related type Bolt-Down Fuse
