Car Truck ATM Mini Blade Fuse Kit (2A 3A 5A 7.5A 10A 25A 30A 35A)
カテゴリー: カーヒューズ
タグ: 車のブレードヒューズ, カーヒューズ
Mini Blade Fuse commonly used in automobiles includes high current fuses and medium and low current ATM fuses. 一般的に, medium and low current ATM fuses are more accessible. Medium and low current fuses can be roughly divided into chip fuses (including automatic fuse box mini fuses), plug-in fuses, screw-in fuses, tube fuse box flat ATM fuses. その中で, we can access medium ATO or small fast-blow chip fuses. Chip fuses can carry small currents and short-time pulse currents, such as headlight circuits, rear glass defrosting, 等.
The international standard for the color of automotive chip ATM fuses: 2A gray, 3A purple, 4A pink, 5A orange, 7.5A brown, 10A red, 15A blue, 20A yellow, 25A transparent colorless, 30A green and 40A dark orange. According to the different colors, the size of different amperes can be clearly distinguished.
The conductor in the chip fuse is made of a metal similar to solder, which has a lower melting point than ordinary wires. The size of the conductor must be calibrated very accurately so that when the rated current is reached, enough heat can be generated to melt the conductor and disconnect the circuit. Fuses have two important working parameters, one is the working voltage and the other is the rated current. Car owners should choose according to the voltage and current in the circuit when purchasing or replacing.
製品説明
Item Name: | Mini Blade Fuse | Part No.: | AB11 |
サイズ: | 11んん | 取付タイプ: | Plug-in |
Interrupting Rating: | 1000A @ 32 VDC | House Material: | PC |
Fusing Material: | Zinc Alloy | 定格電圧: | 32V Dc |
Current Ratin0.1A~20Ag: | 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A | UL Listed: | いいえ |
RoHS Compliant: | Yes | Halogen Free: | Yes |
MPQ: | 1000pcs Per Bag | Operation Temp: | -40˚C To +105˚C |
High Light: | 11mm Mini Car Fuses, 10A Mini Car Fuses, ATM Blade Fuse |
製品説明

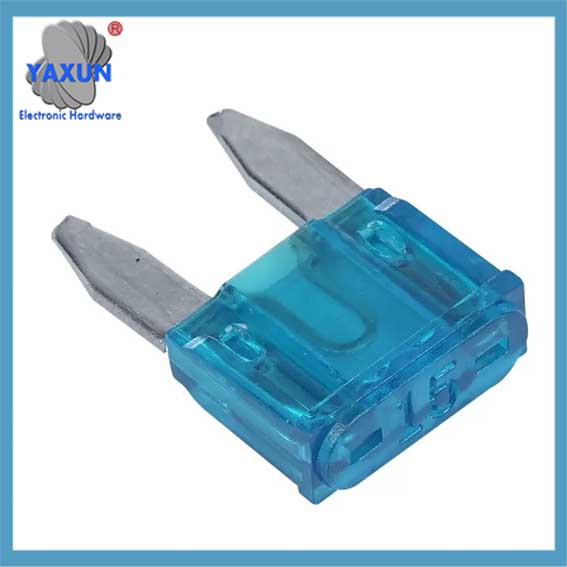

Auto APM ATM Blade Fuse Mini Car Fuse 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A
Easily identified by their color-coded plastic housings, and the marked amp rating figures on the top
Used for cars and trucks, It can be mounted in fuse blocks, in-line fuse holders, or fuse clips
Blade fuse specification:
Item Name: | Mini Car Blade Fuse |
Interrupting Rating: | 1000A @32VDC |
電流定格 | 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 35A |
定格電圧: | 32 VDC |
Component Level Temperature Range: | -40°C to +105°C |
System Level Temperature Range: | -40°C to +85*C |
Terminal Material: | zinc alloy |
Housing Material: | PC |
Standards: | SAE J1284,ISO 8820-3 |
Time-Current Characteristics
% of Rating | 電流定格 | Opening Time |
100 | 35あ & 40あ | >360000s |
110 | 1A-30A | >360000s |
135 | 1あ&2あ | 350ms~ 600s |
3A-40A | 0.750s~600s | |
160 | 1A-40A | 250ms~50s |
200 | 1あ&2あ | 100ms~5.0s |
3A-40A | 0.150s~5.0s | |
350 | 1あ&2あ | 20ms~500ms |
3A-40A | 80ms~500ms | |
600 | 1A-30A | <100MS |
35あ & 40あ | <150MS |
Drawing of APM ATM Mini Blade Fuse
