PTF 70 ベイクライトヒューズホルダー, 10あ, パネルマウントヒューズボックス, 5x20mmヒューズの場合

Stelvio Kontek PTF-70は、使用するためのねじ込みキャップを備えたパネルマウントヒューズホルダーです 5 × 20 MMガラスは250VACで10aのUL評価でヒューズし、タブワイヤー接続を使用します. Fuse Box for panel mounting; Fuse carrier with screwdriver slot and screw socket; 材料: Flameproof, glass-filled thermoplastic (PPOM).

PTF 70 – ヒューズホルダー 5 × 20 mm 10MOhm 250V 10A 黒

Screw Cap Panel Mount Fuse Holder, Accepts 5×20 mmヒューズ

StelvioコンテキストPTF 70 ヒューズホルダー; 円筒形ヒューズ; 5×20mm; 10あ; パネル上; 黒

製品名:	PTF-70 Panel Mount Fuse Holder	定格電流:	10あ
定格電圧:	250V	Fuse Application:	Cylindrical Fuses
Fuse Size:	5x20mm 5.2x20mm	Housing Material:	ベークライト
Material Feature:	Flame Retarded Plastic	ターミナル:	Nickel Plated Copper
タイプ:	Solder Type	取り付け:	On Panel
ハイライト:	PTF-70 10A, 250V Panel Mount Glass Fuse Holder

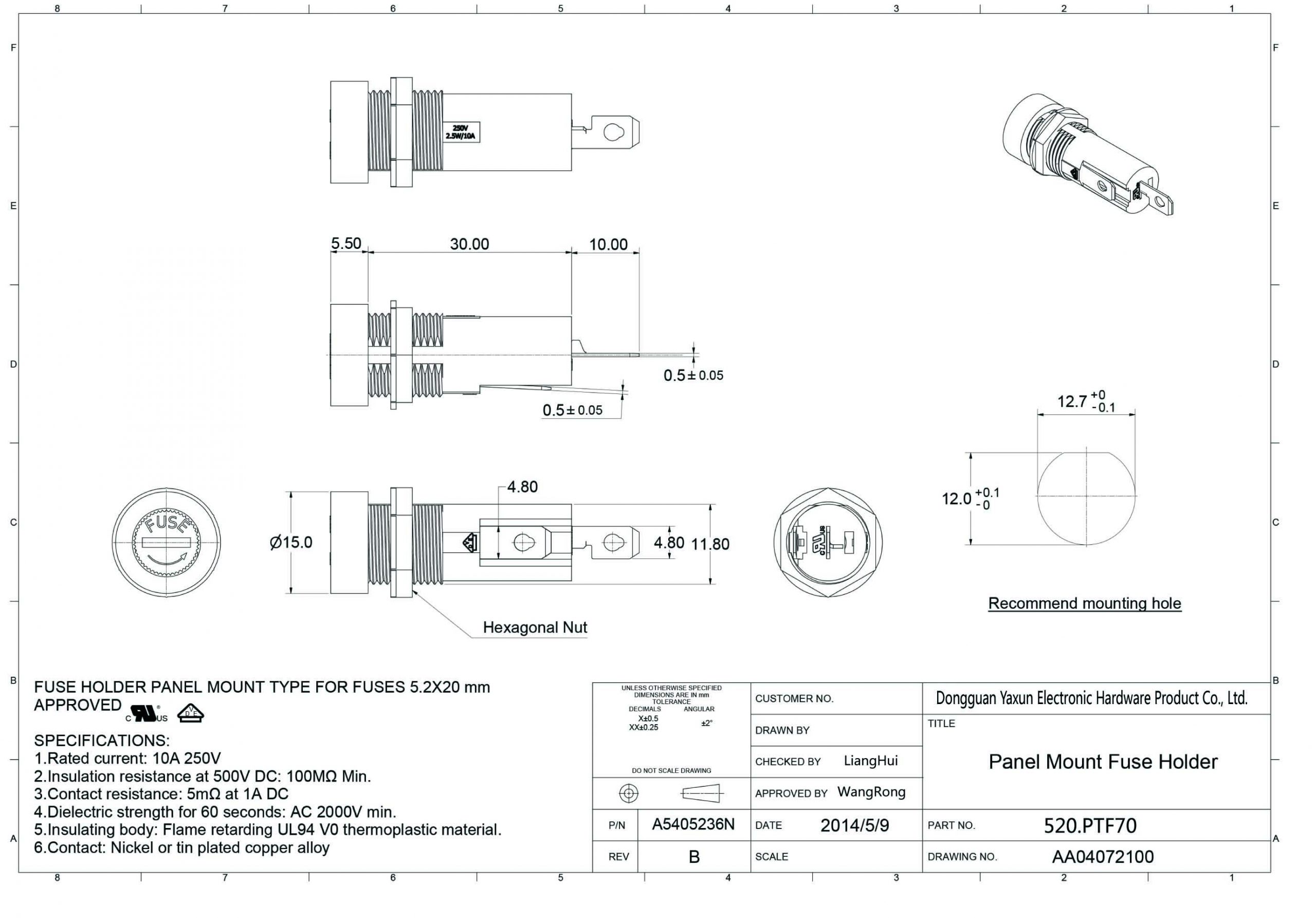

PTF70 5x20mm Panel Mount Fuse Holder Drawing

製品説明
PTF70 5x20mm 10A 250V Bakelite Electric Fuse Cutout Box Panel Mount Glass Fuse Holder

The PTF-70 is a panel mount fuse holder with a screw cap for use with 5 × 20 MMガラスは250VACで10aのUL評価でヒューズし、タブワイヤー接続を使用します. This panel mount fuse holder has a bayonet style screw-cap that make the installation and removal of a 5x20mm glass fuse easy and safe. Wiring connections to this 5 X 20mm panel mount fuse holder are either soldered or a push on tab terminal and installation is made easy with a threaded housing and lock nut arrangement.

仕様
• operating voltage, max.: 250交流電圧
• rated current: 10あ
• contact resistance: <5mΩ
• insulation resistance: >100MΩ
• dielectric strength: >3000V AC/60s
• colour: 黒

定格電流	10250V
Insulation resistance at 500V DC	100 MΩ min.
接触抵抗	5 MΩ at 1A DC
Dielectric strength between the terminals for 60 秒	交流 3000 分.
Insulating body	Flame retarding UL _94V0 thermoplastic material.
接触	Nickel or tin plated copper alloy

Fearures
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2

応用
Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment
