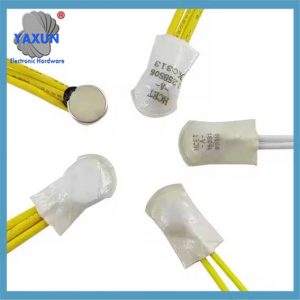

Snap Action Button-Style Thermal Protectors Thermik S06, ST06
Made in China alternative THERMIK S06 140.05 THERMAL PROTECTOR 140 oC 10~25 Amp 250V. Thermal protectors from YAXUN feature a higher current-carrying capacity and service life compared to conventional products from other manufacturers.
カテゴリー: サーマルスイッチ, サーモスタット
タグ: ディスクサーモスタット, モーターの熱保護, 温度スイッチ, 温度調節スイッチ, サーマルプロテクター, サーマルスイッチ
Made in China alternative THERMIK S06 140.05 THERMAL PROTECTOR 140 oC 10~25 Amp 250V. Thermal protectors from YAXUN feature a higher current-carrying capacity and service life compared to conventional products from other manufacturers.
S06 / ST06 U4 Thermal protector Main parts
1) Ceramic cover plate 2) stationary silver contact 3) spring disc 4) movable contact 5) Conductive housing 6) bimetal disc
Construction
Stationary silver contact are riveted with ceramic cover plate. The movable contact are welded to the spring disc, which is in the shape of a cross, and the four feet are connected to the bottom of the housing. The inner hole of the bimetal disc is placed on the spring disc through the movable contact. The current pass through the stationary silver contact to the movable contact, and then connects the conductive housing through spring discs to form a loop.
Function
When the circuit is normal, the movable contact is in close contact with the stationary silver contact under the pre-pressure of the spring disc. When the rated operating temperature is reached, the bimetal disc is deformed by heat, snaps into its inverted position and pushes the spring disc downwards. The contact is abruptly opened and the temperature rise of the device to be protected is disrupted.
After the circuit is disconnected, the ambient temperature begins to fall. When it reaches the defined reset temperature, the bimetal disc and the spring disc snaps back into its start position, the movable contact and the stationary silver contact will close again, and the circuit returns to the conduction state.
T.S06.070.05 Thermal protector S06.070.05.0300/0300;
T.S06.080.05 Thermal protector S06.080.05.0300/0300;
T.S06.090.05 Thermal protector S06.090.05.0300/0300;
T.S06.100.05 Thermal protector S06.100.05.0300/0300;
T.S06.110.05 Thermal protector S06.110.05.0300/0300;
T.S06.120.05 Thermal protector S06.120.05.0300/0300;
T.S06.130.05 Thermal protector S06.130.05.0300/0300;
T.S06.135.05 Thermal protector S06.135.05.0300/0300;
T.S06.140.05 Thermal protector S06.140.05.0300/0300;
T.S06.150.05 Thermal protector S06.150.05.0300/0300;
T.S06.155.05 Thermal protector S06.155.05.0300/0300;
T.S06.160.05 Thermal protector S06.160.05.0300/0300;
T.S06.180.05 Thermal protector S06.180.05.0300/0300;
T.S06.200.05 Thermal protector S06.200.05.0300/0300;
Thermik S06, ST06 PRODUCT PARAMETER
Nominal switching temperature (NST) in 5°C : 60 ℃ – 180 ℃
Tolerance (standard) : ±5K
Reverse switch temperature (RST) tolerance : ≥ 35 ℃ (≤ 95°C NST)
-50K±15K (≥ 100°C ≤ 180° C NST) : Thickness : 6.3んん
Diameter : 9.0んん
長さ : 17んん
Resistance to impregnation : suitable
Suitable for installation in protection class : I+II
Pressure resistance to the switch housing : 600N
標準接続 : 0.81 mm² / AWG18
Operating voltage range AC/DC : up until 500 V AC/28 V DC
Rated voltage AC : 250 V(VDE), 277 V(UL)
Rated current AC cos ϕ = 1.0 /cycles : 10あ / 10,000
Rated current AC cos ϕ = 0.6 /cycles : 6.3 あ / 10,000
マックス. switching current AC cos ϕ = 1.0 /cycles : 25 あ / 100
Rated voltage DC : 24.0 V
マックス. switching current DC /cycles : 40 あ / 3,000
Insulation voltage : 1.5 kV
Total bounce time : < 1 MS
接触抵抗 : ≤ 50 mΩ
Vibration resistance at 10 … 60 Hz : 100 m/s²
Available approvals : UL/VDE/CQC
