교체용 세라믹 카트리지 3AG 퓨즈 6.3x32mm 500V AC

600MA/1000V 주문(6.3X32MM) 세라믹 퓨즈 패스트 & YAXUN 온라인의 느린 타격. 최소 구매 수량: 1000 주요제품: REOMAX 퓨즈, 퓨즈를 정복하다, 퓨즈를 보자, 월터 퓨즈, BEL 퓨즈, 베이스맨.
Order Littelfuse 150322 series 6.3 x 32mm inline harness fuse holder, 15A 01500322H or other fuse holders online from YAXUN and specify next-day delivery. Enjoy first-class service and better prices on large quantities of electronic components.
Order Eaton Bussmann series 6.3 x 32mm panel mount 1P fuse holder 30A HKP-R or other fuse holders online from YAXUN and specify next-day delivery.
TZZ01 0.94, TS-709-15-H, TS-709-15, TS-709-12H, TMT12-221-10, TMF12-221-1,2, TA45-ABNTR030C0-AZZ71, TA45-ABNTR030C0, TA45-ABNTP030S0, TA45-ABDBP080C 0-AZM03, TA45-ABDB L160C0, TA45A324L150C0, “TA35-CKDWM120C0, TA35-CKDWF100C0”, “TA35-CBD-WF120-CZZ21, 4435.0304, (TA35-CBD-WF120C0))”, T11-611NR-15(4400.0719), 11-211R-12, T11-211 13A, T11-211 10A, PFUF.050.2, PFUF.005.2, PFSM100.2 (ROHS), PFSM.250.2, PFSM.075.2, PFSM.050.2, PFSM.030.2, PFSM.030.2, PFRY.375, “PFRY.250 (To replace PFRX.2 50)”, PFRY.250, “PFRY.185, (To replace PFRX.185)”, “PFRY.185, (PFRX is replaced by PFRY)”, PFRY.135, PFRY.135, “PFRY.110, (PFRX is replaced by PFRY)”, PFRA.500, PFRA.500, PFRA.400.2, PFRA.300, PFRA.110.2, PFMF.020.2, PFMF.014.2, PFMD.020.2, PF SM.200.22, OGN 0031-8211, MH4532-121Y, KP01.1152.11, KP01.1112.81, KM00.1205.11, KM00.1105.11, KG10.6101.105, KE10.6100.151, GSP2.8201.13, FMAC-0FIW-2 500, DD11.0114.1110, DC21.0023.1111, DC12.2102.101, DC11.0021.001, AHTWF050C0, ABTWF200U3, ABTBP160C0.2110.01, ABT WF160 Z4,

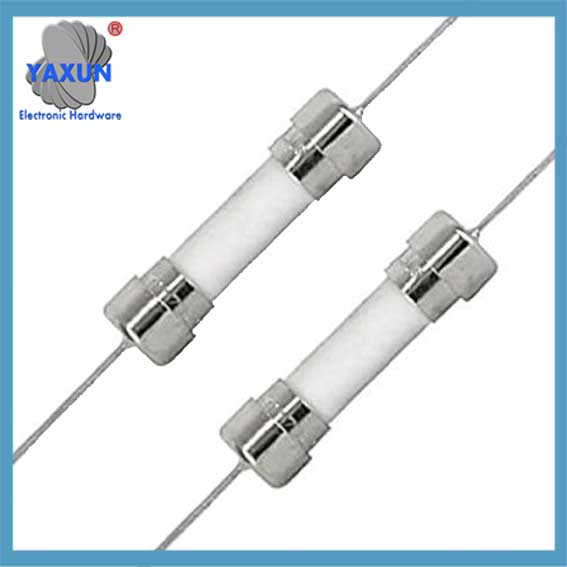

Ceramic Cartridge Fuse 6.3x32mm with leads

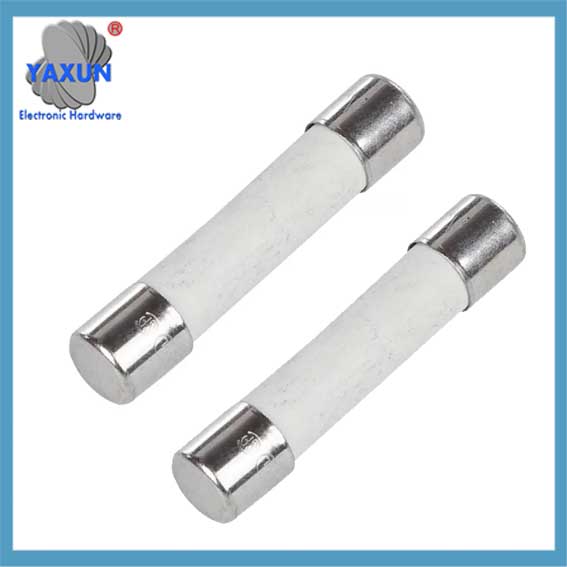

6FF 3AB – 3AG (6.3x32mm) 카트리지 퓨즈

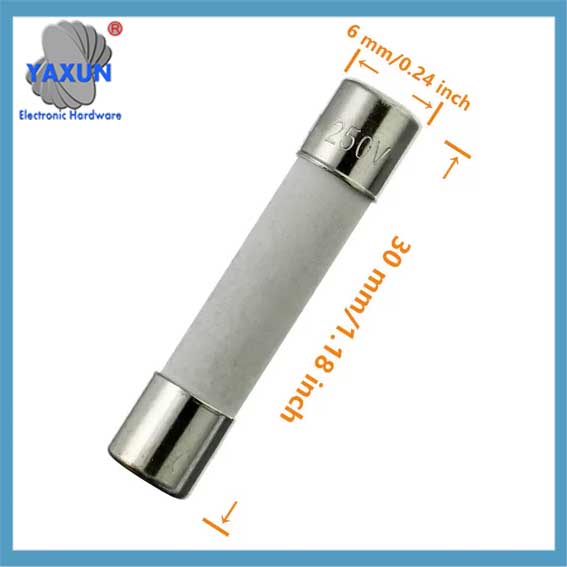

RS PRO 3A F 세라믹 카트리지 또는 초고속 퓨즈, 6.3 x 32mm

품목 이름:	세라믹 튜브 퓨즈	부품 번호:	6.500
타격 유형:	Slow Blow	장착 유형:	Cartridge Or Axial Leaded
기준:	UL	Tube Material:	Ceramic
Contact Material:	Nickel Plated Brass	Fusing Material:	Tinned Copper
전압 정격:	500V	현재 등급:	0.1A~30A
적용대상:	6×32 퓨즈	UL 등록:	예
RoHS 준수:	예	할로겐 프리:	예
MPQ:	200pcs Per Bag	Package:	200pcs Per Bag, 2000pcs Per Box, 8000pcs Per Carton
하이 라이트:	6.3x32mm Ceramic Cartridge Fuse, 500V Ceramic Cartridge Fuse, 3AG Fast Blow Ceramic Fuse

제품 설명

500V Ac 500Vdc 6.3×32 6×32 3AG Cartridge Fuse Fast Blow Ceramic Fuse Link 500V Tube Fuse For Replacement

목	세라믹 퓨즈
기준	UL
타격 유형	fast acting
본체 재질	세라믹
Fusing wire Material	Alloy
Filler	silicon
Cap Material	nickel plated brass
전압 정격	500 VAC 500 VDC
현재 등급	0.1A~30A
장착 유형	cartridge or axial leaded
Breaking Capacity	10KA 1KA
차원	6.35×31.75 mm 6.3×32 6×32 3AG
Certificates	CUL UL
응용	home appliance, power supply, telecommunication, consuming electronics

Left one is axial leaded ones with pigtails

제품특징

Ambient Temperature: -55℃ ~ 125℃ (Consider de-rating)

Stored condition: at temperature of +10℃~60℃, relative humidity ≤ 75%.

Soldering pot temperature: <260℃; Solder dwell time: 2∼5s

Resistance to Soldering Heat: 260℃, 10에스. (Wave); 350℃, 5에스.

Solderability: 260℃, ≤ 3s. (Wave); 350±10℃, ≤ 3s.

Breaking Capacity UL certified

앰프	Volts	Interrupting Rating
0.1ㅏ – 12ㅏ	500뷔와, 500V dc	10그만큼
0.1ㅏ – 30ㅏ	500뷔와, 500V dc	1그만큼

사양

앰프 암호	정격 현재의	정격 전압	승인
앰프 암호	정격 현재의	정격 전압	cURus
0100	100엄마	500V AC 500V AC	●
0200	200엄마		●
0250	250엄마		●
0315	315엄마		●
0400	400엄마		●
0500	500엄마		●
0630	630엄마		●
0800	800엄마		●
1100	1ㅏ		●
1125	1.25ㅏ		●
1150	1.5ㅏ		●
1160	1.6ㅏ		●
1200	2ㅏ		●
1250	2.5ㅏ		●
1300	3ㅏ		●
1315	3.15ㅏ		●
1400	4ㅏ		●
1500	5ㅏ		●
1630	6.3ㅏ		●
1700	7ㅏ		●
1800	8ㅏ		●
2100	10ㅏ		●
2125	12.5ㅏ		●
2150	15ㅏ		●
2160	16ㅏ		●
2200	20ㅏ		●
2250	25ㅏ		●
2300	30ㅏ		●
