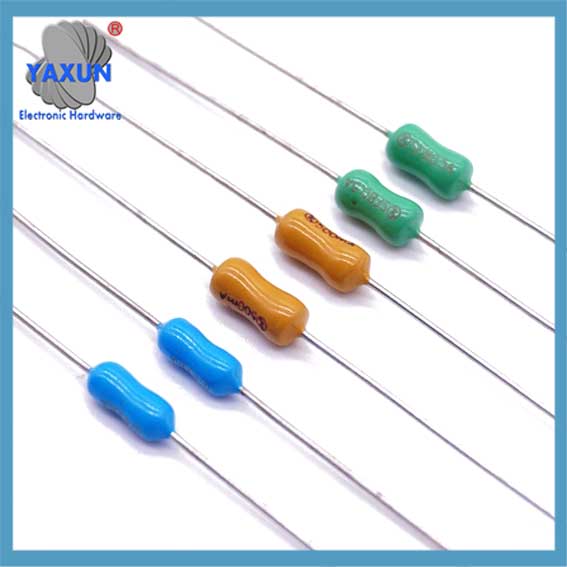

맞춤형 125V /250V PICO 매우 빠르게 작동하는 축 저항 퓨즈

맞춤형 피코 퓨즈 125V / 250V 2A 고속 블로우 퓨즈 저항 유형 통신 통신용 자체 복구 퓨즈 없음. Littelfuse PICO 리드 포함 퓨즈 – 스루홀은 YAXUN Electronics에서 사용할 수 있습니다..

Definition of PICO fuse resistance: Resistors and fuses are similar in material and construction, while PICO fuse-type resistors have both functions. They can be used as resistors in normal times. When the current is abnormal, they will function as fuses to protect equipment.
The cost is reduced due to the dual-purpose function.
PICO Fuse resistance can be divided into: Metal film fuse resistors, fuse-wound resistors, PICO fuse-type cement resistors.
There are power: 1 / 4여, 1 / 2여, 1여, 2W several, as power increases, the product will continue to become larger exterior dimensions.

Product Details intentions to develop, to use technology to benefit society

Breaking Capacity	재료	작동 온도	Soldering conditions
50 amperes at 125V AC (250mA-10A) 25 amperes at 250V AC (250mA-10A)	PICO Fuse body –EPOXY COATING End cap–nickel plated brass Pigtail–tin plated copper on nickel plated brass cap	-40℃～+125℃	Wave solder:260℃,≤5S Hand solder: 360℃,≤1S

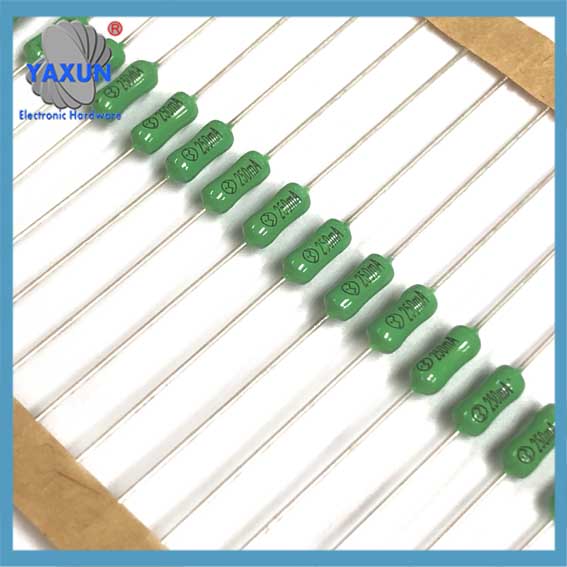

2.4 X 7MM 축 방사형 스루홀 피코 퓨즈

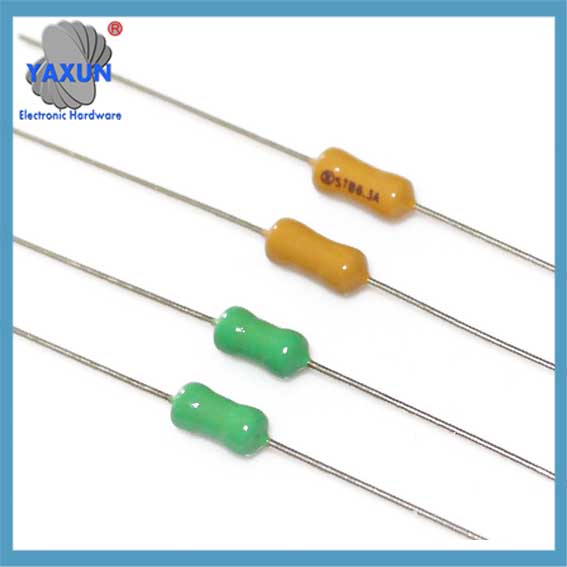

FAST ACTING Pico Fuse Color code chart

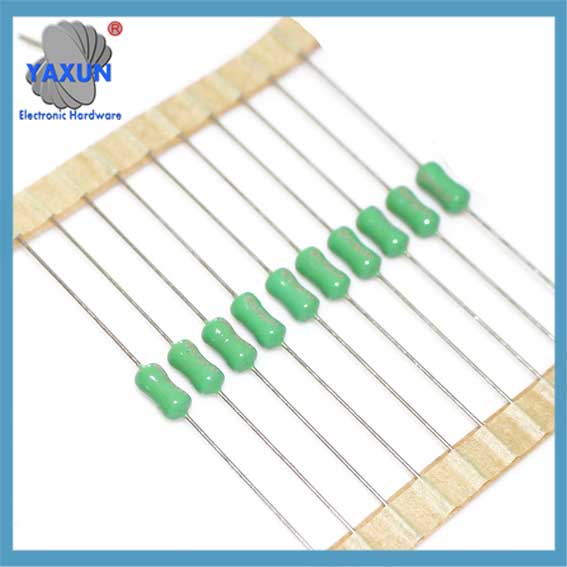

Littelfuse Pico Fuse 0.25A 0.25 Amp 1~ 4A 125V

Functional Characteristics

Testing current	Blow Time
Testing current	최소	맥스
150%	1 hour
210%	100ms	1800 에스
275%	10ms	3에스
400%	3ms	300ms
1000%		20ms

2.4 X 7MM PICO Resistive FUSE EQUIVALENT, SLOW BLOW

Approvals （○ Pending ● Approvals ）

현재 등급	전압 정격	Norminal Melting I2T(A2sec)	승인
현재 등급	전압 정격	Norminal Melting I2T(A2sec)	VDE	CQC	UL	컬	PSE	KC
250엄마	125V/250	0.10	●	●	●	●		●
300엄마	125V/250V	0.12			●	●
315엄마	125V/250V	0.14	●	●	●	●		●
350엄마	125V/250V	0.18			●	●
400엄마	125V/250V	0.23	●	●	●	●		●
500엄마	125V/250V	0.38	●	●	●	●		●
600엄마	125V/250V	0.41			●	●
630엄마	125V/250V	0.42	●	●	●	●		●
750엄마	125V/250V	0.47			●	●
800엄마	125V/250V	0.53	●	●	●	●		●
1ㅏ	125V/250V	0.65	●	●	●	●	●	●
1.25ㅏ	125V/250V	1.25			●	●	●
1.5ㅏ	125V/250V	2.2			●	●	●
1.6ㅏ	125V/250V	4.1	●	●	●	●	●	●
2ㅏ	125V/250V	7.2	●	●	●	●	●	●
2.5ㅏ	125V/250V	14	●	●	●	●	●	●
3ㅏ	125V/250V	17			●	●	●
3.15ㅏ	125V/250V	18	●	●	●	●	●	●
3.5ㅏ	125V/250V	19			●	●	●
4ㅏ	125V/250V	22	●	●	●	●	●	●
5ㅏ	125V/250V	25			●	●	●
6ㅏ	125V/250V	28.8			●	●
6.3ㅏ	125V/250V	31.8	○	○	●	●		○
7ㅏ	125V/250V	39.2			●	●
8ㅏ	125V/250V	51.2	○	○	●	●		○
10ㅏ	125V/250V
