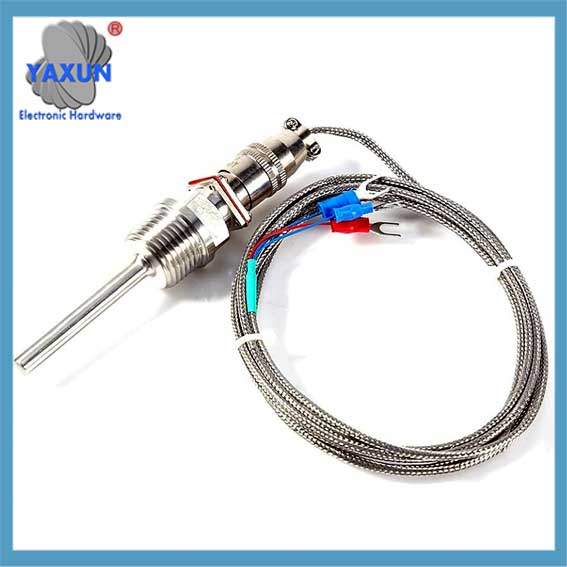

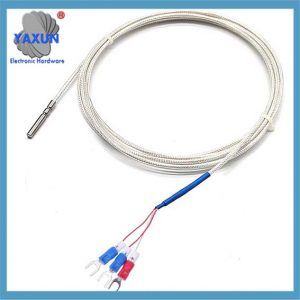

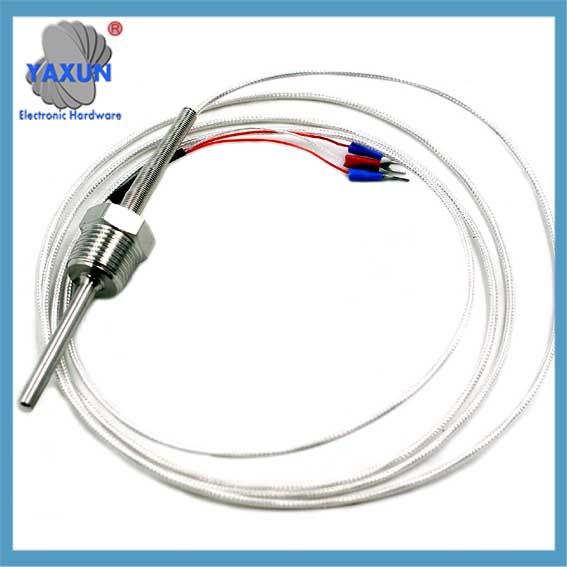

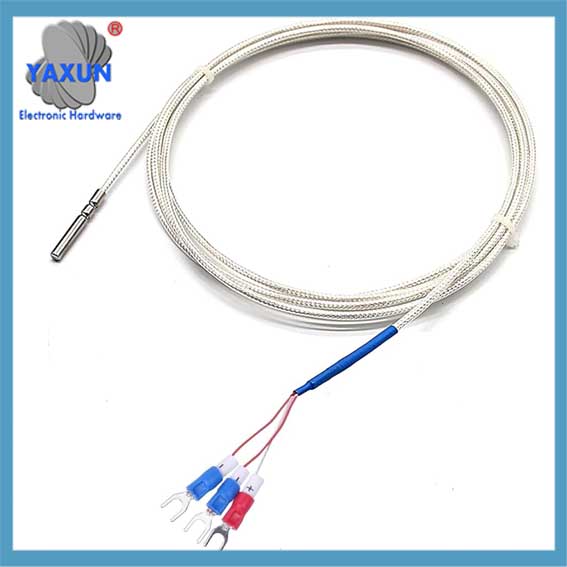

PT100 / PT1000 RTD Temperature sensor probes with Process Connection
China-made PT100/PT1000 platinum thermal resistor temperature sensor. The localization process of PT100/PT1000 platinum thermal resistor temperature sensor is accelerating as the international situation is pressing. It came into being to cooperate with many companies to fully localize platinum thermal resistors.
TM4101 PT100/PT1000 RTD Temperature sensor probes for Precise temperature measurement in containers, tanks and pipes;
For the connection to an evaluation unit;
RTD probes Very short response time for use in processes with fast temperature fluctuations;
Robust stainless steel housing with high protection rating and high pressure resistance;
Variable process connection using adapters.
PRODUCT PROFILE
China-made PT100/PT1000 platinum thermal resistor temperature sensor. The localization process of PT100/PT1000 platinum thermal resistor temperature sensor is accelerating as the international situation is pressing. It came into being to cooperate with many companies to fully localize platinum thermal resistors. The PT100/PT1000 platinum thermal resistor element is independently developed and produced in China, which can meet the use of temperature sensors under most working conditions. The current accuracy can reach ±0.15℃. All the shapes of our products can be used for the packaging of this domestic resistor.
SPECIFICATION PARAMATER
Technical parameters of platinum resistance:
Temperature coefficient: TCR= 3850ppm/K
사양: DIN EN 60751 (compliant with IEC751)
Long-term stability: RO drift is less than or equal to 0.04% (500℃, after 1000 시간)
Vibration resistance level: at least 40g acceleration (10-2000헤르츠)
Self-heating coefficient: 0.4K/mW (at 0°C)
응답 시간: water @0.4m/s t0.5=0.05S t0.9=0.15S; air @2m/s t0.5=3.0S t0.9=10.0S
Measurement current: PT100 0.3-max 0.5 mA/PT1000 0.1 to 0.3mA
측정 범위 |
|
||
Process connection | threaded connection G 1/4 | ||
Installation length EL [mm] | 25 |
애플리케이션
System | gold-plated contacts |
Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
Media | liquids and gases |
Pressure rating [bar] | 400 |
Electrical data
Protection class | III |
Measuring/setting range
Probe length L [mm] | 12 | ||
측정 범위 |
|
정확성 / deviations
정확성 [케이] | ± (0,15 케이 + 0,002 엑스|티|) |
Reaction times
Dynamic response T05 / T09 [에스] | 1 / 3; (according to DIN EN 60751) |
Operating conditions
Ambient temperature [℃] | -25…80 |
보관온도 [℃] | -40…100 |
Protection | IP 68; IP 69K |
Tests / approvals
Shock resistance |
|
||
Vibration resistance |
|
||
MTTF [연령] | 22831.05 |
Mechanical data
무게 [g] | 61 |
재료 | 스테인레스 스틸 (1.4404 / 316엘) |
Materials (wetted parts) | 스테인레스 스틸 (1.4404 / 316엘); FKM |
Tightening torque [Nm] | 35 |
Process connection | threaded connection G 1/4 |
Probe diameter [mm] | 6 |
Installation length EL [mm] | 25 |
Remarks
Remarks |
|
||
Pack quantity | 1 PC. |
Electrical connection
연결 | 커넥터: 1 x M12; coding: ㅏ; Contacts: gold-plated |
