R3-54 R3-54A Snap-in Panel Mount Fuse Holder for 5.2x20mm 250V / 125V 6.3A 10A fuse
R3-54 R3-54A Panel Mount Fuse Holder With CEE Plug 2.8mm for 20mm Fuses For 5.0mm x 20mm fuses. Featuring solder tag terminals and snap in panel mounting with a tool / screw driver release cap and UL 94V-2 rated material.

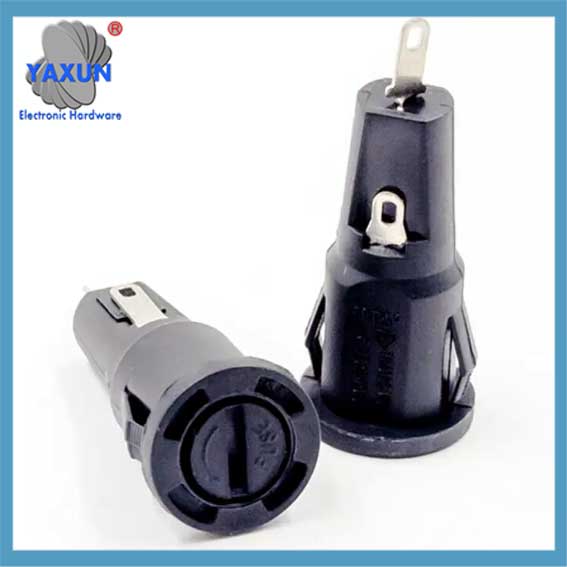

 R3-54B Panel Mount Fuse block fuse holder insurance 6.3A 250V for 5x20mm Fuse |

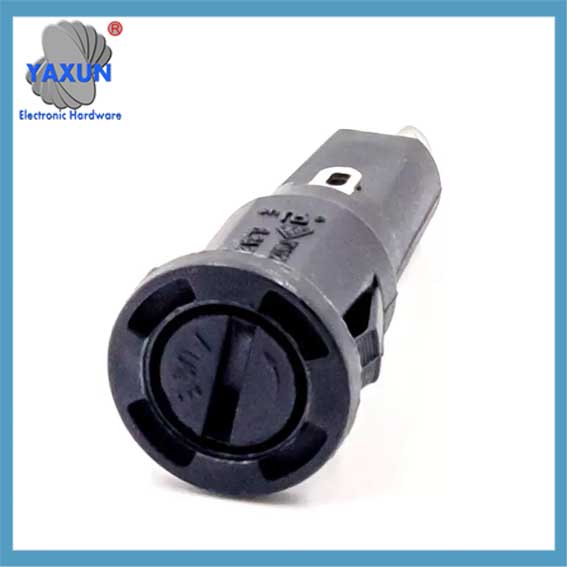

 China Wholesale 5.2x20mm 250V 6.3A 125V r3 54 fuse holder Products |

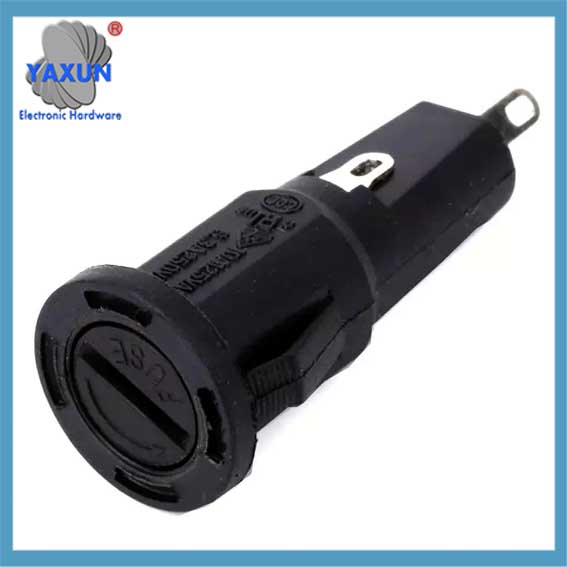

 R3-54 Snap-in Panel Mount Fuse Holder 5.2x20mm 250V 6.3A 125V 10A with Screw Cap |
| 품목 이름: | R3-54 R3-54A Fuse Holder | 유형: | Panel Mount |
| 설치: | Snap-in | Cap: | Screw Type |
| Volts Rating: | 250백 | Terminal Material: | Silver Plated Copper |
| Amps Rating: | 6.3A 10A | 적용대상: | Fuses 5×20 |
| RoHS 준수: | 예 | 본체 재질: | PA66 |
| 길이: | 40.6 Mm | Cut-Out Dia: | 12.7 Mm |
| Cap Dia: | 16 Mm | ||
| 하이 라이트: | R3-54 R3-54A 5.2x20mm Panel Mount Fuse Holders with 40.6mm Screw Cap Fuse Holder | ||
제품 설명
R3-54 Panel Mount Fuse Holder R3-54A 5.2x20mm 250V 6.3A 125V 10A Fuse Holder
제품 설명
접촉 저항: <0.02오
Withstanding Voltage: >AC3000V
절연 저항: DC500V 100mΩ Min
Electrical: Rated at 6.30A 250V AC
Insulating Body: PA66 nylon, UL 94V-2
Screw type cap
Soldering type terminals
| 목 | R3-54 Fuse Holder Snap-in Mounting |
| 스타일 | Panel Mount |
| 평가 | 6.3250V, 10A 125V |
| Frame and cap | PA66 NYLON |
| 단말기 | 2.8 silver plated copper |
| Fuse Size | 5x20mm |
| Cut-out diameter | 12.7mm |
Drawing of R3-54 Snap-in Panel Mount Fuse Holder
