스냅 동작 버튼 스타일 열 보호기 Thermik S06, ST06

S06 / ST06 U4 Thermal protector Main parts

1) Ceramic cover plate 2) stationary silver contact 3) spring disc 4) movable contact 5) Conductive housing 6) bimetal disc

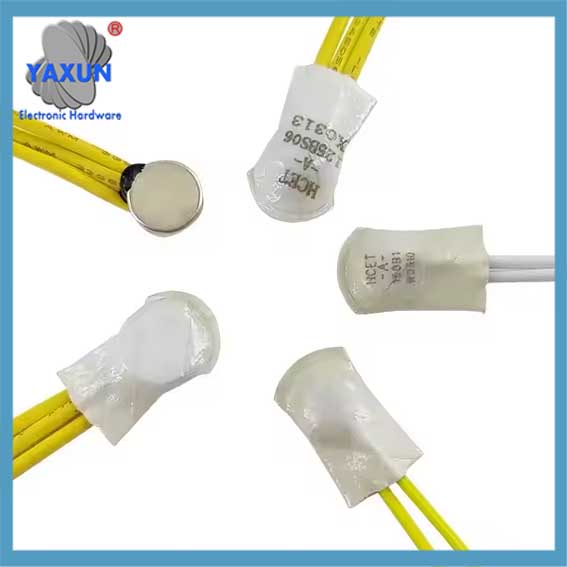

코일 모터 변압기 펌프용 S06 시리즈 버튼형 열 보호기

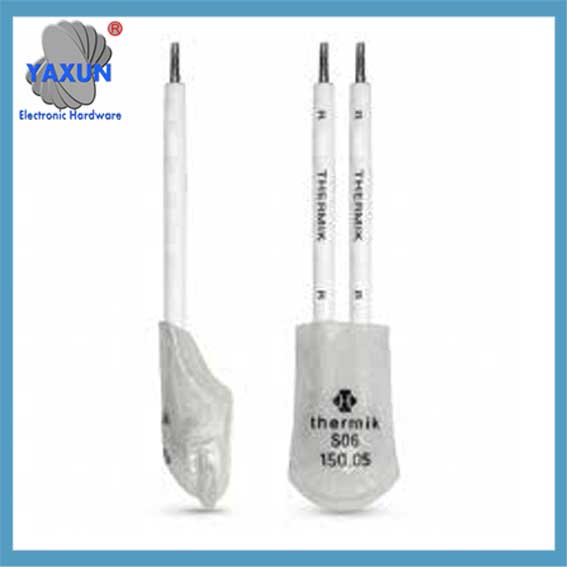

Thermik S01 S06 Thermal Protectors for Motor Protect

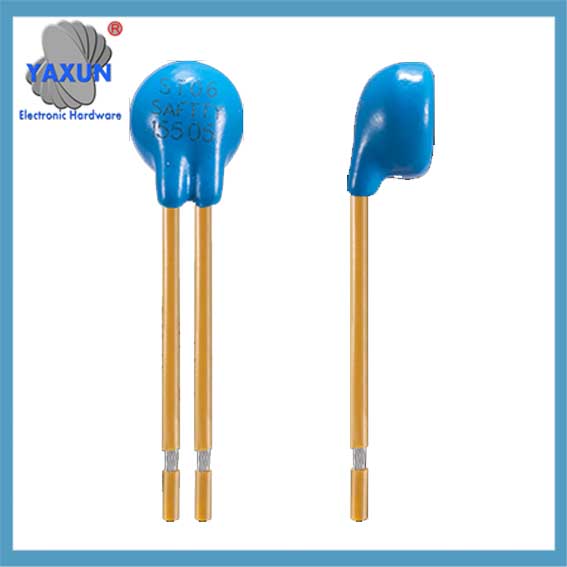

스냅 동작 버튼 스타일 열 보호기 Thermik S06, ST06

Construction

Stationary silver contact are riveted with ceramic cover plate. The movable contact are welded to the spring disc, 십자가 모양으로 되어 있는 것, and the four feet are connected to the bottom of the housing. The inner hole of the bimetal disc is placed on the spring disc through the movable contact. The current pass through the stationary silver contact to the movable contact, and then connects the conductive housing through spring discs to form a loop.

기능

When the circuit is normal, the movable contact is in close contact with the stationary silver contact under the pre-pressure of the spring disc. 정격 작동 온도에 도달했을 때, the bimetal disc is deformed by heat, snaps into its inverted position and pushes the spring disc downwards. The contact is abruptly opened and the temperature rise of the device to be protected is disrupted.

After the circuit is disconnected, the ambient temperature begins to fall. When it reaches the defined reset temperature, the bimetal disc and the spring disc snaps back into its start position, the movable contact and the stationary silver contact will close again, and the circuit returns to the conduction state.

T.S06.070.05 Thermal protector S06.070.05.0300/0300;
T.S06.080.05 Thermal protector S06.080.05.0300/0300;
T.S06.090.05 Thermal protector S06.090.05.0300/0300;
T.S06.100.05 Thermal protector S06.100.05.0300/0300;
T.S06.110.05 Thermal protector S06.110.05.0300/0300;
T.S06.120.05 Thermal protector S06.120.05.0300/0300;
T.S06.130.05 Thermal protector S06.130.05.0300/0300;
T.S06.135.05 Thermal protector S06.135.05.0300/0300;
T.S06.140.05 Thermal protector S06.140.05.0300/0300;
T.S06.150.05 Thermal protector S06.150.05.0300/0300;
T.S06.155.05 Thermal protector S06.155.05.0300/0300;
T.S06.160.05 Thermal protector S06.160.05.0300/0300;
T.S06.180.05 Thermal protector S06.180.05.0300/0300;
T.S06.200.05 Thermal protector S06.200.05.0300/0300;

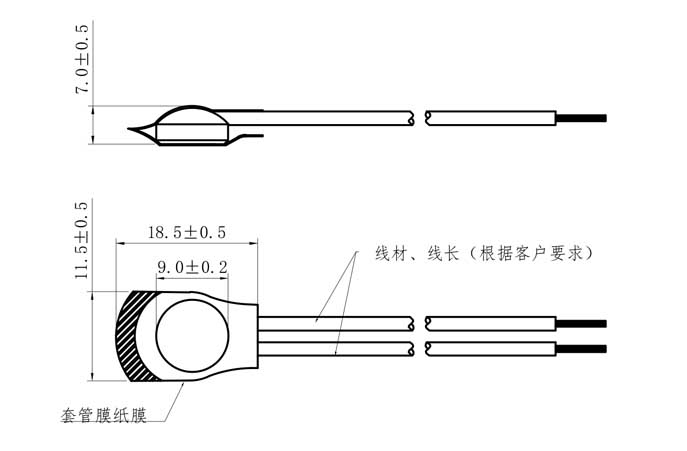

Thermal Protectors Thermik S06, ST06 Dimensions

열 S06, ST06 PRODUCT PARAMETER
공칭 스위칭 온도 (NST) 5°C에서 : 60 ℃ – 180 ℃
용인 (기준) : ±5K
역방향 스위치 온도 (RST) 용인 : ≥ 35 ℃ (≤ 95°C NST)
-50K±15K (≥ 100°C ≤ 180° C NST) : 두께 : 6.3mm
지름 : 9.0mm
길이 : 17mm
함침에 대한 저항성 : 적합한
보호 등급 설치에 적합 : I+II
스위치 하우징에 대한 압력 저항 : 600N
표준 연결 : 0.81 mm² / AWG18
작동 전압 범위 AC/DC : 까지 500 V AC/28 V DC
정격전압 AC : 250 V(VDE), 277 V(UL)
정격 전류 AC cos ψ = 1.0 /사이클 : 10ㅏ / 10,000
정격 전류 AC cos ψ = 0.6 /사이클 : 6.3 ㅏ / 10,000
맥스. 스위칭 전류 AC cos ψ = 1.0 /사이클 : 25 ㅏ / 100
정격전압 DC : 24.0 V
맥스. 스위칭 전류 DC /사이클 : 40 ㅏ / 3,000
절연전압 : 1.5 kV
총 이탈 시간 : < 1 ms
접촉 저항 : ≤ 50 mΩ
진동 저항 10 … 60 헤르츠 : 100 m/s²
사용 가능한 승인 : UL/VDE/CQC
