Thermal Safety thermostat & Thermal cut-off switch For Electric Heater

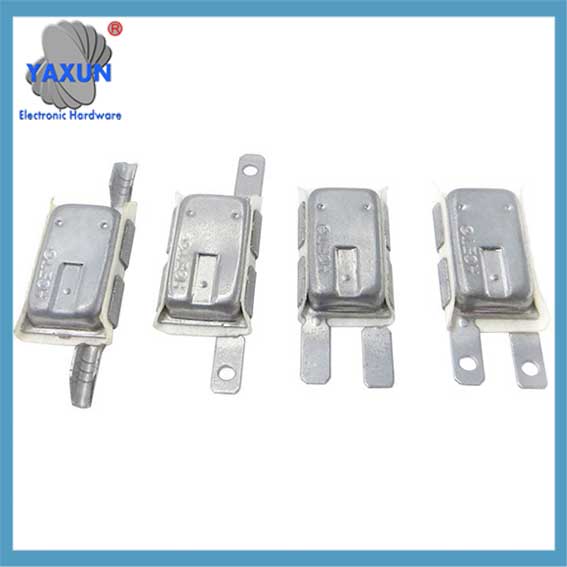

China Custom Thermal cut-off switch 2A~60A 30-150C (sometimes thermal reset or thermal cutout (TCO)) is a device which normally opens at a high temperature (often with a faint “plink” sound) and re-closes when the temperature drops. Thermal switches play a critical role in temperature monitoring, serving to shut down systems when Heat Convector, Room Heater their operating temperature exceeds a safe level.

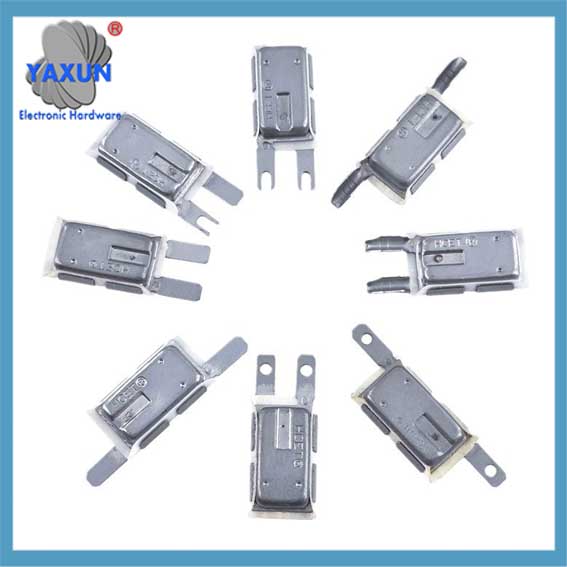

China Custom Thermal cut-off switch Hi-Amp 2A~45A 30-150C (sometimes thermal reset or thermal cutout (TCO)) is a device which normally opens at a high temperature (often with a faint “plink” sound) and re-closes when the temperature drops. Thermal switches play a critical role in temperature monitoring, serving to shut down systems when Heat Convector, Room Heater their operating temperature exceeds a safe level.

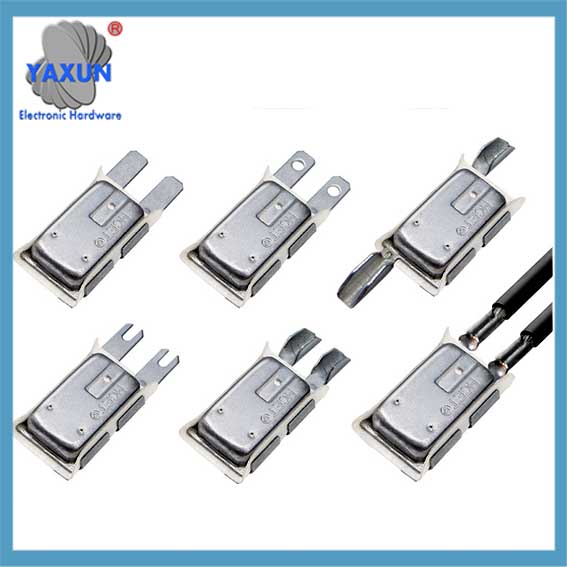

50-150 Degrees Thermostat Protector , Small Thermal Cut Off Switch 250V 5A~45 Amp
Opis
Usage: | Thermal Protector | Breaking Capacity: | High |
Safety Standards: | IEC | Contact Type: | Normalnie zamknięte & Normally Open Thermostat |
Temperature Deviation: | ±3°C / ±5°C / ±7°C | Life Cycle: | 10000czasy |
MOQ: | 1000PCS | Payment Method: | TT Or Negotiate Payment Term |
Delivery Time: | 7 To 15 Working Days | Model: | BH-B2D BH-A1D |
Raw Material: | Sliver, Copper, Plastic, Metal, Bimetallic Disc | Electrical Rating: | DC-12V Max 12A; DC-24V Max10A; AC-125V Max 8A; AC-250V 5A |
Action Temperature Range: | (30~150)±5°C; 5°C A Step | ||
High Light: | IEC 250V/ 125V Thermostat Protector, Thermal Cut Off Switch |
BW, KSD9700, BT, 8AM Thermostat Thermal Cut-Off Switch Protector 250V 5A 50 To 150 Degrees
Place of origin | Chiny |
Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V 5A |
Action Temperature range | (30~150)±5°C; 5°C a step |
Recovery and action temperature difference | Operating temperature decrease by 15-45°C |
Temperature deviation | ±3°C / ±5°C / ±7°C |
Circuit resistance | ≤50mΩ (Initial value) |
Insulation resistance | ≥100mΩ (DC500V Normal State) |
Dielectric Strength | AC50Hz 1500V / min, no breakdown blinding (Normal State) |
Life cycle | 10000 czasy |
Contact type | Normally closed & Normally open |
MOQ | 1000PCS |
Delivery time | 7 to 15 working days |
Payment method | TT or negotiate payment term |
Scope of application | BW, KSD9700, BT, 8AM series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor. |
Code | Open temp. | Reset temp. | Code | Open temp. | Reset temp. |
40 | 40℃±5℃ | ≥30℃ | 100 | 100℃±5℃ | 70±10℃ |
45 | 45℃±5℃ | ≥30℃ | 105 | 105℃±5℃ | 70±12℃ |
50 | 50℃±5℃ | ≥30℃ | 110 | 110℃±5℃ | 75±12℃ |
55 | 55℃±5℃ | ≥30℃ | 115 | 115℃±5℃ | 80±12℃ |
60 | 60℃±5℃ | 40±10℃ | 120 | 120℃±5℃ | 85±12℃ |
65 | 65℃±5℃ | 45±10℃ | 125 | 125℃±5℃ | 90±12℃ |
70 | 70℃±5℃ | 50±10℃ | 130 | 130℃±5℃ | 95±12℃ |
75 | 75℃±5℃ | 55±10℃ | 135 | 135℃±5℃ | 100±12℃ |
80 | 80℃±5℃ | 60±10℃ | 140 | 140℃±5℃ | 105±12℃ |
85 | 85℃±5℃ | 65±10℃ | 145 | 145℃±5℃ | 110±12℃ |
90 | 90℃±5℃ | 70±10℃ | 150 | 150℃±5℃ | 115±12℃ |
95 | 95℃±5℃ | 75±10℃ |
BW, KSD9700, BT, 8AM Thermal protector’s competitive advantage
1. Small size and easy installation
2. Quick bimetallic strip, fast reaction
3. The life time high than 10,000 czasy
4. Prevention again leak of vacuum impregnation process
5. Replacer of SENSATA 17AM 7AM, SEKI ST-22 etc.
BW series’drawing
