motor thermal overload protector switch china manufacture
DC24V High-Amp Mini Motor Thermal Overload Protector cut off switch With Plastic Case. USD0.13 to USD0.26 MOQ:1000pcs ; TB02B-B8D, KSD9700, ST-22, 17AM Lighting Thermostat Thermal Overload Protector AC / DC motor …
DC24V High-Amp Mini Motor Thermal Overload Protector cut off switch With Plastic Case. USD0.13 to USD0.26 MOQ:1000pcs ; TB02B-B8D, KSD9700, ST-22, 17AM Lighting Thermostat Thermal Overload Protector AC / DC motor …
|

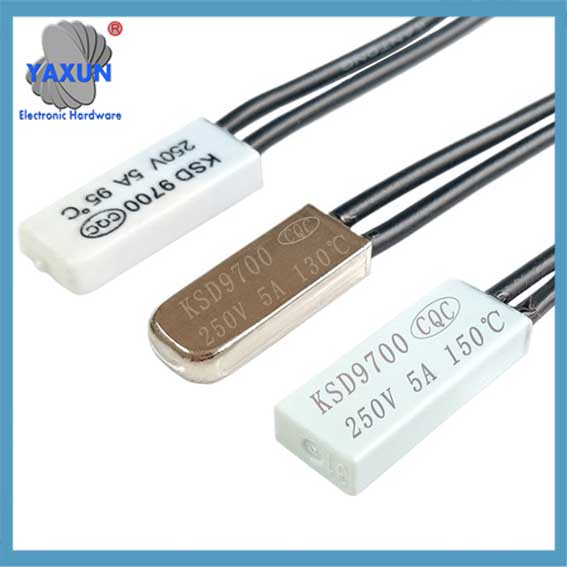

Metal – Plastic Case High – Amp Motor Thermal Overload Switch |

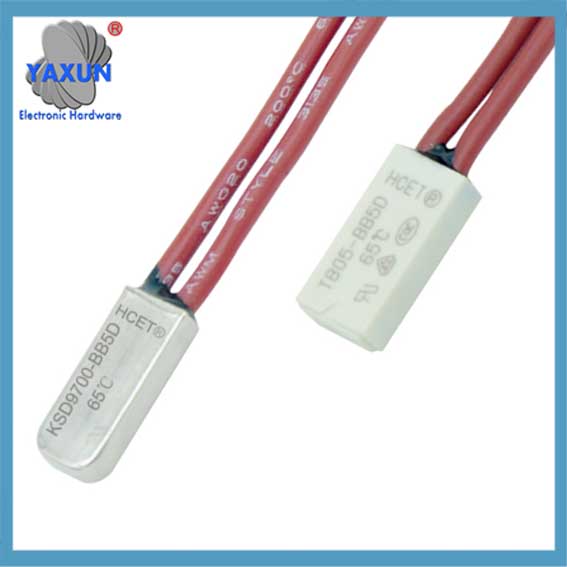

Motor Thermal Overload Protector 250v 5a BW9700 50-150C Thermal Switch |

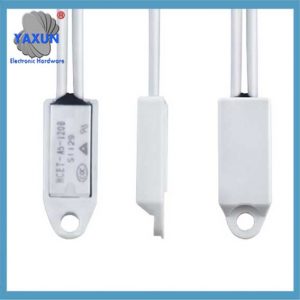

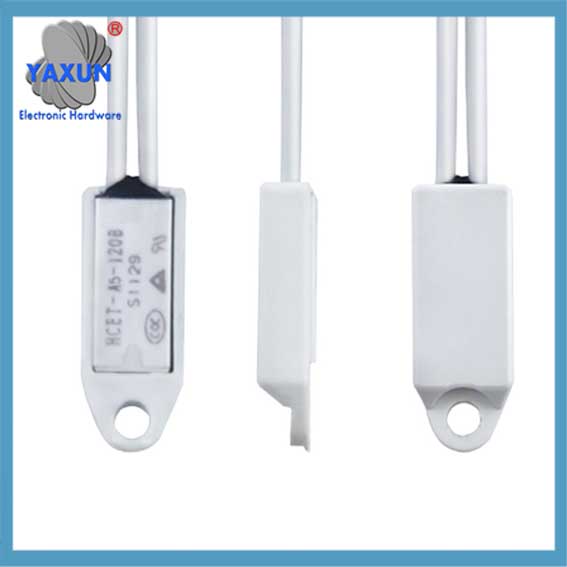

TB02-BB8D Lighting Thermostat Thermal Overload Protector AC 250V 2A |
| Contact Type: | Normally Closed (NC) / & Normally Closed (NO) | Temperature Range: | 30-150C |
| Life Time: | 10000 Times | Size: | 15*5.4*2.4mm |
| Colour: | White | Voltage: | 12V 24V |
| High Light: | Mini motor Thermal Overload Protector Switch, DC24V Thermal Overload Protector Switch, 17AM Mini Thermal Switch | ||
Mini Thermal Overload Protector Switch DC24V With Metal Case
BH series thermostat’s Principle and structure
BW & BH series that can protect against over-current and over-temperature are sealed firmly, small internal resistance, no noise and reset automatically. When current through bimetal that are sensitive to temperature and current, the status of the bimetal will be changed by over-temperature or over-current to cut off circuit or switch on circuit. BH series are safer than normal protectors, as there is no temperature effect lag under condition of sudden big current.
BH series thermostat’s Specification
Electrical Rating:
DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A for BH series
DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A for BH-TB02 series
Open temperature: (30~150)±5°C; 5°C a step.
Reset temperature: 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers’ requirement.
Dimension
| Model | Case | Length(mm) | width(mm) | High(mm) | Vol.&Current | Lead wire |
| KSD9700 | Plastic | 18.5 | 8 | 4 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A | #20 3135, end 5mm
half tripping, length is 70mm, or according to customer’s require |
| BW9700 | Metal | 18.5 | 7.3 | 3.8 | ||
| 17AM | Metal | 20 | 8 | 4 | AC250V 20A | #16 3135 |
| KSD-A1D | Metal | 15 | 6.6 | 3.2 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V | #20 3135, #22 3266,#22 3135, end 5mm
half tripping, length is 70mm, or according to customer’s require |
| BW-02 | Plastic | 15 | 7.1 | 3.8 | ||
| TB02-BB8D | Plastic | 15 | 5.2 | 2.4 | DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A | 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer’s require |
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
| Open temperature | (30~150)±5°C; 5°C a step |
| Reset temperature | 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers’ requirement. |
| Life times | 10000 times |
| Size | L15mm W7.1mm H3.8mm |
| Lead wire | #22 3266, end half tripping, length is 70mm, or according to customer’s require |
| UL File no | E487478 |
| CQC certificate no | CQC16002142880 |
| TUV certificate no | B160592241002 |
TB02-BB8D series thermostat’s Application and Instruction
TB02-BB8D series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.

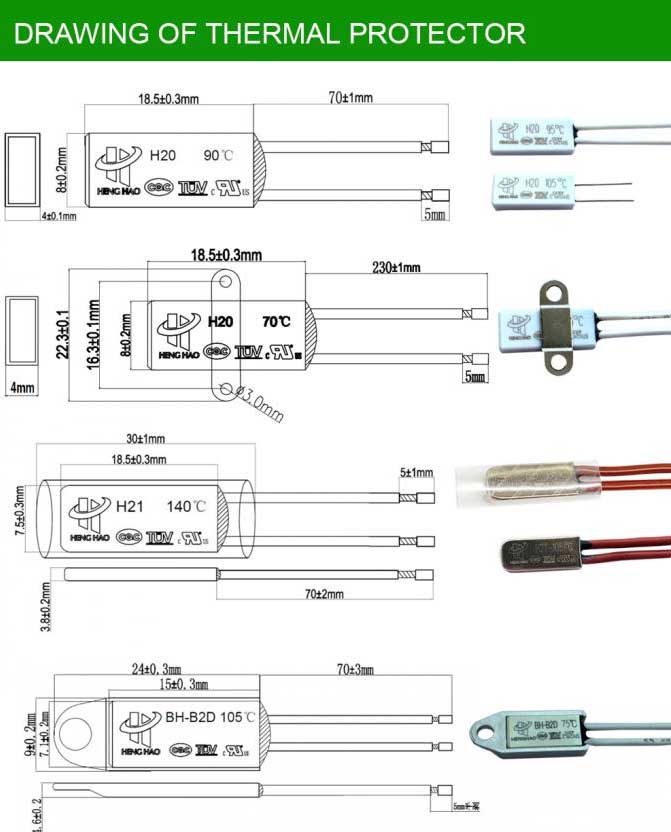

DRAWING OF thermal overload protector switch
| Code | Temperature | Code | Temperature |
| 30 | 30℃ | 100 | 100℃ |
| 35 | 35℃ | 105 | 105℃ |
| 40 | 40℃ | 110 | 110℃ |
| 45 | 45℃ | 115 | 115℃ |
| 50 | 50℃ | 120 | 120℃ |
| 55 | 55℃ | 125 | 125℃ |
| 60 | 60℃ | 130 | 130℃ |
| 70 | 70℃ | 135 | 135℃ |
| 75 | 75℃ | 140 | 140℃ |
| 80 | 80℃ | 145 | 145℃ |
| 85 | 85℃ | 150 | 150℃ |
| 90 | 90℃ |
