PTF 30 5mΩ Fuse holder for cylindrical fuses 5x20mm 10A on panel
5x20MM cylindrical Fuses PTF 30 Fuse holder in miniature design; Panel mounting and solder connection; Finger-grip and screwdriver slot equipped fuse carrier with screw socket. This panel mount fuse holder is ideal for mounting through 0.8mm to 2.8mm panel walls, is UL rated at 20 amps at 250 volts and has solder connectors. The finger grip cap holds the 5x20mm glass fuses.
5x20MM cylindrical Fuses PTF 30 Fuse holder in miniature design; Panel mounting and solder connection; Finger-grip and screwdriver slot equipped fuse carrier with screw socket. The PTF-30 is a panel mount fuse holder for use with 5x20mm glass fuses. This panel mount fuse holder has a convenient 16 mm diameter finger grip cap that makes installation and removal of 5 X 20mm Glass fuses quick and easy. This short body panel mount fuse holder mounts through a 13mm hole and is secured with a locknut. This panel mount fuse holder is ideal for mounting through 0.8mm to 2.8mm panel walls, is UL rated at 20 amps at 250 volts and has solder connectors. The finger grip cap holds the 5x20mm glass fuses.
|

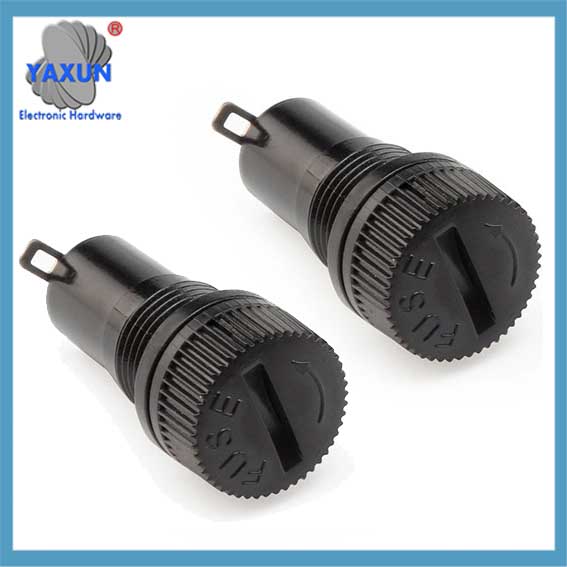

Panel Mount Fuse Holder With Finger Grip Cap For Use With 5 x 20 mm Fuse |

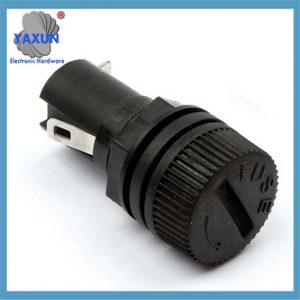

PTF 30 – Fuse Holder 5 x 20 mm 10MOhm 250V 10A Black |

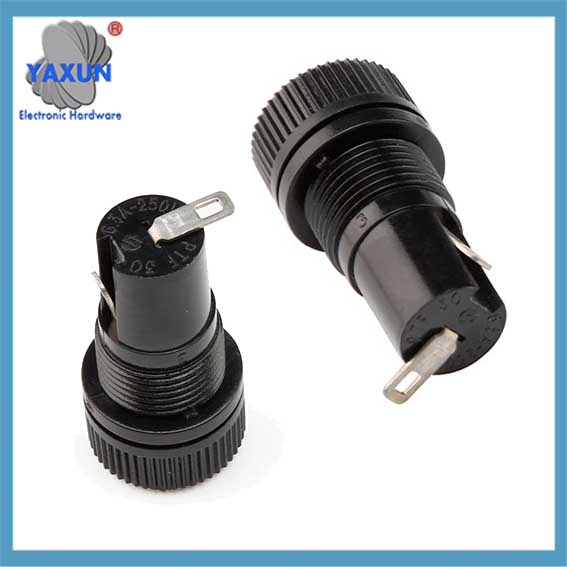

Screw Fuse Holder 5.0x20mm PTF 30 6.3A ITALIAN STL |
| Product Name: | PTF30 Panel Mount Fuse Holder | Rated Current: | 10A |
| Rated Voltage: | 250V | Fuse Size: | 5x20mm 5.2x20mm |
| Housing Material: | Bakelite | Material Feature: | Flame Retarded Plastic |
| Terminal: | Nickel Plated Copper | Konb: | Finger-grip Type |
| Bottom Contact: | With Spring | Color: | Black |
| High Light: | PTF30 5x20MM Glass Ceramic fuse Panel Mount Fuse Holder | ||
Product Description
PTF30 5x20MM Glass Ceramic Black Insurance Tube Socket Panel Mounting Fuse Holder
The PTF30 is a panel mount fuse holder for use with 5x20mm glass fuses. This panel mount fuse holder has a convenient 16 mm diameter finger grip cap that makes installation and removal of 5 X 20mm Glass fuses quick and easy. This short body panel mount fuse holder mounts through a 13mm hole and is secured with a locknut. This panel mount fuse holder is ideal for mounting through 0.8mm to 2.8mm panel walls, is UL rated at 10 amps at 250 volts and has solder connectors. The finger grip cap holds the 5x20mm glass fuses. Fuses are sold separately.
Specification
For 5X20mm
Current: 10A
Voltage: 250V AC
Opening: 13mm
Mounting way: Screw mount
Operation temperature:-30C to +85C
Certificate: UL
Protection against electric shock: I-II
Impulse withstand between terminals: > 4.0 kV
Housing: High temperature resisting flame-retarded plastic
Note: This item is suitable for 5 x 20mm Glass Tube Fuse, but the fuse is not included.
| Electrical | Rated at 10A 250V AC |
| Insulating Boby | Bakelite |
| Konb | Finger-grip fuse extractor type with nickel-plated copper alloy insert. Spring loaded |
| Teminals | Nickel-plated copper alloy, solder type |
| Approvals | UL |
Fearures
•Fuse holder in miniature design
•Panel mounting and solder connection
•Finger-grip and screwdriver slot equipped fuse carrier with screw socket
•Manufactured in flameproof, glass-filled thermoplastic (PPOM)
•Length in front of panel 13 mm
Application
Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment

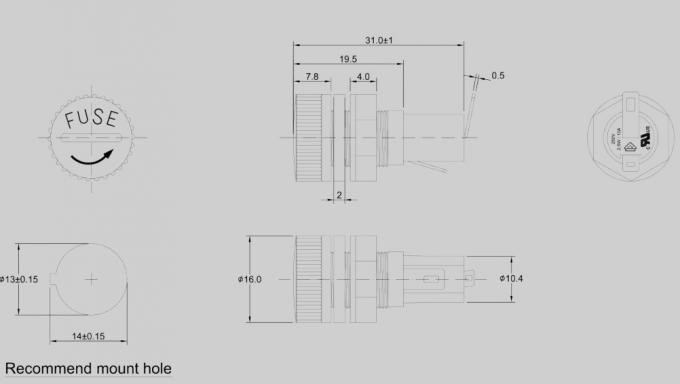

PTF30 5x20MM Glass Ceramic Fuse Holder Drawing
