SCI R3-9 Panel Mount Chassis Fuse Holder for 6x30mm Glass Fuses
SCI R3-9 Panel Mount Chassis Fuse Holder for 6x30mm Glass Fuses 15A 250V 6 * 30 Holder Fuses. Length: appr. 44mm . R3-9 R3-11 R3-12 R3-13 R3-14C R3-8 Fuse box 6*30mm Glass Tube 5*20mm Mini Fuses Holder ; Graphic customization.

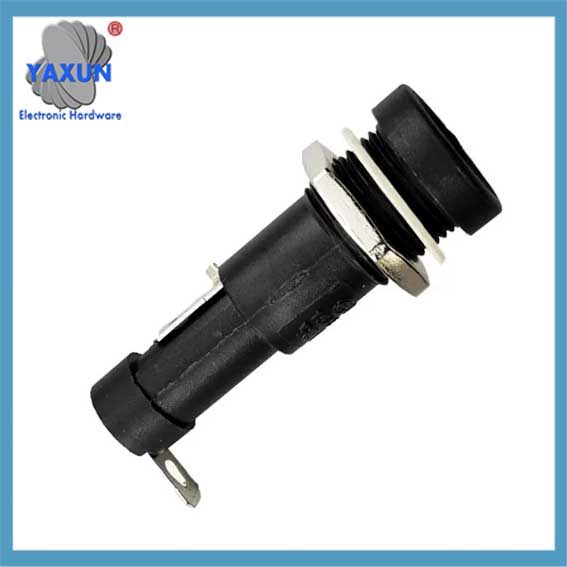

 SCI R3-9 Panel Mount Chassis Fuse Holder Fit Compatible 6x30mm Glass Fuses |

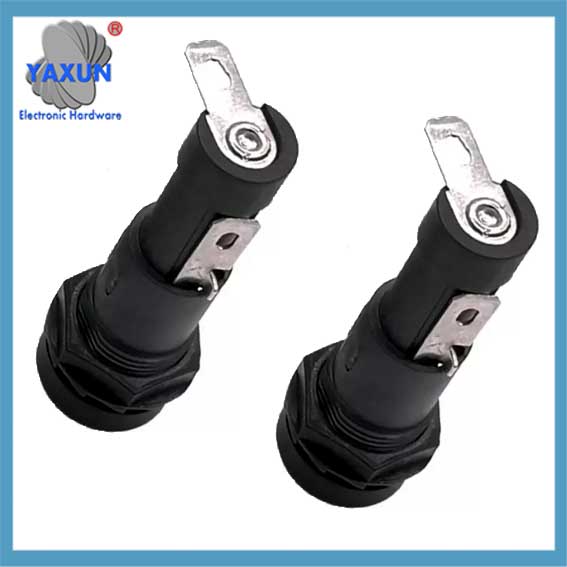

 15A 250V R3-9 Fuse Holder 3AG Panel Mount with 4.8mm Faston Terminal Fuse Block |

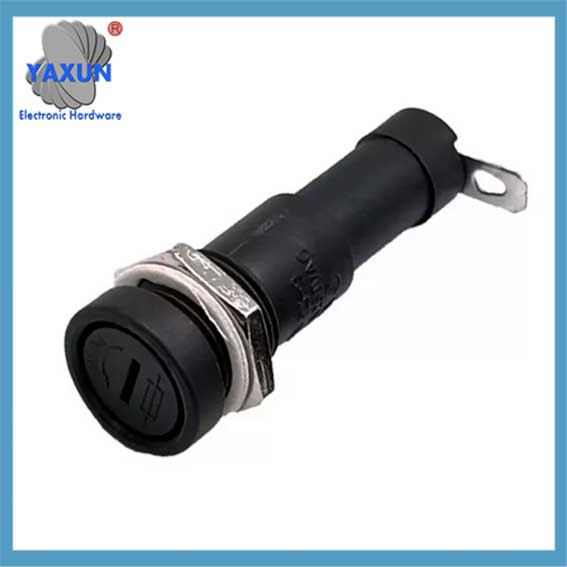

 SCI R3-9 Panel Mount Chassis Fuse Holder for 6x30mm Glass Fuses 15A 250V |
| Item Name: | Fuse Holder | Mount Type: | Panel |
| Part: | R3-9 | Voltage Rated: | 250V AC |
| Current Rated: | 15A | Suitable For: | 6×30 6.3×30 6.3×32 3AG Fuses |
| Body Material: | PBT, UL 94V-0 | Terminal Material: | Tin Plated Brass |
| Terminal Width: | 4.8mm | Cap Type: | Screw Type, Bayonet Type |
| Nut: | Metal Or Plastic | Certification: | UL CSA |
| Application: | Medical, Smart Home Appliance | ||
| High Light: | 15A Chassis Mount Fuse Holder, 3AG Chassis Mount Fuse Holder, 4.8mm Terminal Fuse Holder | ||
Product Description
R3-9 Panel Fuse Holder 15A 250V Screw Bayonet Type 4.8mm Faston Terminal Fuse Holder for 6×30 6.3×30 6.3×32 3AG Fuses
Product Description
The panel mounted fuse holders are convenient for inspection and repair, and no need to disassemble the machine to replace the fuses.
This type of panel mount fuse holders are specially designed for 3AG glass fuses. It can eliminate the possibility of electric shock from the installed fuses. These shockproof fuse holders have a low and short body. It has a finger grip and anti-twist function, which eliminates the interruption of the circuit when the knob is accidentally pressed. Products comply with UL certification.. The maximum voltage of the product is 250VAC, and the maximum rated current of the fuse is 15A.
Features
Applied to 6×30 6.3×30 6.3×32 3AG fuses
| Item Name | R3-9 Fuse Holder |
| Mounting Type | Panel |
| Body Material | PBT, UL 94V-0 |
| Electrical Rating | 250V 15A |
| Cap Type | screw type, bayonet type |
| Nut Type | metal or plastic |
| Terminal type | 4.8mm quick connect |
| Length | 43.8mm |
| Cut-out diameter | 13.2mm |
| MOQ | 1000PCS |
| Application | medical, smart home appliance |
Drawing of R3-9 fuse holder
