Customize and Select 5x20mm, 6x30mm Cylindrical Fuses fuse holder model
fuse holder product models: FH1-12, FH1-2 (15UM), FH1-200C-B, FH1-200C-G, FH1-200CK-B, FH1-200CK -G, FH1-206W, FH1-206Z, FH1-208, FH1-520-M, FH1-520-P, FH1-B-MZ, FH1-S-M-Z, FH201, FH201-13, FH201-2, FH201-9 -M-W, R3-18 30A 250 V, UL ; R3-18 30A 250 V ; R3-41 30A, R3-54, R3-55 20A.
5x20mm FH1-12 Bakelite Fuse Holder AC250V 10A UL CE RoHS HONGJU = R3-12 SCI ; Quantity. YAXUN can customize and select 5x20mm, 6x30mm, 6x32mm cylindrical fuses fuse holder product models: FH1-12, FH1-2 (15UM), FH1-200C-B, FH1-200C-G, FH1-200CK-B, FH1-200CK -G, FH1-206W, FH1-206Z, FH1-208, FH1-520-M, FH1-520-P, FH1-B-MZ, FH1-S-M-Z, FH201, FH201-13, FH201-2, FH201-9 -M-W, R3-18 30A 250 V, UL ; R3-18 30A 250 V ; R3-41 30A, R3-54, R3-55 20A. We provide cost-effective solutions for Fuse Holder, ensuring timely deliveries around the world.

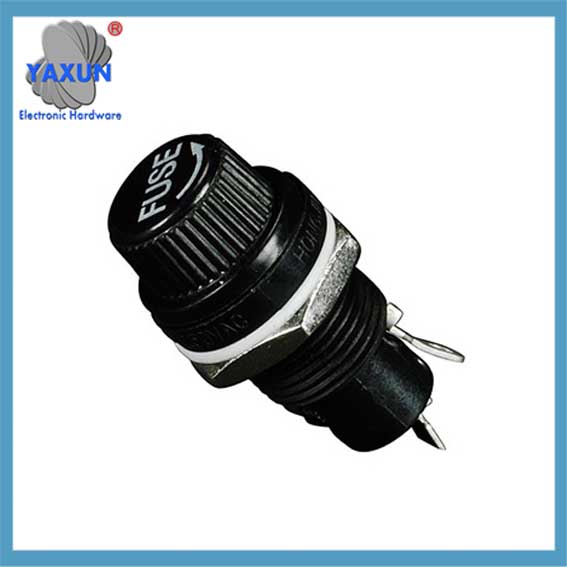

 5x20mm FH1-12 Bakelite Fuse Holder AC250V 10A UL CE RoHS = R3-12 SCI |

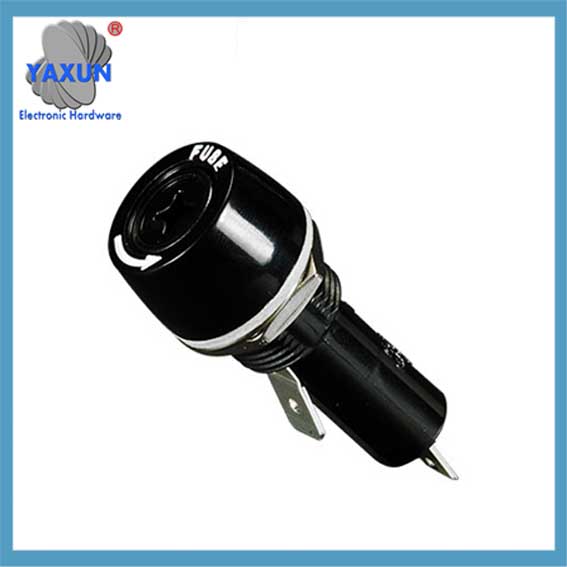

 5x20mm, 6x30mm cylindrical fuses fuse holder – Fuses & Accessories |

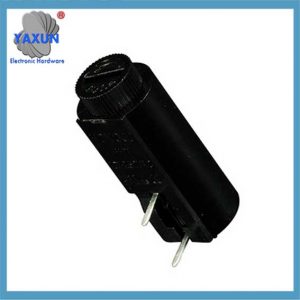

 Fuse Holder PCB Right Angel for 20mm Fuses (10A 250VAC) FH1-206W |
Place of Origin: Guangdong, China
Brand Name: YAXUN
Model Number: FH1-12
Tipo: Fuse Holder
Nome do produto: 10A 250VAC Plastic Fuse Holder For 5*20mm Fuse
Certifications: UL CUL CE
Classificação atual: 10UM
Tensão nominal: 250V AC
Fuse size: 5*20milímetros
Panel Thickness: 4.5mm Max
Cap: Screw Type
Operating Temperature: -10℃~+70℃
Nut material: Matel
Quantidade mínima:1000 pcs
Descrição do produto
UL VDE PTF-35 Panel Fuse Holder 5×20 Fuse Holder 10 Amp 250 Volts UL94V-0 PBT Fuse Block
Descrição do produto
The panel-mounted fuse holder is convenient for inspection and repair, and does not need to disassemble the machine to replace the fuse.
Características
Anti-vibration design eliminates accidental electric shocks for operators
Thin fuse holder body for smooth installation
Straight quick connect terminal, easy to wire
Can be installed on the panel without a screw driver
UL and VDE recognized
Rated 10A 250V
Applied to 5x20mm fuse
Ambient temperature: -20℃~125℃
lnsulation Resistance: >100mOhm at DC 500V
Contact Resistance: 5mOhm at 1A DC
Dielectric Strength: >2000acV 1 minuto
Body Material: PBT, UL94V-0
Terminals: Brass, nickel or tin plated.
Fuse Holder Right Angle ELCOM PBF2 for 5X20mm fuse
Contate-nos
Aguardando seu e-mail, responderemos dentro de 12 horas com informações valiosas que você precisava.
PRODUTOS RELACIONADOS
SCI R3-12 Panel Fuse Block Screw Cap Mount 10A 250VAC for 5.2*20 fuses
R3-12 Single Pole Mini Fuse Holder Screw Cap (China) – 10A 250 VAC Solder Lugs Termination – .196 Inch x .787 Inch Fuse Size – Black Phenolic CSA cURus. We provide cost-effective solutions for Fuse Holder, ensuring timely deliveries around the world. High quality panel mounting fuseholder from SCI with chrome locking nut. Ideal for 5.0 x 20mm fuses; Rated 10A 250V AC; Body and cap moulded from phenolic.
