97 Series Single Pole PCB Auto Reset Thermal Protector Circuit Breakers 10A
97 Series Single Pole PCB Auto-reset circuit breaker is a unipolar and free cycle trip protection device, It is a reliable circuit protection device. Custom 97 series auto reset thermal protector manufacturers and suppliers in China, specialized in providing high quality custom circuit Breaker.
97 Series Single Pole PCB Auto-reset circuit breaker is a unipolar and free cycle trip protection device, It is a reliable circuit protection device. Custom 97 series auto reset thermal protector manufacturers and suppliers in China, specialized in providing high quality custom circuit Breaker.
|

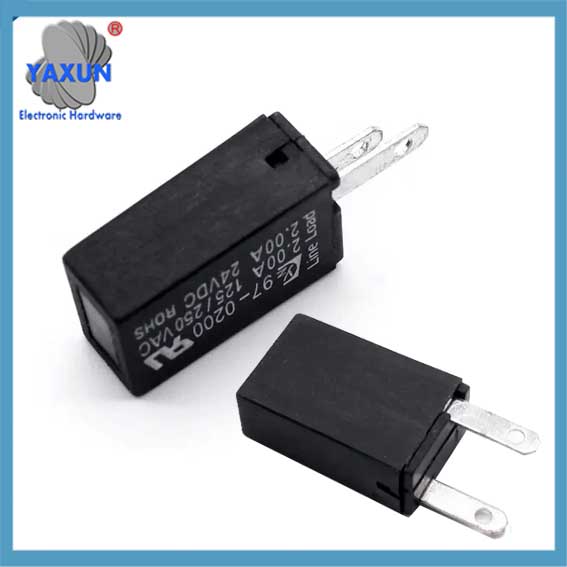

97 series 12V 24V 15A single pole pcb auto reset thermal Overload Protectors |

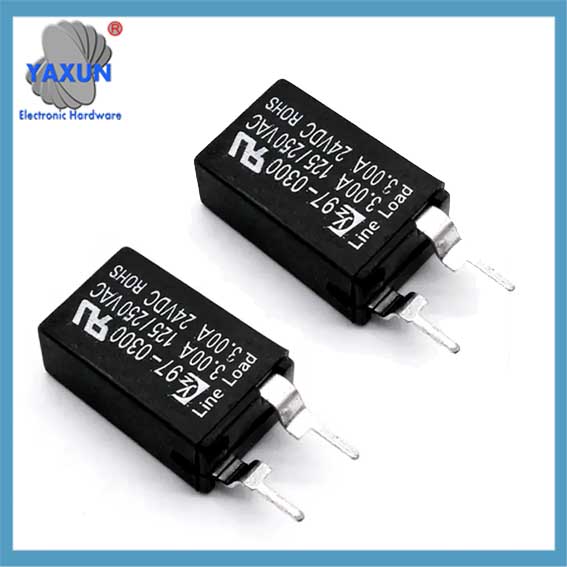

97 Series Single Pole PCB Auto Reset Thermal Protectors |

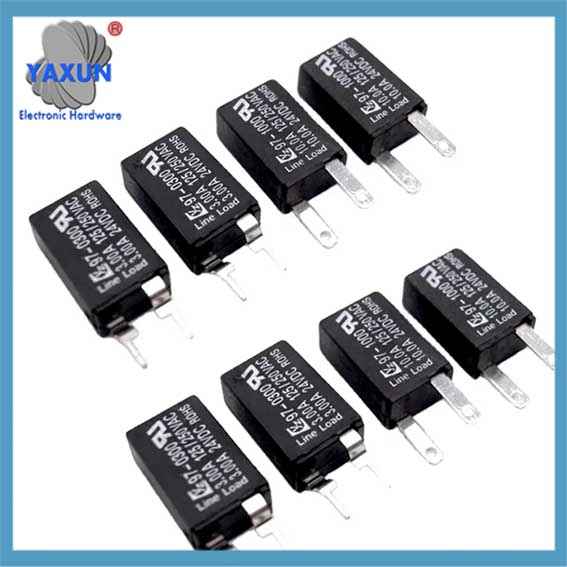

97 Series 10A 3.5A Single Pole PCB auto Reset Thermal Circuit Breakers |
(rating):0.8A-15A
(Input Power):12VDC/32VDC 50-60Hz
(Withstand voltage strength):1500VAC/1min, Leakage Current≤0.5mA
(1500VAC/min,the leaked current is less than≤0.5mA)
(Insulation Resistance):500VDC1Min≥100MΩ
(Rated short-circuit capacity):125VAC/1000A，250VAC/1000A
(Rated breaking capacity): 6 times rated current
(reset): Samodejna ponastavitev
(Reset Time): Within 60s”
Tripping characteristics
(The test environment temperature): 25℃±3℃
(200% of Ratcd Currcnt): 2-50s” Seconds Trip
(150% of Rated Current): Trip within 1 Hour
100% of Rated Current: Hold,No Trip
Place of Origin: Guangdong, Kitajska
Nazivna napetost: 24V
Breaking Capacity : 3kA
Brand Name: YAXUN
Model Number: 97 Series Circuit Breaker
Vrsta: Thermal/Electrical Circuit Breaker
BCD Curve: B
Rated Frequency: 50/60hz
Ime izdelka: Termični odklopnik
Certificiranje: ROHS
Nazivni tok: 0.8A-15A
Rating Voltage: 12/24VDC, 125/250VAC
Color: Črna
Appliance: Transformer, itd
Pole: Single pole
Inc: 125/250VACx200A
Vrsta ponastavitve: Automatic Reset
Material: Plastic-Metal
Nazivna napetost: 24V
Breaking Capacity : 3kA
Brand Name: YAXUN
Model Number: 97 Series Circuit Breaker
Vrsta: Thermal/Electrical Circuit Breaker
BCD Curve: B
Rated Frequency: 50/60hz
Ime izdelka: Termični odklopnik
Certificiranje: ROHS
Nazivni tok: 0.8A-15A
Rating Voltage: 12/24VDC, 125/250VAC
Color: Črna
Appliance: Transformer, itd
Pole: Single pole
Inc: 125/250VACx200A
Vrsta ponastavitve: Automatic Reset
Material: Plastic-Metal

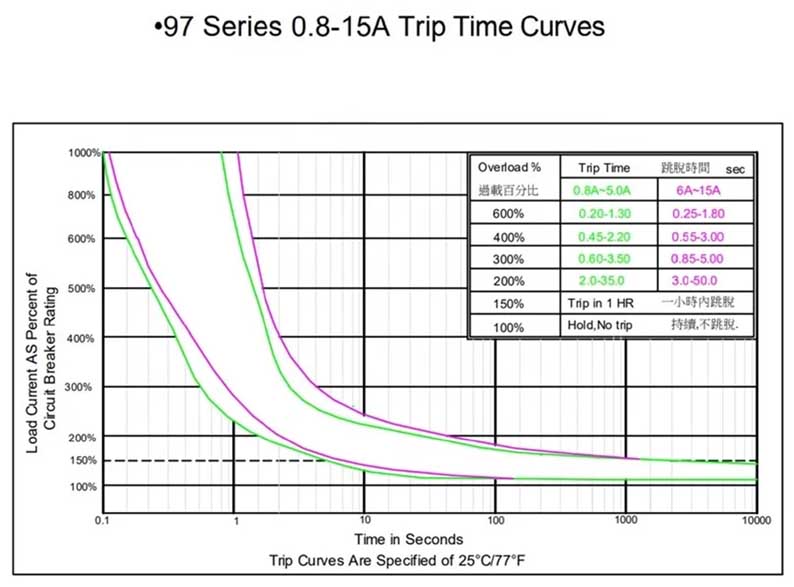

97 Series Thermal Circuit Breaker 0.8~15A Trip Time Curves

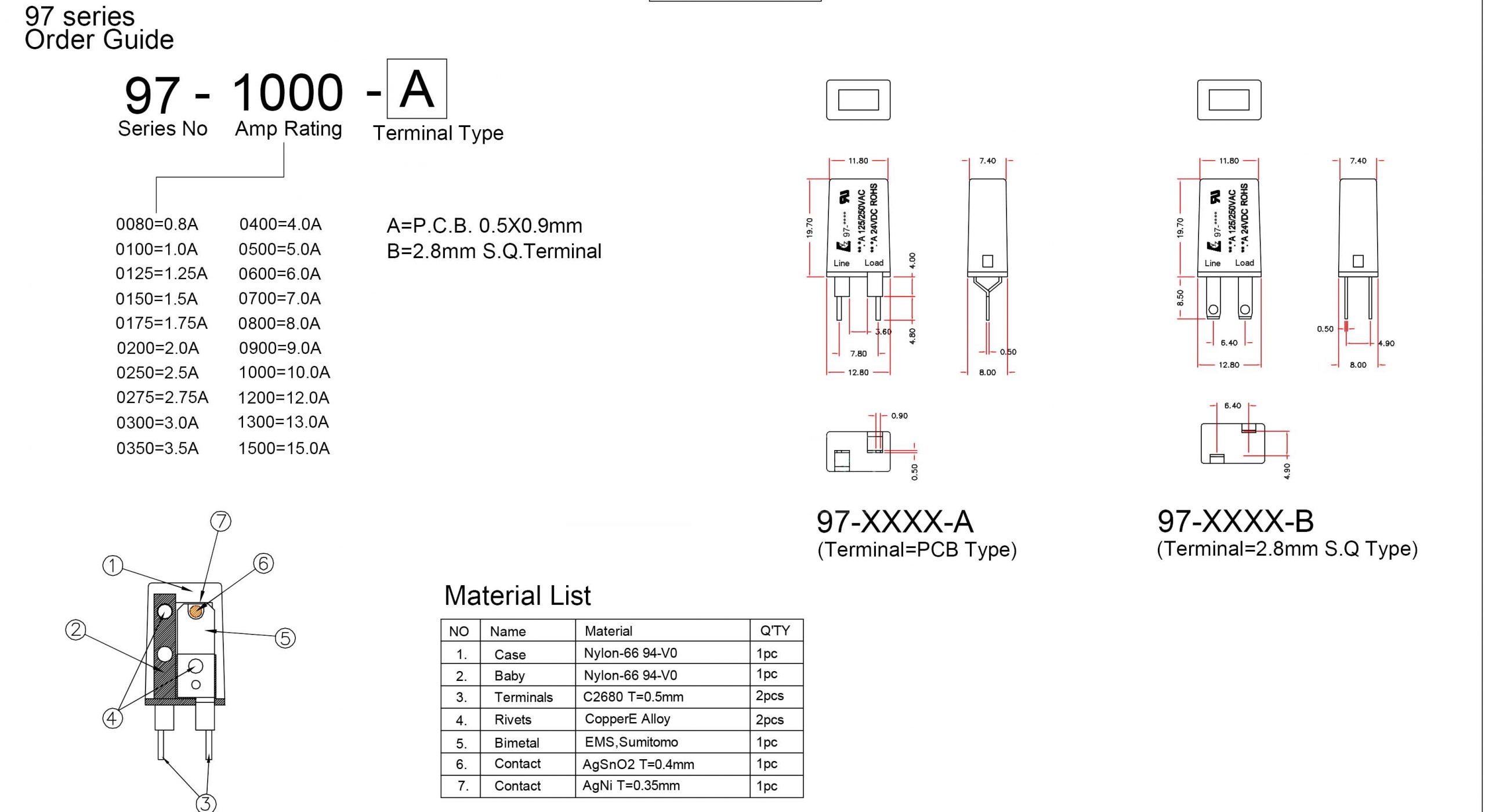

97 Series Auto-Reset-Circuit Breaker Parameters and installation dimensions
Packaging and delivery
Packaging Details: opp bag , poly bag, paper box, carton or customized
Selling Units: Single item
Single package size: 38X27X27 cm
Single gross weight: 10.000 kg
Selling Units: Single item
Single package size: 38X27X27 cm
Single gross weight: 10.000 kg
Lead time
Quantity (pieces): 1 – 1000 > 1000
Lead time (days): 7 To be negotiated
Quantity (pieces): 1 – 1000 > 1000
Lead time (days): 7 To be negotiated
